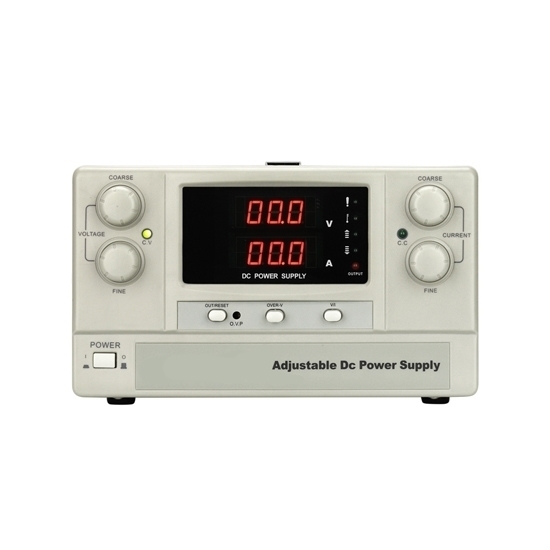

200A 15V 3000W Variable DC Power Supply

0 reviews • Write a review

from

$1,326.39

Ex Tax: $1,326.39

Stock: In Stock
Model: RDDLZ-VDCPS15200K
Weight: 1.00
SKU: RDDLZ-VDCPS15200K

Available Options

Short Description

Input Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

200A 15V variable DC power supply provides a reliable and adjustable power source for various applications. This variable DC power supply with adjustable voltage and current capabilities, coupled with digital control features, serves as a reliable and efficient power source for electronics experimentation and development.

Specification

Model	RDDLZ-JK15200K
Input Voltage	Single Phase 110V or 220V AC (+/- 10%)
Output Voltage Range	0-15V
Output Current Range	0-200A
Output Power	3000W
Frequency	50Hz/60Hz
Adjustable Mode	Pulse Width Modulation (PWM) Type
Transistor Connection Method	Full Bridge
Output Type	Dual
Display	3 digit
Display Accuracy	Output Voltage ±0.5%, Output Current ±0.5%
Efficiency	>86%
Load Regulation (CV)	Stable Voltage ≤0.5%, Constant Current ≤0.5%
Line Regulation (CV)	Stable Voltage ≤0.5%
Ripple Voltage	≤1%
Insulation Resistance	Input-Output: ≥20MΩ
	Input-Chassis: ≥20MΩ
	Output-Chassis:≥80MΩ
Dielectric Strength	Input-Output: AC1500V, 10mA, 1 minute
	Input-Chassis: AC1500V, 10mA, 1 minute
	Output-Chassis: AC1500V, 10mA, 1 minute
Protection	Over Load and Over Voltage Protection
Current Imbalance	≤5% + 0.5A
Operating Ambient	-10℃ to + 45℃/ 85%RH
Storage Ambient	-10℃ to + 80℃/ 80%RH
Overheat Protection Ambient Threshold	70℃ to 80℃
Mean Time Between Failures	≥50000h
Cooling Duct	Internal Cooling Air Duct Forward and Exit
Certification	CE, RoSH
Warranty	12 Months

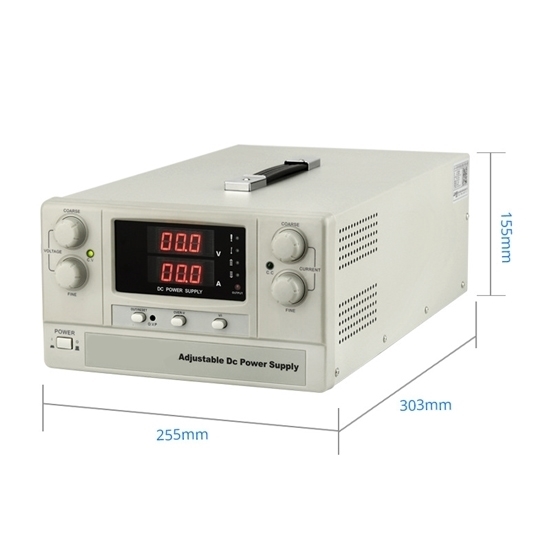

Size	303 (L) x 255 (W) x 155 (H) mm
Weight	13kg

Detail

Tips: How does a variable DC power supply work?

A variable DC power supply regulates and delivers a stable, adjustable voltage to electronic devices. It typically consists of a transformer to convert AC to a desired voltage level, followed by a rectifier to convert AC to DC. The rectified DC may undergo smoothing through capacitors to reduce ripples. The heart of the system is a voltage regulator that maintains a constant output voltage despite fluctuations in input or load. In a variable DC power supply, the regulator's feedback mechanism adjusts the output voltage based on user settings. This adjustment is often facilitated by a potentiometer or digital controls. This capability allows users to tailor the power supply's output to match the specific requirements of different electronic components or circuits during testing or experimentation.
