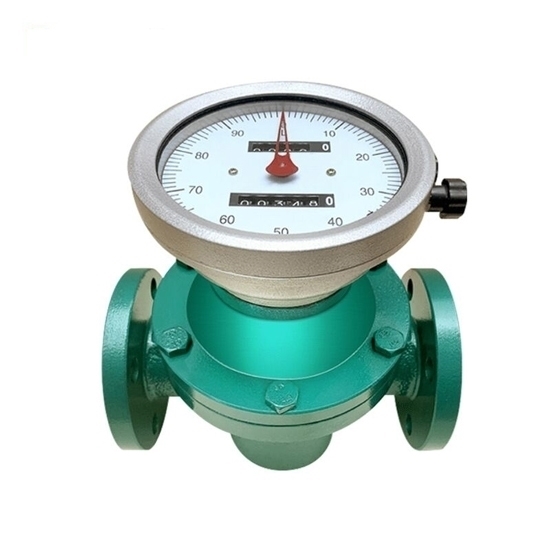

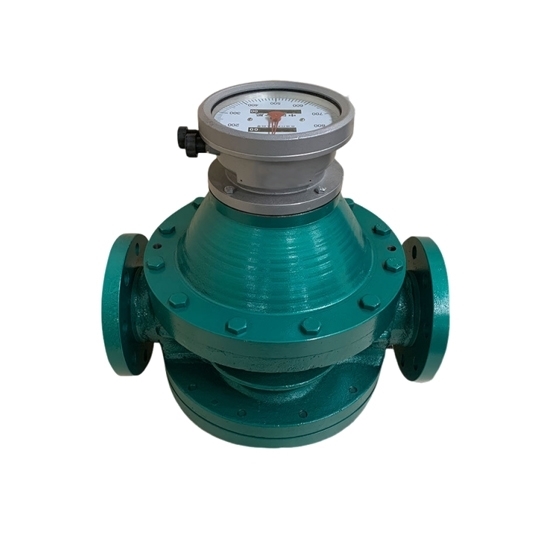

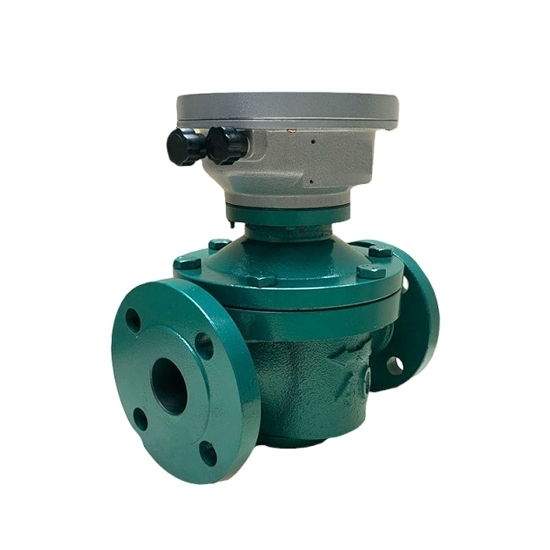

Oval Gear Flow Meter For Diesel/Gasoline, DN10-DN200

0 reviews • Write a review

from

$896.35

Ex Tax: $896.35

Stock: In Stock
Model: RDDLZ-FLOW-OGFL
Weight: 1.00
SKU: RDDLZ-FLOW-OGFL

Available Options

Port Size

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Oval gear flowmeter belongs to a positive displacement flowmeter, in the flow meter is a class of high accuracy. The flow meter uses precision gears to make accurate measurements.

Specification

Model	RDDLZ-LC-E
Display	pointer single time, cumulative intelligent liquid crystal display
Output Signal	output of pulse, 4-20 mA output, RS485
Return to Zero	optional
Measurement Medium	diesel oil, gasoline
Port Size	DN10-200
Measurement Range	0.04-340 m3/h
Accuracy	0.5 grade (default), 0.2 grade (contact us)
Medium Temperature	20°C ~ 100°C
Temperature Range	Conventional Pointer Type: -20℃~+80℃; High Temperature Pointer Type: -20℃~+200℃ Conventional Liquid Crystal Type: -20℃~+60℃; High Temperature Liquid Crystal Type: -20℃~+150℃ Conventional pointer (default), please get in touch with us for other options.
Working Pressure	6.4 Mpa
Working Temperature	-20°C ~ 200°C
Power Supply	DC 12V ~ DC 24V
Protection Level	IP65
Explosion Proof Grade	CT6
Material	cast iron (default), cast steel or stainless steel (contact us)

Features

It is simple to install and easy to maintain.
The scene showed zero back. The pointer indicates the flow, and the double value shows the single and cumulative flow respectively.
The workmanship is exquisite. Multi-process construction, strong pressure resistance.

Dimension (unit: mm)

DN	L	H	B	C	I	D	D1	N	φ
10	150	100	210	120	45	90	60	4	14
15	170	118	226	136	48	95	65	4	14
20	200	150	238	148	53	105	75	4	14
25	260	180	246	156	60	115	85	4	14
40	245	180	271	181	77	145	10	4	18
100	515	418	458	278	131	215	180	8	18
150	540	515	557	377	210	280	240	8	23
200	650	650	624	444	247	335	295	12	23

Detail

Scale Dial: Lightweight volumetric flowmeter with pointer display, word wheel totalizing device, and return-to-zero device.
Gear Rotor: The elliptical gear keeps rotating and discharging the liquid to get the total amount of liquid and instantaneous flow rate.
Flange Connection: It can make the product get better and more convenient maintenance in the later stage, and play the role of sewage, balance pressure.

Installation Diagram

Installation Precautions

Horizontal Installation

Install the oval gear in a horizontal position as much as possible.
Install the meter at the output end of the pump body.
Install a filter in front of the meter to stop the passage of 0.2 mm microliter and prevent the meter from clogging.

Vertical Installation

It is advisable to install a back valve in front of the meter so that only one-way flow is possible in the pipeline to prevent counter loss.
Installation can be from top to bottom left to right.

Application

Tips: Oval Gear Flow Meter Using Tips

Clean the line. The new pipeline should be cleaned before operation, and often then washed with solid flow to remove residual welding chips, dirt, etc. At this time, the front and rear stop valves of the instrument should be closed to let the liquid flow through the bypass pipe. If there is no bypass pipe, install short pipe instead.
Exhaust the gas. Usually after the solid liquid sweeps, there is still a lot of air left in the pipeline. With the pressure operation, the air flows through the positive displacement flowmeter at a higher velocity, and the movable measuring element may run too fast, damaging the shaft and bearing.
