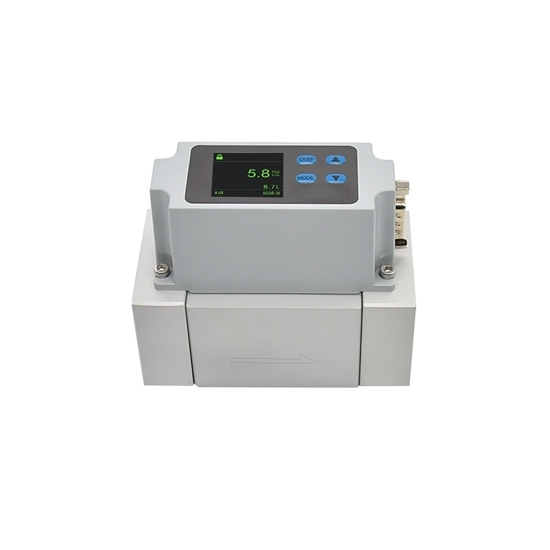

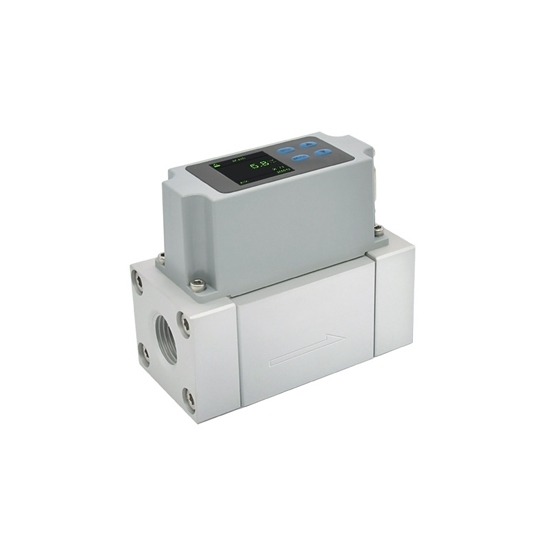

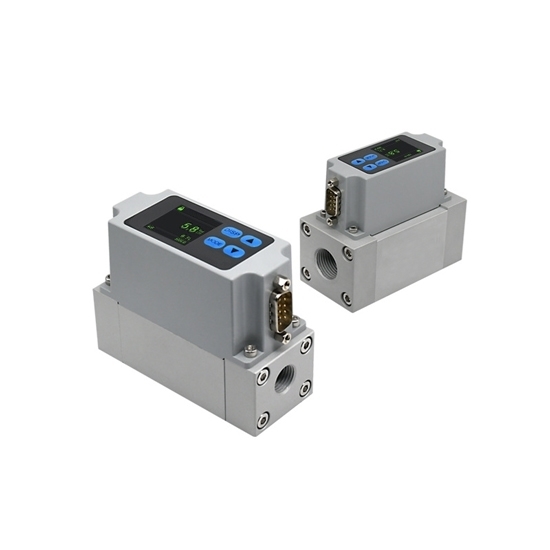

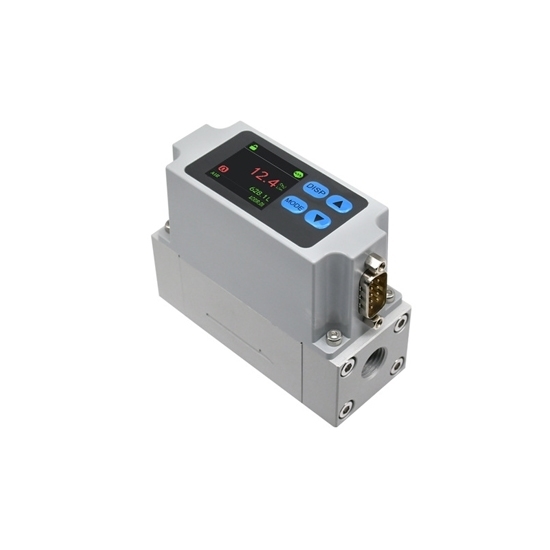

Argon Gas Flow Meter, 0~2/20/100L/min

0 reviews • Write a review

from

$455.63

Ex Tax: $455.63

Stock: In Stock
Model: RDDLZ-FLOW-AMS
Weight: 1.00
SKU: RDDLZ-FLOW-AMS

Available Options

Output Signal

Flow Range

Accuracy

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-performance argon flow meter in hot sale. Integrated mass flow and temperature measurement, standard RS485 Modbus RTU communication, optional 4-20mA/1-5V signal output, multiple ranges from 0-2/20/100L/min, has been widely used in university research, fire fighting, environmental monitoring, tobacco, intelligent agriculture, food, medicine and other industries.

Specification

Model	RDDLZ-AMS1000A02	RDDLZ-AMS1000A01	RDDLZ-AMS1000A03
Flow Range	0~2L/min	0~20L/min	1~100L/min
Signal Output	Default RS485+4-20mA/RS485+1-5V (optional)
Nominal Diameter	G1/4
Communication Method & Protocol	RS485, MODBUS-RTU
Accuracy	±2%RD/±4%RD (optional)
Repeatability	±1%F.S.
Response Time	50ms
Power Supply	External power supply 9 to 24V DC
Display Mode	LCD display
Maximum Working Pressure	0.8MPa
Standard Calibration Gas	Air (25℃, 1 standard atmospheric pressure)
Working Temperature	-10°C～+60°C
Power Consumption	<0.85W
Housing Material	PC
Duct Material	Aluminum
Net Weight	Approx. 330g

Flow Meter Flow Range

Model	Flow Range	Accuracy	Output Signal	Interface
RDDLZ-AMS1000A02	0.02～2L/min	±4%RD (0.02≦x≦0.5L/min) /±2%RD (0.5＜x≦2L/min)	RS485, 4-20mA, 1-5V	G1/4
RDDLZ-AMS1000A01	0.2～20L/min	±4%RD (0.2≦x≦5L/min) /±2%RD (5＜x≦20L/min)	RS485, 4-20mA, 1-5V	G1/4
RDDLZ-AMS1000A03	1～100L/min	±4%RD (1≦x≦25L/min) /±2%RD (25＜x≦100L/min)	RS485, 4-20mA, 1-5V	G1/4

Dimension (unit: mm)

Structure

Interface Definition

Pin	Lead Wire Color	Definition
1	Orange	External output 1
2	Brown	Analog output
3	Green	RS485B
4	Yellow	RS485A
5	Red	Power supply cable
6	Black	GND
7	Blue	GND
8	Purple	GND
9	Gray	External output 2
/	Transparent Heat Shrink Sleeve	Shielded cable

Piping Methods

For the air ducts connected to the inlet and outlet ports of the AMS1000 series, please reserve a straight portion of the air duct according to the inlet straight length ≥12.5cm and the outlet straight length ≥6.25, otherwise the accuracy may be shifted by 3% F.S. or more.

The sensor duct of the argon flow meter is recommended to be installed parallel or perpendicular to the horizontal plane. When the sensor is mounted parallel to the horizontal plane, the sensor interface must be above the sensor duct and parallel to the horizontal plane.

Application

Tips: Argon gas flow meter common problems and solutions

Common Problems	Solution
Inaccurate flow rate, too big or too small or even no flow.	1. compliance with specification takeover requirements.
	2. whether the incoming gas meets the requirements. 3. whether the gas pressure meets the minimum 0.1Mpa driving standard.
	3. whether the air pressure of the gas supply reaches the minimum 0.1Mpa driving standard. 4. whether the installation environment is free from vibration or interference.
	4. the installation environment is free of vibration or interference.
Front and rear piping requirements	The inlet of the flow meter needs to be connected to a long straight pipe, refer to the specification for details of installation, and the installation environment should be free from vibration and electromagnetic interference.
Wide variation of values before and after the same pipe	Due to the different placement, the pressure resistance is different, resulting in different flow rate readings.
What type of gas can the flow meter pass through?	Gas flow meter through the gas can only be a single gas, mixed gases can not be detected, and the gas needs to be dry and clean, can not carry moisture and oil.
