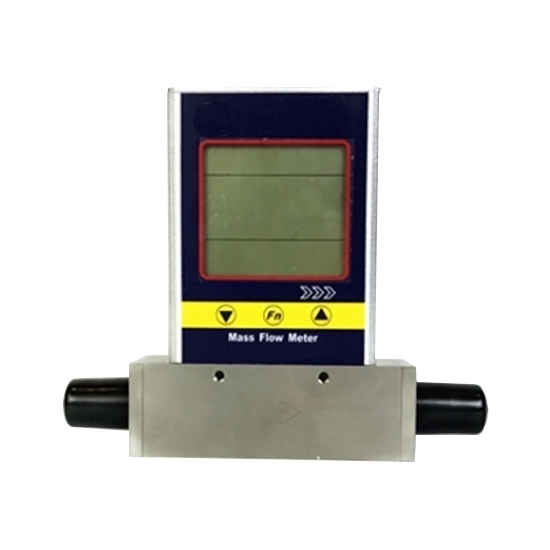

Gas Mass Flow Meter, Air/N2/O2/CO2, 0~50/120/300/800L/min

0 reviews • Write a review

from

$2,046.79

Ex Tax: $2,046.79

Stock: In Stock
Model: RDDLZ-FLOW-MF5000
Weight: 1.00
SKU: RDDLZ-FLOW-MF5000

Available Options

Short Description

Output Signal

Explosion Proof

Flow Range

Gas

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Gas mass flow meter for high flow measurement. Optional flow range 0~50/120/300/800L/min, working pressure 1.5 MPa, output signal 4-20mA/RS485/pulse 0~5VDC for selection, explosion proof type is available. Suitable gas air, nitrogen (N₂), oxygen (O₂), Argon, carbon dioxide (CO₂).

Specification

Model	RDDLZ-MF5000
Flow Range (optional)	0~15 L/min
	0~50 L/min
	0~120 L/min
	0~300 L/min
	0~800 L/min
Applicable Gas (optional)	Air
	Nitrogen (N₂)
	Oxygen (O₂)
	Argon (Ar)
	Carbon Dioxide (CO₂)
	Methane (CH4)
Accuracy	± (1.5 + 0.5 F.S.)%
Repeatability	0.5%
Power Supply	DC 8~24V (50mA)
Output Signal (optional)	4-20mA, RS485, pulse 0~5VDC
Pressure Rating	1.5 MPa
Working Temperature	-20°C~60°C
Humidity	<95% RH (no condensation)
Pin-out	DB9
Calibration	Air @ 2°C, 101.325 kPa
Hazardous Rating	ExiaIICT4

Gas Mass Flow Meter Dimension (unit: mm)

Flow Range	DN	D	L	H	H1	W	d	C
0~15 L/min	3.0	1/8 inch	118	144	28	38	Ф 3	36
0~50 L/min	6.0	1/4 inch	124	144	28	38	Ф 6	36
0~120 L/min	8.0	3/8 inch	124	151	35	38	Ф 8	50
0~300 L/min	12.0	1/2 inch	150	156	40	40	Ф 12	50
0~800 L/min	19.0	3/4 inch	182	156	40	40	Ф 19	70

Detail

Working Principle

The MEMS calorimetric sensor is installed at the flow channel wall forming a plate that serves as anadditional flow conditioner from the boundary laver configuration resulting in a laminar flow, The massflow measurement is established as the fluid carries heat away from the heater causing the redistribution ofthe temperature field. Accurate flow rate is obtained by calibration with the standard fluid at the presetconditions.

Tips: How to choose the right gas mass flow meter?

When choosing a gas mass flow meter, the following factors need to be considered:

First is the measuring range, to ensure that the flow meter can cover the range of the actual gas flow.
Second is the type of gas. Differences in the density of different gases may affect the measurement accuracy, so you need to confirm the type of gas that the flow meter is adapted to when choosing.
Finally, the installation location of the device and the environmental conditions are also very important, especially the temperature, pressure and the humidity of the gas, which may affect the performance of the gas flow meter. After understanding these needs, you can choose the right brand and model.
