Digital Turbine Flow Meter, 1 Inch/2 Inch/3 Inch (DN25-DN80)

0 reviews • Write a review

from

$120.25

Ex Tax: $120.25

Stock: In Stock
Model: RDDLZ-FLOW-K24
Weight: 1.00
SKU: RDDLZ-FLOW-K24

Available Options

Short Description

Size

Material

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

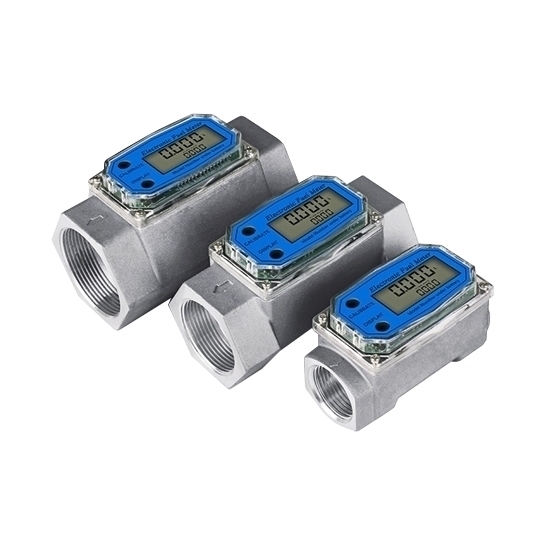

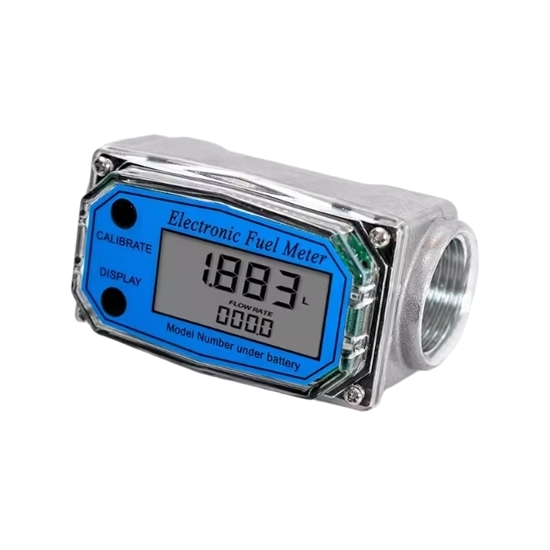

1 inch/1.5 inch/2 inch/2.5 inch/3 inch digital turbine flow meter can display instantaneous flow and accumulated total flow, designed for accurate flow monitoring of various liquids, including diesel, gas, kerosene, methanol, and water. Stainless steel or aluminum alloy turbine-type flow meters can be selected according to your applications.

Note: 2-1/2 inch and 3 inch turbine flow meters are available in aluminum alloy only.

Specifications

Model	RDDLZ-K24
Applicable Media	Diesel, Gas, Kerosene, Methanol, Water, etc.
Nominal Diameter	1 inch, 1.5 inch, 2 inch, 2.5 inch or 3 inch
Material	Stainless steel (1/1.5/2 inch), aluminum alloy (1/1.5/2/2.5/3 inch)
Connection Method	Thread
Unit of Measurement	QTS, PTS, L, GAL, m³
Measurement Accuracy	±1%
Maximum Working Pressure	0.6Mpa
Working Temperature	-25°C~+70°C
Single Measurement Range	9999
Cumulative Measurement Range	29999999

Size Selection

Nominal Diameter	Minimum Flow	Maximum Flow	Weight
1 inch (DN25)	10L/min	100L/min	0.35kg
1-1/2 inch (DN40)	40L/min	500L/min	0.6kg
2 inch (DN50)	60L/min	1000L/min	0.85kg
2-1/2 inch (DN65)	80L/min	1000L/min	1.1kg
3 inch (DN80)	80L/min	1000L/min	0.9kg

Feature

High-definition liquid crystal display readings are clear, intuitive and eye-catching, easy to adjust.
Easy to operate simple and no trouble, easy to read and easy to operate, at a glance.
304 stainless steel meter body, easy maintenance, turbine rotation is stable, flowmeter body weight is light.
High-performance turbine durable anti-wear, corrosion resistance, hardness.

Dimension (unit: mm)

Details

Tips: What can am electronic fuel meter do?

An electronic fuel meter, also known as a digital fuel flow meter, is a type of flow meters used to measure the quantity of fuel flowing through it in various industrial and automotive applications. It provides accurate and efficient tracking of fuel consumption.

The primary function of an electronic fuel meter is to measure and record the volume or flow rate of fuel in real-time. This information can be invaluable for a range of purposes. For instance, in the transportation industry, it helps monitor fuel consumption, which is crucial for cost control and efficiency. It also assists in tracking fuel usage for billing and taxation purposes.

Furthermore, electronic fuel meters can offer additional features such as data logging, flow rate alarms, and communication capabilities. They can be integrated into fuel management systems to ensure precise monitoring, control, and reporting of fuel consumption. In summary, electronic fuel meters play a vital role in accurately measuring fuel flow, helping to manage resources efficiently, reduce waste, and ensure the smooth operation of machinery and vehicles.
