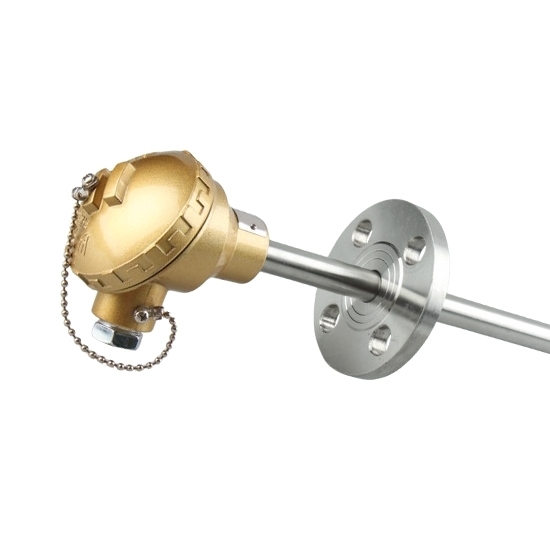

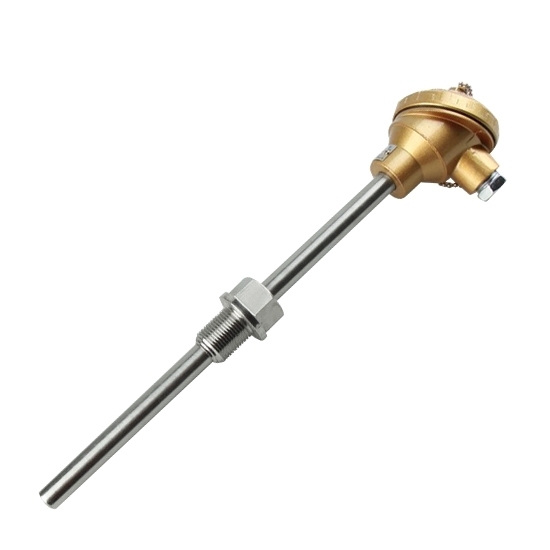

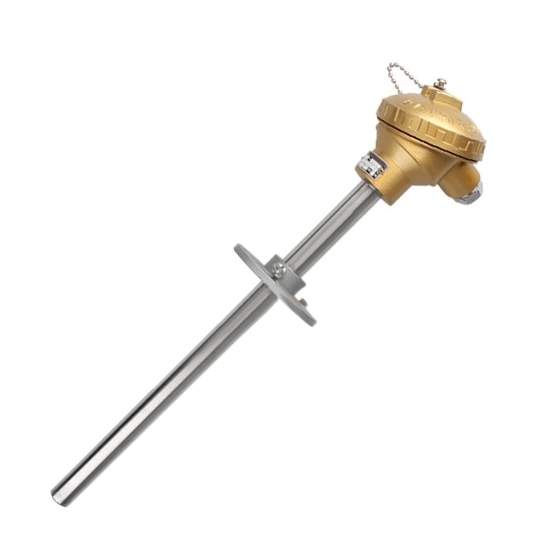

Explosion Proof Resistance Temperature Detector Sensor, PT100

0 reviews • Write a review

from

$139.69

Ex Tax: $139.69

Stock: In Stock
Model: RDDLZ-RTD-WZP240
Weight: 1.00
SKU: RDDLZ-RTD-WZP240

Available Options

Line Type

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The explosion proof resistance temperature detector sensor has a temperature range of -200~+500℃ and a thermal response time of 2s. It is made of 304 stainless steel and is not easy to corrode. It can be used in the power industry, medical equipment, aquaculture, petrochemicals, sewage treatment, industrial testing and other fields.

Specification

Model	RDDLZ-RTD-WZP240
Temperature Range	-200~+500℃
Measurement Accuracy	±(0.15+0.002∣t∣)
Type of Probe	Pt100
Line	2 wire/3 wire
Thread Specification	27*2 regular thread (please contact us if you need other specifications)
Product Diameter	16mm (please contact us if you need other lengths)
Tube Material	304 stainless steel
Thermal Response Time	2s

Note: The measured absolute value of temperature is t.

Features

Multiple line options: Both two-wire and three-wire systems are available. The lines are clearly distinguished and the measurement is stable.
Stainless steel material: 304 stainless steel is used, which is not easy to corrode and has a longer service life.
High mechanical strength: The explosion-proof RTD sensor has good thermal conductivity and shock resistance, and the surface is polished and waterproof and dustproof.

Details

Installation

Application

Tips: The difference between two-wire and three-wire RTD sensors

Two-wire: Two-wire RTD sensors use only two wires to simultaneously complete the excitation current transmission and voltage measurement. They have a simple structure and the lowest cost, but their measurement results include lead resistance, which can cause the temperature reading to be higher. Since the influence of wire resistance cannot be eliminated, the two-wire system has low accuracy and is only suitable for short-distance measurements or occasions with low accuracy requirements, such as temporary experimental tests or low-cost applications.
Three-wire: Three-wire RTD sensors offset the influence of lead resistance by adding a compensation wire, two of which are of the same material and length for excitation current, and the third for voltage measurement. This design uses a bridge circuit or algorithm to eliminate most of the lead resistance errors, significantly improving measurement accuracy while maintaining a reasonable cost. The three-wire system is the most commonly used configuration in the industrial field, suitable for medium-distance transmission and scenarios requiring high reliability, such as PLC, DCS control systems, etc.
