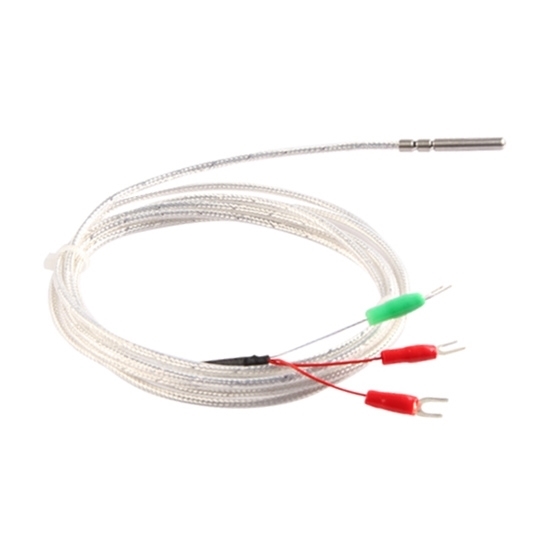

RTD Sensor Probe, Pt100, 3 Wire

0 reviews • Write a review

from

$74.68

Ex Tax: $74.68

Stock: In Stock
Model: RDDLZ-RTD-PB3W
Weight: 1.00
SKU: RDDLZ-RTD-PB3W

Available Options

Cable Length

Model Selection

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Pt100 RTD sensor probes with 4 kinds of dimension can be used in different temperature measurement applications. 3 wire Pt100 probes are usually used with temperature controller, signal isolator and paperless recorder to form a temperature monitoring system.

Specification

Model *	RDDLZ-RTD-WZP-PT100-1	RDDLZ-RTD-WZP-PT100-2	RDDLZ-RTD-WZP-PT100-3	RDDLZ-RTD-WZP-PT100-4
Shipping weight	0.5kg
Probe material	Stainless steel	Brass	Stainless steel	Stainless steel

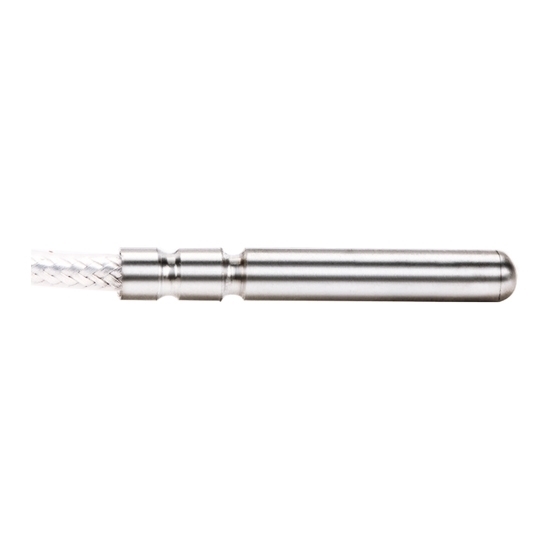

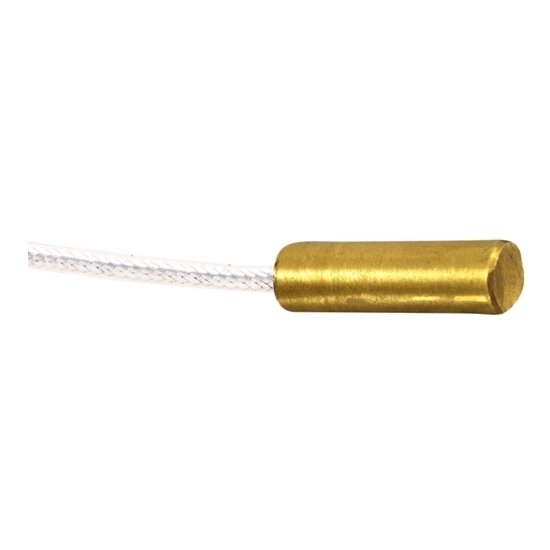

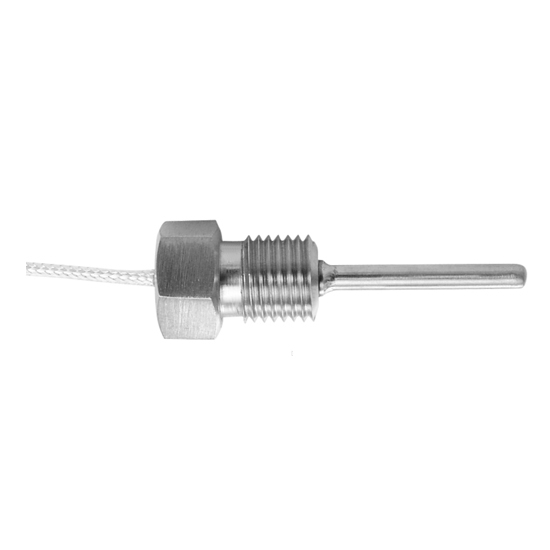

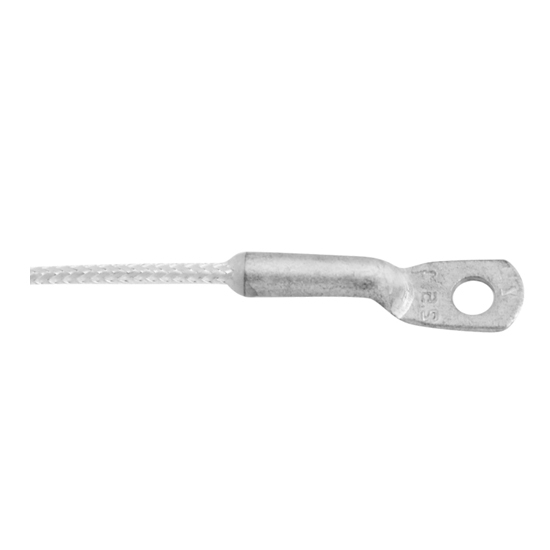

Probe dimension	Length: 30mm Diameter: 4mm	Length: 25mm Diameter: 8mm	Length: 10mm Maximum width: 8mm Hole diameter: 4mm	Length: 50mm Diameter: 6mm Thread: M20*1.5mm
Cable material	PTFE corrosion-resistant and silver-plated wire
Cable length *	1m, 2m, 3m, 4m, 5m, customizable
Type of probe	Pt100
Measuring range	-50~+200℃ (-58~+392℉)
Temperature coefficient	TCR=3850ppm/k
Accuracy	Class A: ±(0.15+0.002\|T\|), T is the actual measurement temperature.
Stability	R0 drift≤0.04% (500℃/932℉, after 1000 hours)
Anti-vibration	≥40g acceleration (10~2000Hz)
Insulation resistance	＞100MΩ (20℃/68℉), ＞2MΩ (500℃/932℉)
Natural coefficient	0.4K/mW (0℃/32℉)
Application	Oven, water tank, laboratory, various equipment needing temperature measurement	Temperature measurement on the solid surface and end face of motor or boiler	Motor or bearing surface temperature measurement	Pipelines, containers, various equipment needing temperature measurement

Note: * denotes optional parameters, you can select parameters in drop-down lists to finish your order. Some customizable parameters can't be selected from the lists directly, please contact customer service staff for further communication.

Feature

Enhanced Signal Stability: Silver-plated shielding cable provides better signal clarity and stronger anti-interference performance than standard shielded wires.
Low-Resistance U-Type Terminals: U-type connectors reduce terminal resistance, helping improve temperature measurement accuracy.
Thicker Conductors for Accuracy: 2mm diameter wires offer lower resistance compared to 1mm wires, effectively minimizing measurement error.
Durable Stainless Steel Construction: RTD sensor probe made from 304 stainless steel for excellent high-temperature resistance and corrosion protection, ensuring long service life.

Detail

Application

Tips: RTD sensor probe for air or object surface temperature measurement

Compared to the RTD sensor, thermocouples can operate at much higher temperatures and respond faster. However, the voltage signal generated by a thermocouple is low and may require additional amplification, which is a disadvantage in environments with high electrical noise. Unlike thermocouples, RTD sensors do not require reference points, ice baths, or temperature compensation circuits. RTD sensor has a very low thermal mass, so it provides true surface temperature measurement value and response times as fast as 50ms.
When using an RTD sensor probe to measure the air temperature of a pipeline, the front end of the air temperature probe must be perpendicular to the measured pipeline and fully contact the measured air. The contact surface between the surface RTD probe and the measured object must be flat, otherwise, the measurement result will be affected during the measurement.
