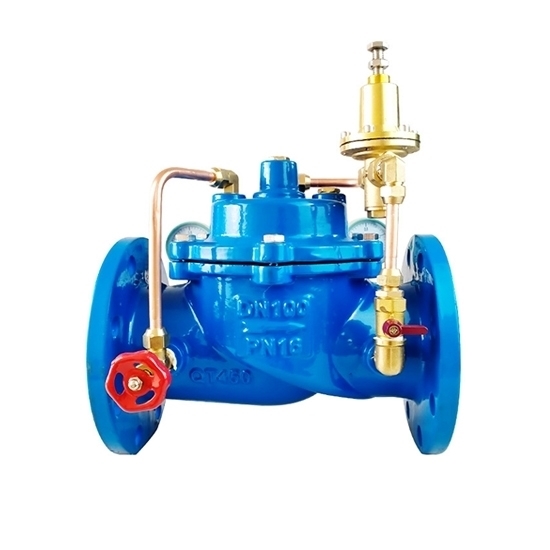

3 Inch Pilot Operated Pressure Relief Valve, DN80

0 reviews • Write a review

from

$504.23

Ex Tax: $504.23

Stock: In Stock
Model: RDDLZ-POPRV-DN80
Weight: 1.00
SKU: RDDLZ-POPRV-DN80

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pressure relief valve cannot be used for drinking water.

RDDLZ pressure relief valve with DN80 nominal diameter, nominal pressure is 16 MPa, and the sealing pressure is 1.76 MPa. The water pressure reducing valve has the advantages of good sealing performance, easy installation and maintenance, and long service life.

Features

Pilot-operated valves for limiting a system pressure
Operation using proportional solenoid
Maximum pressure limitation
Valve and control electronics from a single source
Little manufacturing tolerance of the command value
Pressure characteristic curve

Details

Specification

Model: RDDLZ-200X-DN80
Size: 3 inch
Nominal diameter: DN80
Structural form: Diaphragm type
Pressure rating: PN16
Shell test pressure: 2.4 MPa
Sealing test pressure: 1.76 MPa
Ambient temperature: ≤80℃
Connection method: Flange
Medium: Water
Valve body material: Ductile iron QT450

Dimension

Dimension	L	D2	D1	x-n	T	F	D
DN80	275mm	200mm	160mm	8-φ19	20mm	3mm	132mm

Installation

Notes

It is recommended to install an exhaust valve on the top of the riser to make the pressure reducing valve work more smoothly.
Before installing the pressure relief valve, check the valve for unusual items and be sure to flush the pipeline.
Installation method: Horizontal or vertical installation, single valve set.

Pressure Relief Valve Application

Tips: What is difference between pressure relief valve and pilot-operated pressure relief valve?

Process pressure exerts an opposing force on the disc. When the process pressure force on the disc overcomes the opposing spring force, the disc lifts and the valve begins to relieve pressure. In contrast, a pilot operated valve uses process pressure to keep the valve closed until set pressure is reached.
