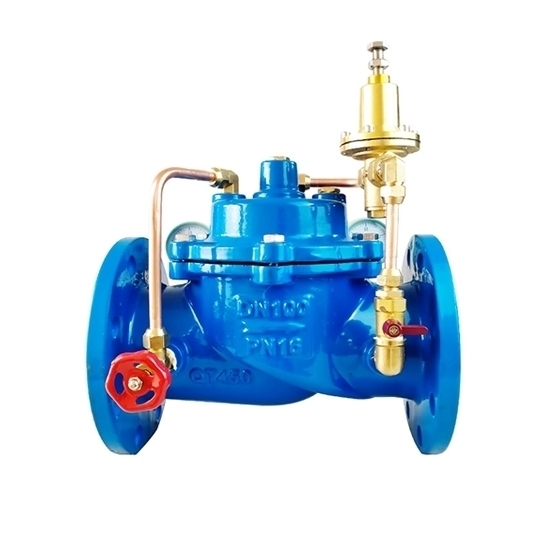

4 Inch Pilot Operated Pressure Relief Valve, DN100

0 reviews • Write a review

from

$565.46

Ex Tax: $565.46

Stock: In Stock
Model: RDDLZ-POPRV-DN100
Weight: 1.00
SKU: RDDLZ-POPRV-DN100

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This pressure relief valve cannot be used for drinking water.

Buy a pilot operated pressure relief valve with DN100 nominal diameter, nominal pressure is 16 MPa, which is made of ductile iron QT450 makes it more durable. The water pressure reducing valve is widely used in high-rise buildings, areas with excessive water pressure in urban water supply networks, mines and gas pipelines, etc.

Features

Pilot-operated valves for limiting a system pressure
Operation using proportional solenoid
Maximum pressure limitation
Valve and control electronics from a single source
Little manufacturing tolerance of the command value
Pressure characteristic curve

Details

Specification

Model: RDDLZ-200X-DN100
Size: 4 inch
Nominal diameter: DN100
Structural form: Diaphragm type
Pressure rating: PN16
Shell test pressure: 2.4MPa
Sealing test pressure: 1.76MPa
Ambient temperature: ≤80℃
Connection method: Flange
Medium: Water
Valve body material: Ductile iron QT450
Weight: 20kg

Dimension

Dimension	L	D2	D1	x-n	T	F	D
DN100	306mm	220mm	180mm	8-φ19	20mm	3mm	156mm

Installation

Notes

It is recommended to install an exhaust valve on the top of the riser to make the pressure reducing valve work more smoothly.
Before installing the pressure relief valve, check the valve for unusual items and be sure to flush the pipeline.
Installation method: Horizontal or vertical installation, single valve set.

Pressure Relief Valve Application

Tips: What are the advantages of a pilot-operated pressure relief valve?

Like other pressure relief valves (PRV), pilot-operated relief valves (PORV) are used for emergency relief during overpressure events (e.g., a tank gets too hot and the expanding fluid increases the pressure to dangerous levels).

The smaller package on the larger pipe sizes.
More options for control.
Seals more tightly as the system pressure approaches but does not reach set pressure.
The control pilot can be mounted remotely.
Some designs allow for changes in orifice size within the main valve.
The PORV can be used in engines.
Higher Operating-to-Set Pressure ratio.
