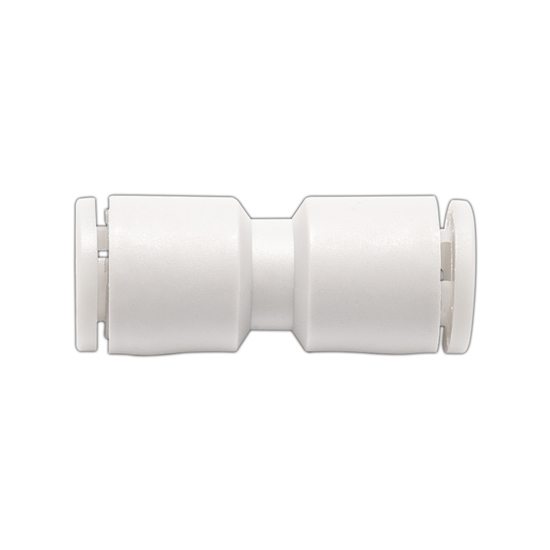

Water Hose Quick Connector, Intubation Type

0 reviews • Write a review

from

$3.21

Ex Tax: $3.21

Stock: In Stock
Model: RDDLZ-QC-I01
Weight: 1.00
SKU: RDDLZ-QC-I01

Available Options

Short Description

Input Cannula Diameter

Output Cannula/Thread Diameter (03)

Output Cannula/Thread Diameter (04)

Output Cannula/Thread Diameter (06)

Output Cannula/Thread Diameter (23)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

High-quality water hose quick connector is a garden hose quick connect. It is intubation type and has 03/04/06/23mm input cannula diameters. Faster connectors are quick and easy to connect and disconnect. Quick connect is perfect for garden hoses, watering equipment for pressure washers, RVs, campers, faucets, lawn sprinklers, spigots, taps and other garden accessories.

Specifications

Model	RDDLZ-KJH
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)		Model	Weight (g)
①	②	Model	Weight (g)
Ø3		RDDLZ-KJH03-00	1.4
Ø3.2		RDDLZ-KJH23-00	1.4
Ø4		RDDLZ-KJH04-00	1.7
Ø6		RDDLZ-KJH06-00	2.5
Ø3	Ø4	RDDLZ-KJH03-04	1.6
Ø3.2	Ø4	RDDLZ-KJH23-04	1.6
Ø4	Ø6	RDDLZ-KJH04-06	2.2

Tips: Quick connector functions

Exchange function: pneumatic pressure, hydraulic tools, cylinders, hydraulic cylinders, metal mold-related machinery appurtenances.
Maintenance function: cooling device of a computer, cylinder of die-casting machine maintenance and repair.
Testing function: testing of vacuum, pressure resistance, leakage, operation, etc.
Conveying function: conveying and handling of bolts, nuts and other solids as well as conducting function.
Filling function: inert gas, nitrogen, PG, carbonic acid.
Connection function: fixed parts of fishing rods and pocket laser records, connection for mobile work and uses other than fluid transfer.
