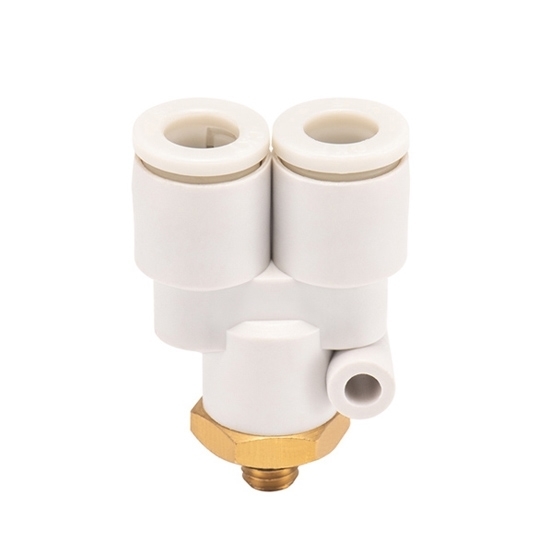

Air Line Quick Connector, M Type

0 reviews • Write a review

from

$3.42

Ex Tax: $3.42

Stock: In Stock
Model: RDDLZ-QC-M04
Weight: 1.00
SKU: RDDLZ-QC-M04

Available Options

Short Description

Input Cannula Diameter

Output Cannula/Thread Diameter (03)

Output Cannula/Thread Diameter (04)

Output Cannula/Thread Diameter (06)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Buy an air line quick connector at a low price. It is also a water/air quick connect fitting, perfect for garden hoses, watering equipment for pressure washers, RVs, campers, faucets, lawn sprinklers, spigots, taps and other garden accessories. M-type hose connects are well sealed, and can quickly connect to the hoses without tools.

Specifications

Model	RDDLZ-KJU
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Ø4	RDDLZ-KJU04-M5	6.8
Ø4	RDDLZ-KJU04-01S	9.2
Ø6	RDDLZ-KJU06-M5	9.4
Ø6	RDDLZ-KJU06-01S	11.6

Tips: What can the quick connector do?

RDDLZ quick connectors are widely used in the automotive industry, spare parts industry, new energy vehicles, new energy batteries, instrumentation, air conditioning and refrigeration, water heaters, industrial automation and other industries, mainly for gas tightness testing, sealing testing, industrial automation gripping and other fast sealing connections. Keep the sealed state during the test and pass air or other fluids for testing. After the test is completed, loosen the workpiece, remove the joint and prepare for the next. The next sealed connection is made.

Quick connectors are used for industrial automated gripping, mainly with pneumatic quick contactor models, where the air joint is filled with driving air pressure, the seal expands, grips the workpiece, and performs automated gripping. After the gripping is completed, the driving air pressure is removed and the connector releases the workpiece. Return to the original position to continue the next gripping.

There are many other advantages of the quick contactor, which need to be matched according to the actual use environment.
