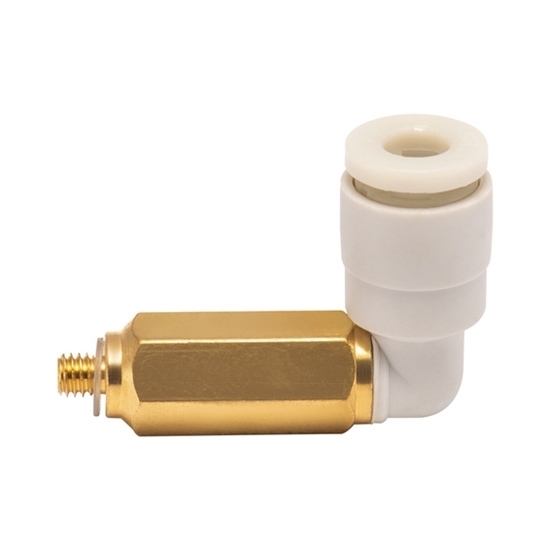

Air Hose Quick Connector, M Type

0 reviews • Write a review

from

$3.18

Ex Tax: $3.18

Stock: In Stock
Model: RDDLZ-QC-M05
Weight: 1.00
SKU: RDDLZ-QC-M05

Available Options

Short Description

Input Cannula Diameter

Output Cannula/Thread Diameter (03)

Output Cannula/Thread Diameter (04)

Output Cannula/Thread Diameter (06)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low-price quick connector is an air hose quick connector that has 03/04/06 mm input cannula diameters. Faster connector is M type, used for RVs, campers, faucets, lawn sprinklers, spigots, and faucets. High-quality plastic shell makes the air hose quick connector more smooth and wear-resistant.

Specifications

Model	RDDLZ-KJW
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Φ3	RDDLZ-KJW03-M3	5
	RDDLZ-KJW03-M5	6.2
	RDDLZ-KJW03-M6	6.3
	RDDLZ-KJW03-01S	13.4
Φ3.2	RDDLZ-KJW23-M3	5
	RDDLZ-KJW23-M5	6.2
	RDDLZ-KJW23-M6	6.3
	RDDLZ-KJW23-01S	13.4
Φ4	RDDLZ-KJW04-M3	5.1
	RDDLZ-KJW04-M5	6.4
	RDDLZ-KJW04-M6	6.5
	RDDLZ-KJW04-01S	13.6
Φ6	RDDLZ-KJW06-M5	6.9
	RDDLZ-KJW06-M6	7
	RDDLZ-KJW06-01S	13.2

Tips: 6 points for choosing a quick connector

When buying a quick connector, you need to pay attention to the following six points.

The type and temperature of the fluid
The pressure of the fluid. Please select a quick connector with pressure resistance suitable for the fluid pressure.
The structure of the automatic opening/closing valve. Please select the quick coupler with the valve structure suitable for piping use.
Environment for use of a quick coupling. Select a quick coupling with a structure and material suitable for the environment.
Make sure that the connection thread of the quick coupling is the same.
The shape and size of the installation.

In short, in addition to the above 6 points to be fully considered, the product quality and price of quick couplings are also important.
