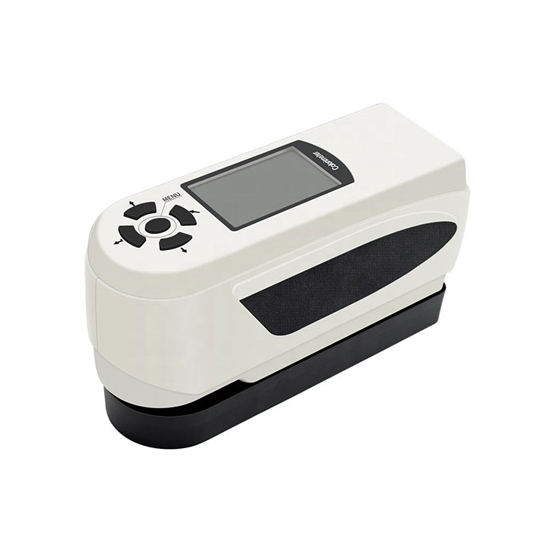

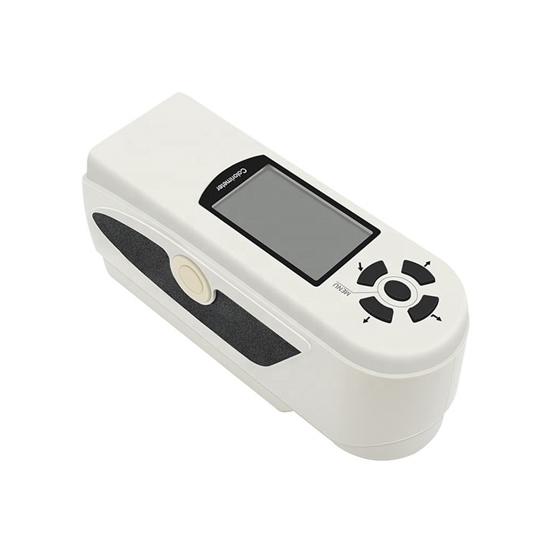

Pocket Colorimeter For Lab, Medical, Caliber 4mm/8mm

0 reviews • Write a review

from

$2,584.61

Ex Tax: $2,584.61

Stock: In Stock
Model: RDDLZ-CM-NH310
Weight: 1.00
SKU: RDDLZ-CM-NH310

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Portable laboratory colorimeter provide users with accurate and fast color management and application, using high capacity lithium ion battery, clear digital dispaly, easy to use.

Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

Specification:

Model	RDDLZ-CM-NH310
Illuminating/Viewing Geometry	8/d
Measuring Aperture	φ8mm/φ4mm
Errors Between Each Equipment	≤0.40 E*ab
Repeatability	Standard deviation within E *ab 0.06, Average of 30 measurements of, standard white plate
Detector	Silicon photoelectric diode
Locating	Illuminating Locating/Cross Locating
Measurement End Face	Large stable end-face and small concave-convex end-face
Color Space	CIELabCh* CIELab* CIEXYZ CIERGB CIELuv* CIELCh Yellowness & Whiteness Color Fastness
Measuring Times Before Recharging	More than 3000 times
Light Source	D65, D50 A
Light Source Device	LED blue light excitation
Weight	500g
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	2 hours (first time 8 hours--100% electricity)
Connector	USB
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude<2000m
Dimension	205×70×100mm

Packing List

No.	Name	Quantity
1	Colorimeter	1
2	Power adapter	1
3	Manual	1
4	Quality management software	1
5	Data cable	1
6	Whiteboard box	1
7	Φ8 measuring diameter	1
8	Φ4 measuring diameter	1
9	Lithium battery	1

Details

Applications

Tips: Working principle of color spectrophotometer

Color spectrophotometer through the detection of spectral components of the sample to determine its color parameters, not only can give the absolute value of X, Y, Z and chromatic aberration delta E, can also give the object spectral reflectance value, and draw the object color spectral reflectance curve. Therefore, it is widely used in color matching and color analysis.

The color difference measurement with high accuracy can be realized by using the spectrometer, and the photoelectric integral color measurement instrument can be calibrated to establish the chromaticity standard. Therefore, the spectrometer is an authoritative instrument in color measurement. It is divided into "0/45 degree" and "d/8 degree integrating ball" two ways of measurement and observation, in which "0/45 degree" refers to the light source shooting in from 45° Angle, 0° Angle for color difference measurement, it can only be used to measure smooth surface, not for computer color matching. The d/8 degree sphere can be used to measure various surfaces and can be used for computer color matching.
