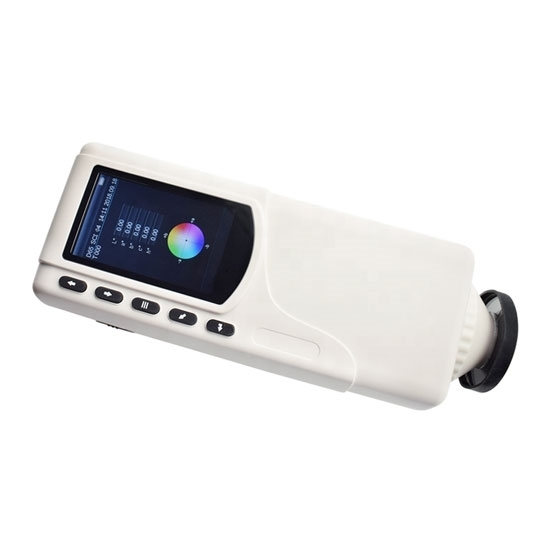

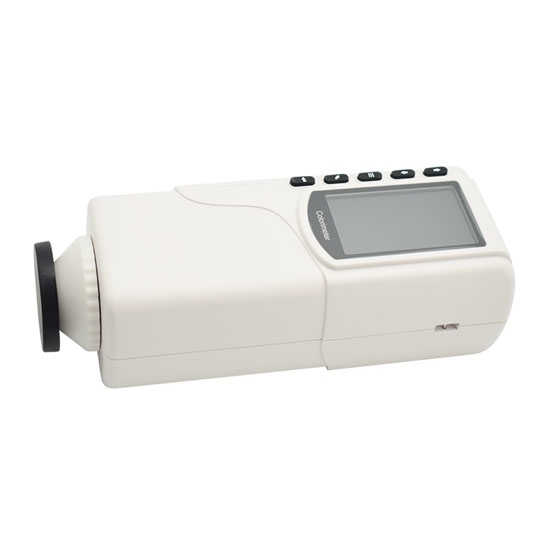

Pocket Colorimeter, Caliber 4mm

0 reviews • Write a review

from

$1,036.46

Ex Tax: $1,036.46

Stock: In Stock
Model: RDDLZ-CM-NR110
Weight: 1.00
SKU: RDDLZ-CM-NR110

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap pocket colorimeter with beautiful appearance and precise measurement characteristics, light weight, easy to carry and easy to use.

Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

Specification:

Model	RDDLZ-CM-NR110
Illuminating/Viewing Geometry	8/d
Measuring Aperture	φ4mm
Errors Between Each Equipment	≤0.80 E*ab
Repeatability	Standard deviation within E *ab 0.08, Average of 30 measurements of ,Standard white plate
Detector	Silicon photoelectric diode
Locating	Illuminating Locating/Cross Locating
Measurement End Face	Large stable end-face and small concave-convex end-face
Color Space	CIELabCh* CIELab*, CIEXYZ
Color Difference Formula	Eab, Lab ECh*
Light Source	D65
Light Source Device	LED blue light excitation
Weight	450g
Power source	Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life	5 years, more than 1.6 million measurements
Charging Time	8 hours--100% electricity
Connector	USB/RS232
Operating Environment	0~40℃, 0~85%RH (no condensing), Altitude<2000m
Dimension	205×67×80mm

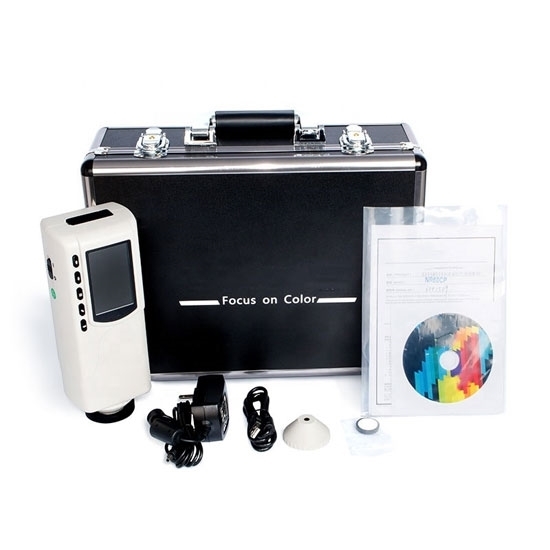

Packing List

No.	Name	Quantity
1	Colorimeter	1
2	Power adapter	1
3	Quality management software	1
4	Data cable	1
5	Whiteboard	1
6	Wrist strap	1
7	Φ4 Platform measuring caliber	1
8	Φ4 Tip measurement caliber	1

Advantages
1. Built-in whiteboard parameters, no need to check every time, to achieve fast boot measurement.
2. Double positioning, light positioning and accurate positioning of the cross.
3. Double measuring end face can be switched: large area stable end face and small area measuring concave end face.
4. New integrated sphere optical path design: eliminates stray light of main light path and auxiliary light path, with the highest measurement stability and measurement accuracy.
5. 4mm measuring caliber, vertical design, suitable for more measurement occasions.
6. Use high-capacity, rechargeable lithium-ion polymer battery, no need to buy batteries repeatedly.
7. Configure CQCS3 high-end PC software to connect PC to achieve more functions.
8. Passed SCM measurement certification, CE certification, TUV certification, and the honor of the large brand enterprise certified by ISO9001 international quality management.
9. Portable structure, small and convenient, making measurement easier.
10. High cost performance, large output, good quality and low price colorimeter.

Details

Applications

Tips: What is a colorimeter?

The colorimeter measures the color and chromatic aberration of the object (paper, etc.), measures the ISO brightness (blue light whiteness R457), and the fluorescent whitening of the fluorescent whitening material, and measures the CIE whiteness (the Gantz whiteness W10 and the color cast value). TW10), measuring ceramic whiteness, measuring whiteness of building materials and non-metallic mineral products, measuring hunter system lab andlLab whiteness, measuring yellowness, measuring sample opacity, transparency, light scattering coefficient and light Absorption coefficient, instrument for measuring ink absorption. Widely used in paper, printing, ceramics, chemicals, textile printing and dyeing, building materials, food, salt and other industries.
