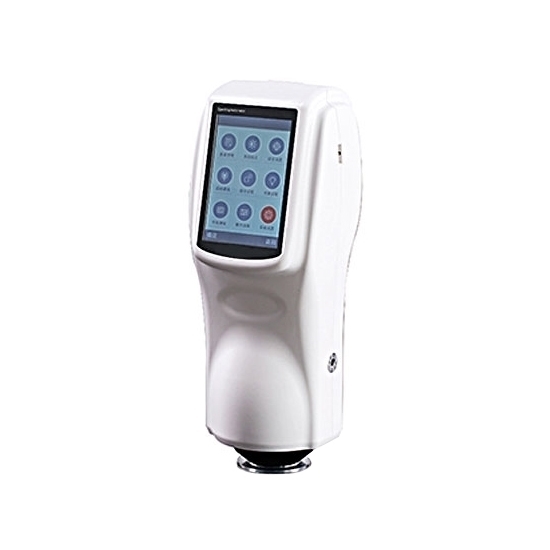

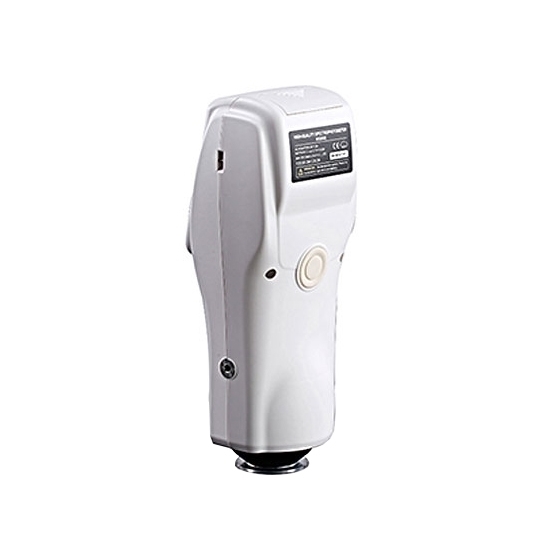

Color Spectrophotometer, Caliber 8mm

0 reviews • Write a review

from

$3,732.07

Ex Tax: $3,732.07

Stock: In Stock
Model: RDDLZ-CM-NS800
Weight: 1.00
SKU: RDDLZ-CM-NS800

Available Options

Short Description

Accessories

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Color spectrometer caliber width φ8mm, accurate measurement, colour measurement spectrometer can be used in ink, drugs and paint.

Note: The user can perform black and white calibration through the standard black and white box of the instrument and refer to the user manual to complete the calibration independently.

Specification:

Model	RDDLZ-CM-NS800
Illumination/Observation System	45/0 method (45 ring-shaped illumination, vertical viewing), Comply with CIE No.15,GB/T 3978
Integrating Sphere Size	φ58mm
Light Source	Combined LED sources
Errors Between Each Equipment	≤0.20E*ab
Sensor	Silicon photodiode array
Wavelength Range	400~700nm
Wavelength Interval	10nm
Reflectance Range	0-200%
Measuring Aperture	φ8mm
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV
Color difference Formula	ΔEab,ΔEuv,ΔE94,ΔEcmc(2:1),ΔEcmc(1:1),ΔE00
Other Chromaticity Data	WI(ASTM E313,CIE/ISO, AATCC, Hunter), YI(ASTM D1925,ASTM 313), TI(ASTM E313,CIE/ISO), Metamerism Index (Mt), Color Stain, Color Fastness
Observer	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12
Display Data	Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Measurement Time	1.5s
Repeatability	Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value	Standard deviation within Delta E*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement	Within Delta E*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension	9077230mm
Weight	600g
Battery	Li-ion battery. 5000 times within 8 hours
Lamp Life	5 years, more than 1.6 million measurements
Display Screen	USB/RS-232
Interface	1000 Standards, 15000 Samples
Data Memory	Data Memory
Operating Temperature	-20~50℃(-4~122°F)

Packing List

No.	Name	Quantity
1	Spectrophotometer	1
2	Power adapter	1
3	Lithium battery	1
4	Manual	1
5	CD (including management software)	1
6	Data cable	1
7	White correction tube	1
8	Protection cap	1
9	Wristband	1
13	Universal test module (Optional match)	1
14	Powder test box (Optional match)	1

Details

Color Spectrophotometer Accessories

Note:

1. Universal Test Components
Features: Powerful accessory with high sensitivity which is used to measure liquid, paste and powder.
Dimension: L*W*H=190x190x85 mm

2. Powder Test Box
Features: Easy to use; Focus on measuring powder.
Dimension: ø50X25mm

Applications

Tips: How does the color spectrophotometer detect the color of the pill coating?

The traditional color difference meter is a visual system that simulates the human eye. Using the analog integral optical system inside the instrument, the three-stimulus values X, Y, and Z of the sample are measured by integral measurement, and then the parameters such as the chromaticity coordinates of the sample are calculated. The accuracy of color measurement by this colorimeter is relatively low. Some products cannot even give the absolute value (L, a, b value) of the color coordinate space of the color. Since there is no absolute value data of color, it is impossible to exchange data with others. You cannot build and manage your own color standard database.

The color spectrophotometer uses the principle of spectrophotometry, which compares the light energy reflected (transmission) of the sample with the light energy of the standard reflection (transmission) under the same conditions to obtain the spectral reflectance of the sample at each wavelength, and then utilizes The standard observer and standard light source provided by CIE are calculated according to the following formula to obtain tristimulus values X, Y, Z, and then X, Y, Z calculate the chromaticity coordinates x according to CIEYxy, CIELab and other formulas. y, CIELAB color parameters, etc. The measured color difference results are more accurate and a color standard database can be created. However, the surface of the drug is irregular and the surface is not flat. Therefore, in the choice of spectrophotometer, we also need to pay attention to different measurement and observation methods.

0/45 degrees can only be used to measure smooth surfaces, and can not be used for computer color matching. The d/8 degree integrating sphere can be used to measure a variety of surfaces and can be used for computer color matching. Also, when choosing, consider whether to eliminate specular reflection, and the measurement mode that includes specular reflection. If both modes are available, it is useful when measuring a smooth surface with a color that clearly reflects the surface.
