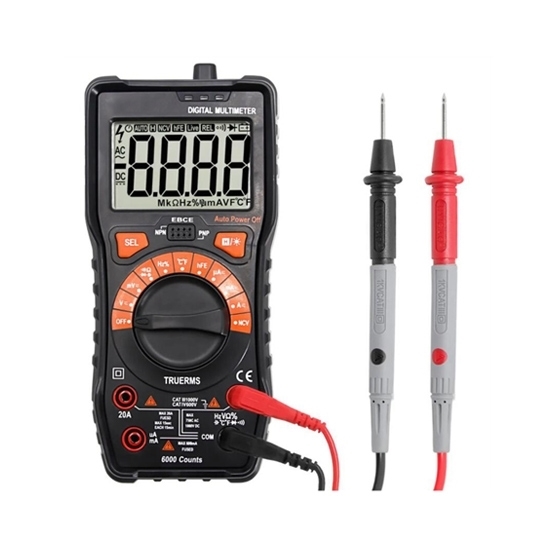

Auto Range Multimeter, True RMS, 1000V/20A DC

Auto Range Multimeter, True RMS, 1000V/20A DC
Auto Range Multimeter, True RMS, 1000V/20A DC
0 reviews • Write a review
from
$94.26
Ex Tax: $94.26
  • Stock: In Stock
  • Model: RDDLZ-MLT-19B
  • Weight: 1.00
  • SKU: RDDLZ-MLT-19B

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided 20A smart multimeter with auto range is desired for beginners. Handheld 1000V digital multimeter is perfect for measuring AC/DC current, AC/DC voltage, frequency, duty cycle, resistance, and capacitance. True RMS, high accuracy, portable design, easy operation.

Specifications

ModelRDDLZ-MLT-UA19B
Maximum Display Value5999
Operation ModeAuto Range
Sample Frequency60Hz
Input Impedance10MΩ
Monitor6000 Counts LCD Monitor
Battery Type6F22 9V Battery (Not Included)
WeightAbout 580g
DC voltage600mV/6V/60V/600V/1000V
AC Voltage600mV/6V/60V/600V/750V
DC Current60uA/600uA/6000uA/60mA/600mA/20A
AC Current60uA/600uA/6000uA/60mA/600mA/20A
Resistance600Ω~60MΩ
Capacitance9.999nF~99.99mF
Temperature-20C~1000C
Frequency9.999Hz~9.999MHz
Duty cycle0.1%~99.9%


Functions

NCV√0verload Protection√
True RMS√Auto Power Off√
Diode Test√Flashlight√
On-off Buzzer√Backlight Function√
Low Battery Display√Data Hold√
HEF/Transistor√LED Torch√


Dimension (Unit: mm)

Details

Applications

Tips: Why do you need a multimeter?

A multimeter is a versatile tool that can measure a variety of electrical parameters, such as voltage (volts), current (amps), resistance (ohms), and continuity. These measurements are important for troubleshooting, installing, and repair of electrical systems and components.

For example, a multimeter can be used to:

  • Check the voltage of a battery to determine if it needs to be replaced.
  • Measure the resistance of a component to determine if it is functioning properly.
  • Determine if there is a short circuit or broken wire in a circuit.
  • Measure the current draw of an electrical device to determine if it is functioning correctly.

In short, a multimeter is an essential tool for anyone working with electrical systems, as it provides important information about the state of those systems and helps identify issues that may need to be addressed.
