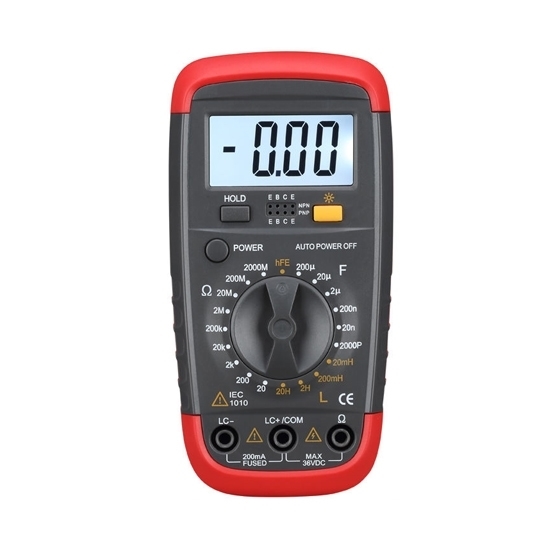

Digital Multimeter For Resistance/Capacitance/Inductance

Digital Multimeter For Resistance/Capacitance/Inductance
Digital Multimeter For Resistance/Capacitance/Inductance
0 reviews • Write a review
from
$84.85
Ex Tax: $84.85
  • Stock: In Stock
  • Model: RDDLZ-MLT-6243
  • Weight: 1.00
  • SKU: RDDLZ-MLT-6243

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided smart multimeter can be used for measuring inductance/resistance/capacitance. It is a digital multimeter with a 1999 max display, manual range mode, triode testing, high accuracy, portable design, easy operation, widely used in electronics, electrical engineering, and electrical repair, among other fields.

Specifications

ModelRDDLZ-MLT-UA6243L
Maximum Display Value1999
Operation ModeManual Range
Battery Type6F22 9V Battery (Not Included)
WeightAbout 300g
Resistance20Ω/200Ω/2kΩ/20kΩ/200kΩ/20MΩ/200MΩ/2000MΩ
Capacitance2000pF/20nF/200nF/2μF/20μF/200μF
Inductance20mH/200mH/2H/20H
Input Impedance10MΩ
Triode Testing√
Data Hold√
Low Battery Display√
Back Light√
Function Protection√


Dimension (Unit: mm)

Details

Applications

Tips: How to use a multimeter?

To use a multimeter, follow these general steps:

  1. Set the dial to the appropriate function and range for the measurement you want to take.
  2. Connect the probes to the multimeter by plugging them into the appropriate jacks.
  3. Connect the probes to the circuit or component being measured.
  4. Read the measurement value on the multimeter display.
  5. Turn off the multimeter and disconnect the probes from the circuit.

For specific instructions, consult the manual that came with your multimeter or search online for tutorials and videos on using a multimeter. Additionally, it's important to always observe safety precautions when working with electricity, such as wearing appropriate protective gear and ensuring the circuit or component is turned off before taking measurements.
