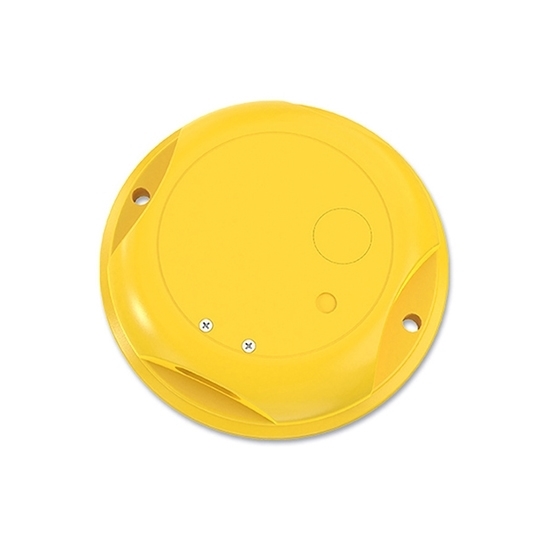

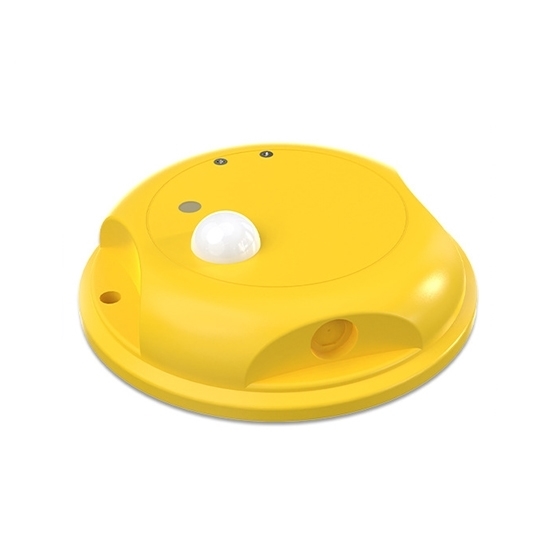

The high performance wireless manhole cover sensor for sale is capable of stable operation in harsh environments from -40°C to +70°C and 0%-95% RH. The manhole cover sensor achieves accurate angle monitoring through a ±90° measuring range in the Z-axis, with a resolution of up to 0.1°, and supports programming of alarm thresholds from 0-90°. It also offers light intensity detection (0-200,000 Lux, ±7% accuracy) and up to 5 years of light intensity stability to ensure data consistency over time.

Specification

Function

1. Moving Tilt: Measure the opening angle of the well cover through the tilt sensor and monitor the related status.
2. Underground Temperature Measurement: Monitor the internal temperature of the pipeline well and upload it to the platform in real time to show the temperature trend.
3. Overflow Alarm: Monitor the overflow of water level in the pipe well, the system alarms to dredge the pipe in time.

Dimension Drawing (unit: mm)

Installation Methods

• install methods 1 (default)

• install methods 2

• install methods 3

Attention:

Mounting method 1 (default): Use two C-clips, determine the fixing position, then use the tool to fix the C-clips, then use the bolts to mount the sensor to the C-clips.

Installation mode 2: For composite or non-metallic material manhole cover, in order not to damage the structure of the cover itself, you can use the tooling to fix the monitoring terminal on the cover.

Installation method 3: If the installation location is for rainwater manhole cover material, the rainwater manhole cover material is ductile cast iron, and the reinforcing bar in the inner center part of the manhole cover is hexagonal, as shown in the figure, this monitoring terminal is mounted on the bracket, and the bracket is mounted on any one of the sides of the hexagonal reinforcing bar in the center of the manhole cover.

Applications

Tips: Manhole cover sensor basics

As an important part of urban assets, manhole covers play a pivotal role in the process of building a modern smart city. Well cover in the city streets and alleys everywhere, once encountered well cover broken or stolen, if not dealt with in a timely manner, it is easy to cause great security risks, endangering the lives and properties of the people. According to the emergence of the well cover problems can be obtained in a timely manner to deal with, so through the Internet of Things means of all kinds of cover and fast and effective management, is the outstanding advantage of the intelligent well cover monitoring terminal.

The manhole cover sensor is installed at the back of the well cover, and the sensor terminal can detect the current inclination angle of the well cover. When the tilt angle value is greater than the set alarm value triggers the alarm, and through the wireless network will send the alarm information to the cloud platform. The wireless sensor terminal supports setting the time interval and alarm angle threshold. In non-alarm state, the terminal sends uploads at regular reporting intervals. In the alarm state, the terminal sends the upload message in an immediate manner, and when the angle returns to normal, the terminal also sends the message to the platform immediately. The device status bit in the telegram is used to indicate the current alarm state. The status bits of the manhole cover sensor can also indicate the current power status, water level height detection, illumination detection and other statuses.
