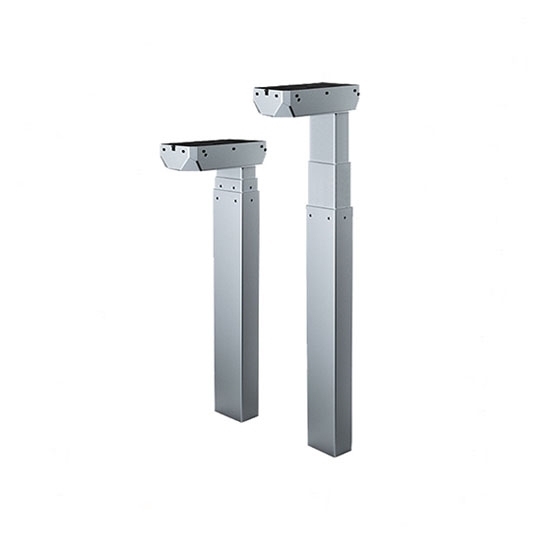

Telescopic Lifting Column Set For Desk

0 reviews • Write a review

from

$666.03

Ex Tax: $666.03

Stock: In Stock
Model: RDDLZ-LC-HTL82
Weight: 1.00
SKU: RDDLZ-LC-HTL82

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Low price lifting column set for desk with noise level of less than 48 dB, max speed 38mm/s at load 800N, stroke 600mm, min. installation size 560mm.

Specification

Model: RDDLZ-LC-HTL82
Rated voltage: 24VDC
Rated speed: 4000 rpm
Maximum thrust: 800N
Maximum speed at full load: 38 mm/s (load 800N in push state)
Slowest speed at full load: 3.5 mm/s (load 8000N)
Minimum installation size: 560mm
Stroke: 600mm
Outer tube size (L*W): 80*50mm
IP rating: IP54
Operating temperature range: -45°C ~ +75°C
Full performance operating temperature range: +5°C ~ +45°C
Certificate: CE

Dimension (mm)

Type	Minimum height (mm)	Maximum height (mm)	Stroke (mm)
2-stage 2 legs	650	1150	500
3-stage 2 legs	560	1210	650
2-stage 3 legs	650	1150	500
3-stage 3 legs	560	1210	650

Tips: Factors to Consider When Choosing a Telescopic Lifting Column.

Stability: In applications such as adjustable tables, all things being equal, rectangular tube lifting columns provide the best overall stability. This is because the ratio of the long side to the short side of the rectangle can be adjusted to optimize the two inherent instabilities, rather than treating them equally.
Speed: A user's productivity can be greatly affected by the speed at which their work surface is raised or lowered. Lifting columns can provide speeds of approximately 10 mm/s to 250 mm/s, making them ideal for medical device applications that require optimal speed, such as MRI machines, X-ray machines and operating tables. The same is true in industrial settings, where lifting columns are used for height-adjustable desks or workbenches.
