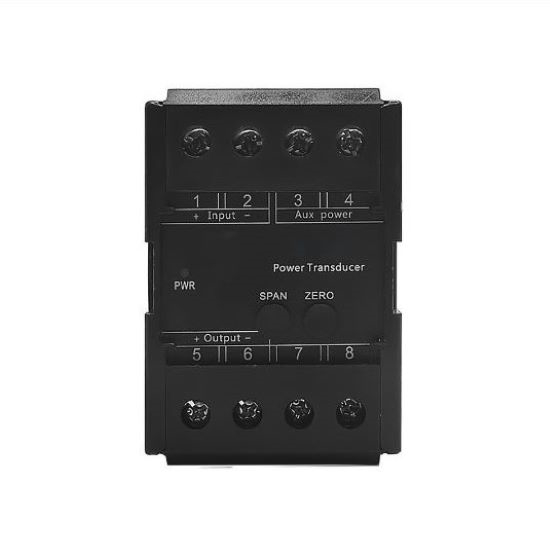

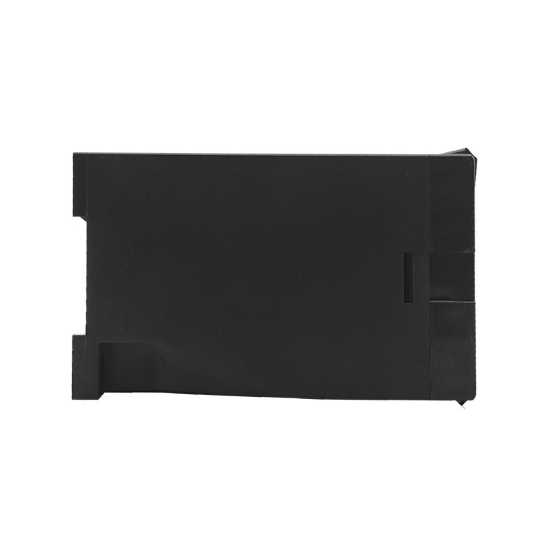

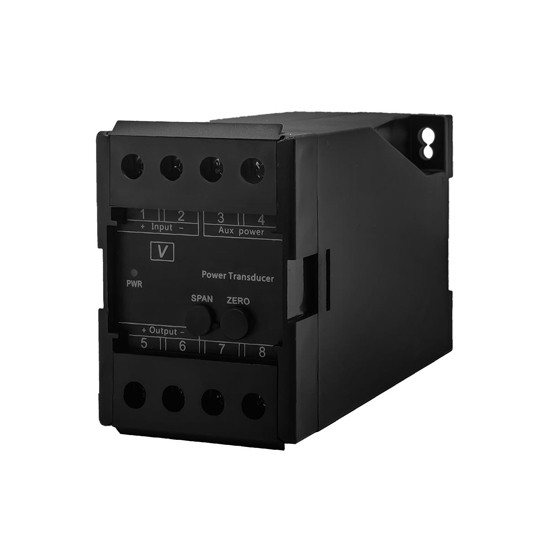

1-phase AC Voltage Transducer, 0~120V/300V/450V/600V

0 reviews • Write a review

from

$175.54

Ex Tax: $175.54

Stock: In Stock
Model: RDDLZ-PT-V1
Weight: 1.00
SKU: RDDLZ-PT-V1

Available Options

Input Voltage

Output Signal

Accuracy

Output Channel

Transducer Power

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Single-phase AC voltage transducer shell material ABS fireproof material, insulation resistance exceeds 100mΩ, uses 35mm standard rail or fixed on the cabinet, working environment temperature is 0~50℃, working environment humidity <80% relative humidity, strong and durable.

Specification

Model	RDDLZ-PT-HDB-V1
AC Voltage Input	0-120V，0-300V，0-450V, 0-600V, customization (optional)
Allow Overload	Voltage×1.2 times the nominal value lasts
Accuracy	Average measurement, 0.5 True RMS measurement, 0.5 Average measurement, 0.2 True RMS measurement, 0.2 (optional)
Response Time	≤400ms
Output Channel	1 channel, 2 channels, 3 channels (optional)
Output Voltage	0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current	0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output	RS485, customization
Output Ripple	≤0.5% RO peak
Work Environment Temperature and Humidity	0~50℃/less than 80% relative humidity (no condensation)
Storage Conditions Temperature and Humidity	-20~70℃/less than 70% relative humidity (no condensation)
Aux.power Supply	DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation	Input/output/power supply/shell
Power Consumption	DC about 3W, AC about 4VA
Material of Shell	ABS fireproof material
Weight	About 300 grams
Compressive Strength	AC2kVrms/min
Insulation Resistance	>100MΩ at DC500V
Dimension	120 (L) × 55 (W) × 75 (H) mm
Installation Method	35mm standard guide rail or fixed on the cabinet

Dimension (Unit: mm)

Calibration Fine Tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

Wiring

Tips: Main uses of power transducers

Power system monitoring: power management of substations and power plants, monitoring power changes in distribution systems, identifying load imbalance, power loss and other problems
Industrial automation: monitoring and controlling the power consumption of industrial equipment to improve efficiency. Load management to prevent equipment overload or abnormal operation.
Energy management: monitoring energy consumption data of factories, buildings, shopping malls and other places, identifying high-energy consumption equipment, optimizing power distribution, reducing operating costs, assisting smart grids in optimizing power supply and improving energy efficiency.
Motor and equipment protection: monitoring the operating status of equipment such as motors and transformers, identifying current/voltage anomalies, timely alarming, preventing damage, ensuring long-term stable operation of equipment, and reducing maintenance costs.
