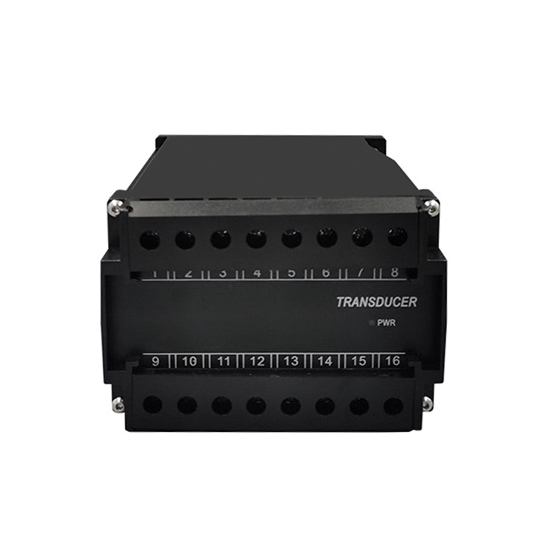

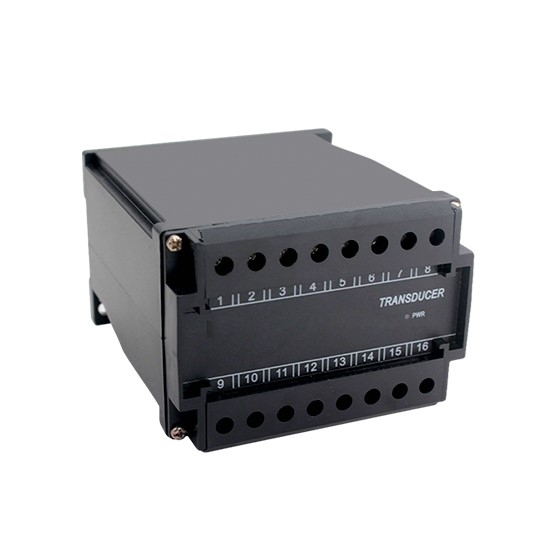

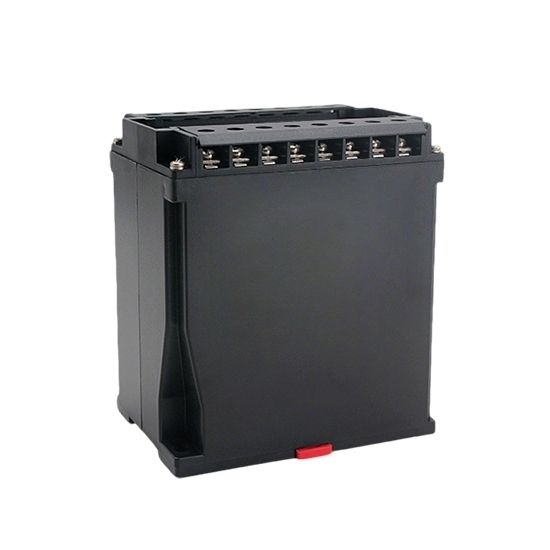

3-phase AC Voltage Transducer, 0~120V/300V/450V/600V

0 reviews • Write a review

from

$237.08

Ex Tax: $237.08

Stock: In Stock
Model: RDDLZ-PT-V3
Weight: 1.00
SKU: RDDLZ-PT-V3

Available Options

Input Voltage

Output Signal

Accuracy

Output Channel

Transducer Power

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The 3-phase AC voltage transducer is sold at a low price, with an accuracy of 0.2/0.5, a response time of less than 400ms, and an output ripple of ≤0.5% RO peak. The three-phase AC voltage transducer is designed for different environments, and the storage conditions are a temperature of -20~70℃ and a relative humidity of less than 70%.

Specification

Model	RDDLZ-PT-HDB-V3
AC Voltage Input	0-120V，0-300V，0-450V，0-600V, customization (optional)
Input Load	Voltage transformer PT: ≤0.1VA
Allow Overload	Voltage×1.2 times the nominal value lasts
Accuracy	Average measurement, 0.5 True RMS measurement, 0.5 Average measurement, 0.2 True RMS measurement, 0.2 (optional)
Response Time	≤400ms
Output Channel	1 channel, 2 channels, 3 channels, 4 channels (optional)
Output Voltage	0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current	0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output	RS485, customization
Output Ripple	≤0.5% RO peak
Work Environment Temperature and Humidity	0~50℃/less than 80% relative humidity (no condensing)
Storage Conditions Temperature and Humidity	-20~70℃/less than 70% relative humidity (no condensation)
Aux.power Supply	DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation	Input/output/power supply/shell
Power Consumption	DC about 3W, AC about 4VA
Material of Shell	ABS fireproof material
Weight	About 450 grams
Compressive Strength	AC2kVrms/min
Insulation Resistance	>100MΩ at DC500V
Dimensions	120（L）× 110（W）× 75（H）mm
Installation Method	35mm standard guide rail or fixed on the cabinet

Dimension (Unit: mm)

Calibration Fine Tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

Wiring

Tips: Use and maintenance of power transducer

Regular calibration: After long-term use, the sensor may drift. Regular calibration is recommended to ensure accurate measurement.
Check the connection terminals: After long-term operation, the terminal screws may loosen, resulting in unstable signals. Check and tighten them regularly.
Avoid overload: Make sure the input signal does not exceed the rated range to prevent damage to the sensor or increase in measurement error.
Prevent moisture and high temperature: Excessive ambient temperature and humidity may affect the life of the circuit board. Keep it ventilated and dry.
