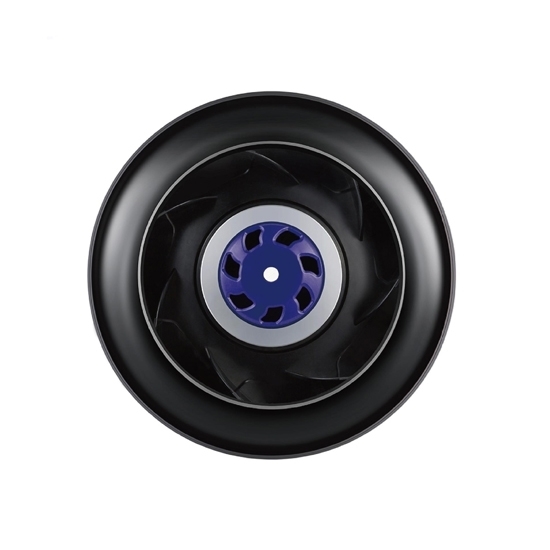

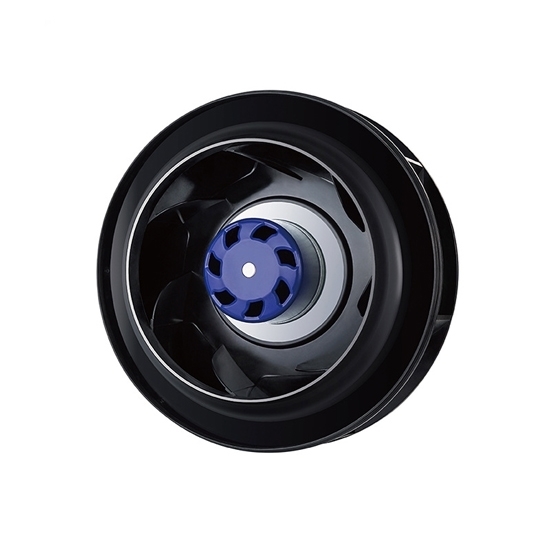

DC Backward Curved Centrifugal Fan, 250mm, 24V/48V

0 reviews • Write a review

from

$382.49

Ex Tax: $382.49

Stock: In Stock
Model: RDDLZ-BCCF-DC250
Weight: 1.00
SKU: RDDLZ-BCCF-DC250

Available Options

Short Description

Operating Voltage

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

250mm DC backward curved centrifugal fans feature backward-curved blades that help to enhance aerodynamic efficiency and reduce noise levels. These backward inclined centrifugal exhaust blowers working at 24V/48V, are suitable for applications requiring variable airflows and pressure control, such as in HVAC systems, clean rooms, and industrial cooling processes.

Specification

Model	RDDLZ-BD-B250B-EC-00
Operating Voltage (Optional)	24V DC or 48V DC
Max. Power	95W
Motor Power	95W
Max. Current	4.0A
Noise	66dB(A)
Impeller Diameter	250mm (10 inch)
Speed	1950rpm
Air Volume	1100m³/h (650 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	PA6+GF
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS

Dimension (Unit: mm)

Performance Curve

Wiring

Detail

Tips: DC backward curved centrifugal fan working principle

A DC backward inclined centrifugal fan operates on the principle of converting rotational energy into airflow. The fan consists of a rotating impeller with backward-curved blades. When the impeller spins, it draws air into the fan through the inlet. The backward-curved blades are designed to guide the air in a radial direction, accelerating it outward towards the fan's discharge.

The backward curve shape helps in achieving higher efficiency and lower noise levels compared to forward-curved fans. As the air is forced out of the impeller, it gains velocity and pressure, creating a continuous flow of air. The DC motor driving the fan provides precise control over speed and power consumption, allowing for efficient operation and adaptability in various applications. This design is commonly used in ventilation systems and air handling units where energy efficiency and low noise are critical.
