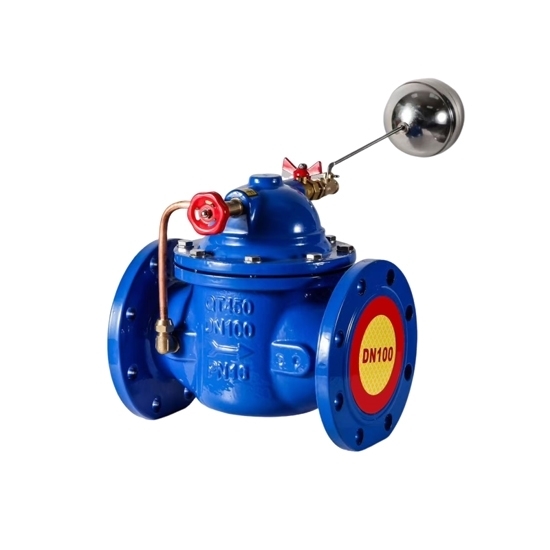

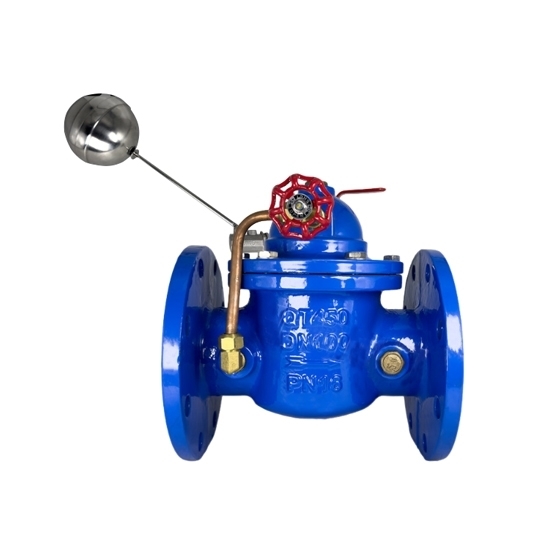

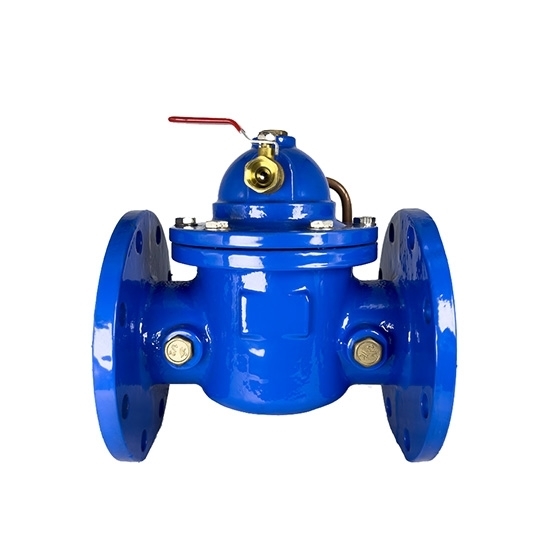

Water Level Control Float Valve, DN50-DN250

0 reviews • Write a review

from

$439.62

Ex Tax: $439.62

Stock: In Stock
Model: RDDLZ-LCV-100X
Weight: 1.00
SKU: RDDLZ-LCV-100X

Available Options

Nominal Diameter

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Note: This control valve cannot be used for drinking water.

The valve body adopts a full-channel streamlined design, with large flow, good sealing effect, simple maintenance, flexibility and durability, high liquid level control accuracy, the water level is not affected by water pressure and is tightly closed without water leakage. It can control the liquid level of a water tower or pool. It is suitable for automatic water supply systems of various pools (boxes) and water towers in industrial and mining enterprises and civil buildings.

Specifications

Model: RDDLZ-100X-16Q
Nominal diameter: DN50-DN250 (American standard 150LB flange can be customized)
Applicable media: Clean water, non-corrosive liquids
Medium: Temperature ≤80℃
Using pressure: ≤1.6MPa
Valve body material: Ductile iron/QT450
Seal material: One-piece rubber

Dimensions (mm) and Details

Specifications DN	50	65	80	100	150	200	250
L	240	240	292	325	400	470	550
D	160	180	195	215	280	335	405
D1-16kg	125	145	160	180	240	295	355
n-d	4-19	4-19	8-19	8-19	8-23	12-23	12-28

Note: Product data may change due to factors such as accessory process improvements. Please consult customer service for specific parameters before purchasing.

Main component material
Serial number	Name	Material	Serial number	Name	Material
1	Valve body	Ductile iron QT450	9	Valve cover	Ductile iron QT450
2	Valve seat	Copper	10	Bolts	SS201 (stainless steel)
3	Valve disc	Ductile iron QT450	11	Ball valve	Copper
4	Valve shaft	Dichloroethylene	12	Pressure gauge	Assembly
5	Diaphragm	Reinforced nylon rubber	13	Pressure gauge	Assembly
6	Diaphragm pressure plate	Ductile iron QT450	14	Pilot valve	Copper
7	Bolt	201	15	Needle valve	Copper
8	Spring	Spring steel	16	Pipe	Copper

Installation

Applications

Tips: Working principle of water level control float valve

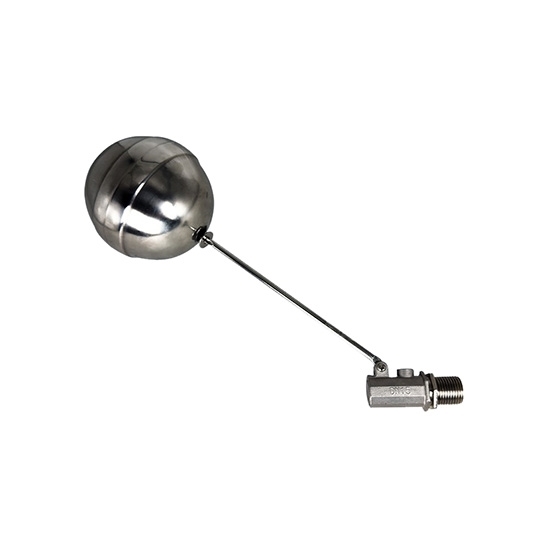

The water level control float valve works in conjunction with the main valve and the control float valve to realize automatic water supply and water cutoff of the water tank. The upper chamber of the main valve is connected to the float valve, which is installed at the liquid level of the water tank to sense water level changes and control the main valve switch.

When the water level in the water tank drops to the set position, the float valve opens, causing the main valve to open and water to start being supplied to the water tank; when the water level rises to the height set by the float valve, the float valve closes, and the main valve closes synchronously, stopping the water supply. The entire process does not require external power and is automatically adjusted by water level changes to ensure that the water level in the water tank remains within the set range.
