Note: This control valve cannot be used for drinking water.

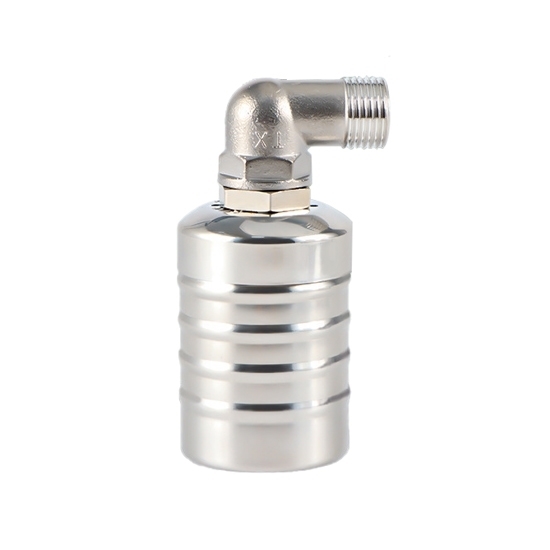

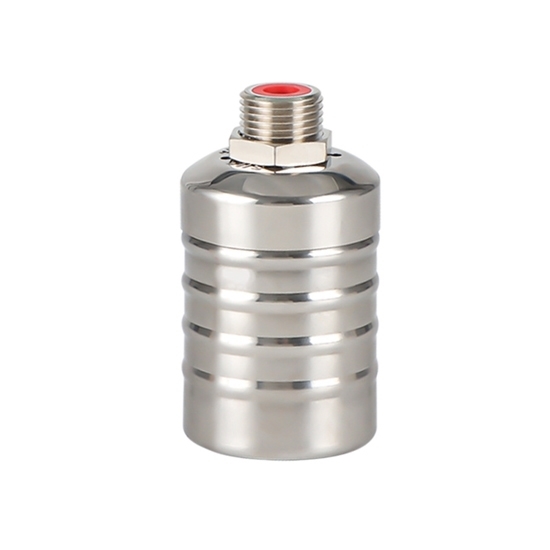

RDDLZ 1/2" stainless steel float valve is a fully automatic water level control valve equipped with thread connection, water inlet direction above/side, and narrow side/wide side mounting bracket, usually used in industrial processes, agricultural irrigation, domestic water supply systems, etc.

Specifications

• Model: RDDLZ-y6-1/2
• Connection Method: 1/2" Thread G
• Nominal Diameter: DN15
• Connector Size: 20mm
• Valve Body Material: 304 Stainless Steel
• Water Entrance Direction: Above or Side
• Fixed Bracket: Narrow Side or Wide Edge Mounting Bracket

• Applicable Temperature: 0~100°C
• Pressure Range: 0.2~8kg
• Screw Material: 304 Stainless Steel

Fixed Bracket Selection

Details

Applications

Tips: What is an automatic water level control valve?

An automatic water level control valve is a device designed to regulate and maintain a consistent water level in a reservoir, tank, or other water storage system without the need for manual intervention. It operates by sensing the water level and adjusting the flow of water accordingly to achieve the desired level. These valves are commonly used in various applications such as industrial processes, agricultural irrigation, and domestic water supply systems.

The valve typically consists of a float mechanism that moves up and down with the changing water level. As the water level rises or falls, the float triggers the valve to open or close, controlling the inflow or outflow of water. Some automatic water level control valves are equipped with additional features such as adjustable settings, pressure relief mechanisms, and anti-clogging components to enhance their efficiency and reliability.

These devices play a crucial role in preventing overflow or depletion of water in a system, thereby ensuring optimal water management. They contribute to resource conservation, reduce the need for constant manual monitoring, and enhance the overall efficiency of water distribution systems in diverse settings.
