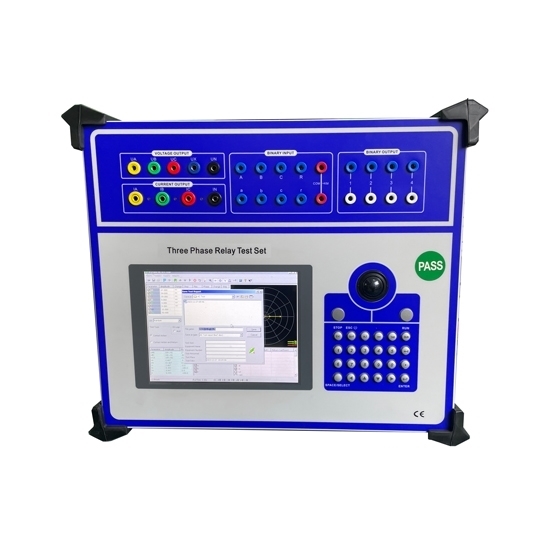

3 Phase Protection Relay Test Set, 110V 220V Adjustable DC Output

Free Shipping

3 Phase Protection Relay Test Set, 110V 220V Adjustable DC Output

0 reviews • Write a review

from

$7,430.76

Ex Tax: $7,430.76

Stock: In Stock
Model: RDDLZ-RT802
Weight: 1.00
SKU: RDDLZ-RT802

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price 3 phase protection relay test set with standard 4-phase voltage 3-phase current output, the output waveform has high precision, small distortion and good linearity. It will not generate high and medium frequency interference to the test site, and the current waveform accuracy is excellent, is an ideal relay protection tester.

Specification

AC Current Output	Model	RDDLZ-RT802
	Phase	3 Phase
	DC Power Output	110V 220V
	AC Current Output (Effective Value)	0~40A
	Output Precision	0.2 Degree
	3 Phase Parallel Current Output (Effective Value)	0~120A
	A Long-Time Phase Current	10A
	Maximum Output Power of Phase Current	450VA
	Maximum Output Power of 3 Parallel Current	900VA
	Maximum Permitted Work time of 3 Parallel Current	10S
	Frequency Range (Fundamental)	0~1000Hz
DC Current Output	Harmonic Time	0~20
DC Current Output	Current Output	0～±10A/Phase, 0～±30A/3 Parallel
AC Voltage Output	Output Precision	0.5 Degree
	Phase Voltage Output (Effective Value)	0~120V
	Output Precision	0.2 Degree
	Line Voltage Output (Effective Value)	0~240V
	Phase Voltage/Line Phase Output Power	80VA/100VA
	Frequency Range (Fundamental)	0~1000Hz
	Harmonic Time	0~20
DC Voltage Output	Phase Voltage Output Range	0~±160V
	Output Precision	0.5 Degree
	Line Voltage Output Range	0~±320V
	Phase Voltage/Line Phase Output Power	70VA/140VA
10 Path Digital Input and 8 Path Digital Output	Time Measuring Range	0.1ms~9999s, Accuracy of Measurement 0.1ms
Input Voltage	Default: 220V 50Hz (for other voltages such as 240V 60Hz, please contact us)
Applications	3 Phase Protection Relay Testing
Dimensions	370570740mm
Weight	44kg

Features

Flexible combination of voltage and current output with standard 4-phase voltage 3-phase current output, various combinations of outputs can be conveniently performed for various types of protection tests. Each phase voltage can output 120V, current three can output 120A, and the fourth phase voltage Ux is a multi-function voltage term, which can be set to 4 kinds of 3U0 or synchronous voltage, or any voltage value.
High-performance host The output part adopts DSP control, which has fast calculation speed, strong real-time digital signal processing capability, transmission bandwidth and high-resolution D/A conversion. The output waveform has high precision, small distortion and good linearity. Small size, light weight, full function, easy to carry, work at boot, flow test is very convenient.
Powerful software It can complete large-scale complex verification work with high degree of automation. It can easily test and scan various protection settings, perform fault playback, store test data in real time, display vector graphics, and print reports online.
3 Phase protection relay test set has independent dedicated DC power output device with one 110V and 220V dedicated adjustable DC power output.
Rich contacts There are 8 contact inputs and 4 empty contact outputs. The input contact is an empty contact and 0-250V potential contact compatible mode, which can be intelligently and automatically recognized.
