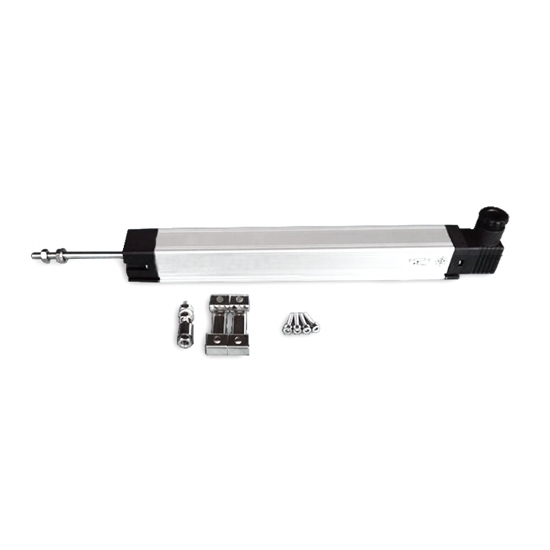

Linear Displacement Sensor 50-1250mm

0 reviews • Write a review

from

$91.38

Ex Tax: $91.38

Stock: In Stock
Model: RDDLZ-DISS-R1250
Weight: 1.00
SKU: RDDLZ-DISS-R1250

Available Options

Short Description

Accessories

Measuring Range

Optional Output Signal for 1100-1250mm

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

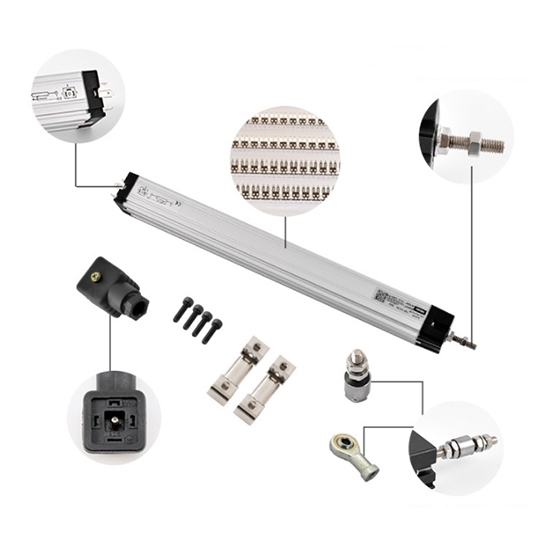

Linear displacement sensor has 3mm buffer stroke at both ends, with a standard plug and socket, tie rod match with ball has a 0.5mm automatic centering function.

Applications: General type linear displacement sensor is suitable for the position detection of various types of equipment. Such as: Injection molding machine, die-casting machine, rubber machine, shoe machine, EVA injection machine, bottle blowing machine, woodworking machine, coal washing machinery, hydraulic machinery, etc.
Specification:

Basics	Model	RDDLZ-KTC
	Size	33*33mm
	Weight	160-1100g
	Measuring range *	50-550mm	600-1000mm	1100-1250mm
Technical parameters	Effective stroke	50-550mm	600-1000mm	1100-1250mm
	Resistance	5.0kΩ	10.0kΩ	20.0kΩ
	Linearity	±0.05%FS
	Repeated accuracy	0.01mm
	Maximum operating speed	10m/s
	Operating current	≤2mA
	Operating voltage	DC 5V	DC 10V	DC 24V
	Output signal *	DC 0-5V	DC 0-10V	DC 0-5V, 0-10V, 4-20mA (optional)
	Operating temperature	-40℃～+135℃
	Protection class	IP67
	Service life	50,000,000 times

Dimensional drawing (unit: mm):
