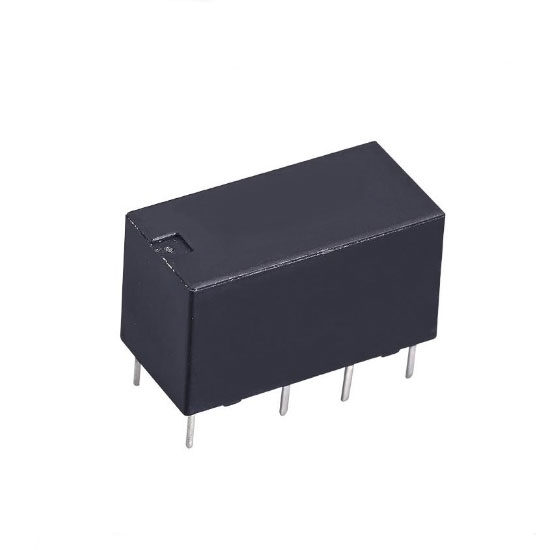

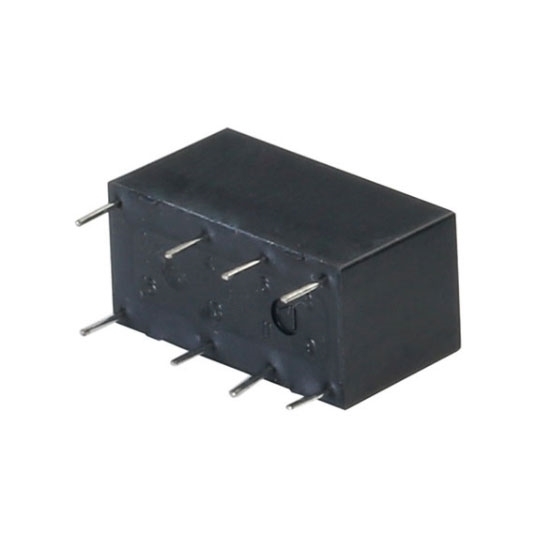

5V DC Signal Relay, DPDT, 2A

0 reviews • Write a review

from

$17.33

Ex Tax: $17.33

Stock: In Stock
Model: RDDLZ-SR-W32DC5V
Weight: 1.00
SKU: RDDLZ-SR-W32DC5V

Available Options

Short Description

Coil Power

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Signal relay adopts copper coil and silver alloy contacts, strong conductivity and longer life span.

Features

2A contact switching capability.
High sensitive type, coil power is 150mW/200 mW.
Standard DIP construction terminal.
Ultra – small type, gold – plated contacts.
Suit for complete machine wave soldering and integral cleaning process.
Main applications: Electric power protection, automation, communication.

Specification

Model			RDDLZ-SR-FH32DC5V
Type			Standard Type	Sensitive Type
Coil Parameters (23℃)	Nominal Voltage		DC 5V
	Nominal Power		200mW	150mW
	Pick-up Voltage		≤3.75VDC	≤3.75VDC
	Drop-out Voltage		≥0.25VDC	≥0.25VDC
	Rated Current		40mA	30mA
	Coil Resistance		125Ω	166.7Ω
	Max Voltage		DC 6.5V	DC 6.5V
Contact Parameters	Contact Form		DPDT (2C)
	Contact Resistance (Initial)		≤100mΩ (6VDC 1A)
	Contact Material		AgNi + Gold Plating
Rated Value	Rated Load (Resistance Load)		1A 125VAC
			2A 30VDC
	Max. Switching Voltage		250VAC30VDC
	Max. Switching Current		2A
	Max. Switching Capacity		125VA/60W
	Min. Allowing Load		10mV 10μA
Electrical Performance	Insulation Resistance (Initial)		1000mΩ (500VDC)
	Dielectric Strength (Initial)	Between Open Contacts	750VAC, 1 min
		Between Coil & Contacts	1500VAC, 1 min
	Operate Time		≤5ms
	Release Time		≤5ms
Mechanical Performance	Shock Resistance	Functional	98m/s²(10g)
		Destructive	980m/s²(100g)
	Vibration Resistance		10Hz ~ 55Hz 1.5mm DA
Endurance	Mechanical		1 x 10⁷ops
	Electrical		1A 125VAC 1 x 5ops (ON/OFF=1s/9s)
			2A 30VDC 1 x 10⁵ops (ON/OFF=1s/9s)
Operate Condition	Ambient Temperature		-40℃ ~ 85℃
	Humidity		5% to 90%
Termination			PCB (DIP Encapsulation)
Unit Weight			5g
Construction			Plastic Sealed

Note: In order to maintain the initial performance parameters of the signal relay, please be careful not to drop it.

Dimension

Units: mm

Performance curves

Tips: Difference between signal relay and power relay

Signal relay is usually used for monitoring and protection. It is widely used in the secondary protection circuit of distribution high voltage cabinet. For example, If the transformer oil temperature is over 85 degrees and A normally open contact is closed on the temperature monitor indicator, making the contact string in signal relay coil back to the road, so there are signals leads to relay coil absorption and action and high voltage switch is off at the same time to remove the station transformer load, so as to protect the transformer. However, there are many kinds of signal relays, some of which are directly buzzing or flashing as alarm signals.
Power relay is a device that can produce step in one or more electrical output circuits when the input (or excitation) satisfies some specified conditions. It can be used in the neutral point directly grounded system as the direction element of zero sequence current protection.
