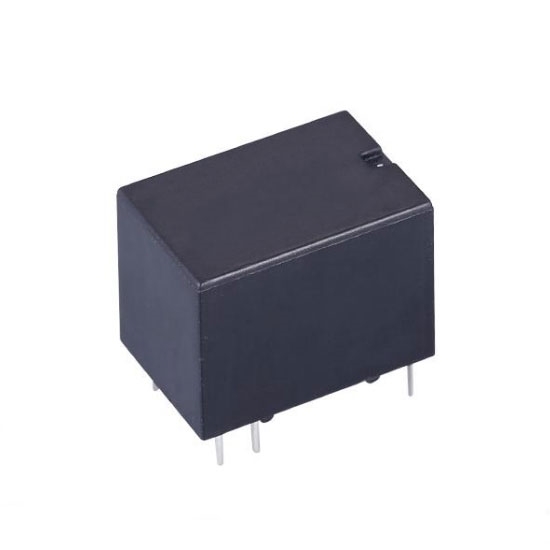

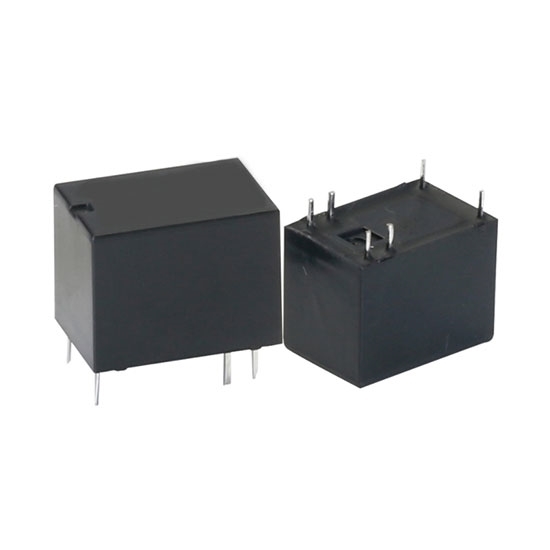

12V DC Signal Relay, SPDT, 3A

0 reviews • Write a review

from

$19.50

Ex Tax: $19.50

Stock: In Stock
Model: RDDLZ-SR-W38DC12V
Weight: 1.00
SKU: RDDLZ-SR-W38DC12V

Available Options

Short Description

Coil Power

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

12V DC signal relay with full-turn and full-negative electromagnetic coil is more stable and precise.

Features

3A contact switching capability.
Contact form: SPDT (1C).
High sensitive type, coil power is 200mW/360mW/450mW.
Standard DIP construction terminal.
Ultra – small type, gold – plated contacts.
Suit for complete machine wave soldering and integral cleaning process.
Main applications: Electric power protection, automation, communication.

Specification

Model			RDDLZ-SR-FH38DC12V
Type			Standard Type	Sensitive Type	High Power Consumption Type
Coil Parameters (23℃)	Nominal Voltage		DC 12V
	Nominal Power		360mW	200mW	450mW
	Pick-up Voltage		≤9VDC	≤9VDC	≤9VDC
	Drop-out Voltage		≥0.60VDC	≥0.60VDC	≥0.60VDC
	Rated Current		30mA	17.6mA	37.5mA
	Coil Resistance		400Ω	720Ω	320Ω
	Max Voltage		DC 15.6V	DC 15.6V	DC 15.6V
Contact Parameters	Contact Form		SPDT (1C)
	Contact Resistance (Initial)		≤100mΩ (6VDC 0.1A)
	Contact Material		AgNi + Gold Plating
Rated Value	Rated Load (Resistance Load)		1A 240VAC/30VDC
			3A 120VAC
	Max. Switching Voltage		240VAC/30VDC
	Max. Switching Current		5A
	Max. Switching Capacity		360VA/30W
	Min. Allowing Load		5VDC 100mA
Electrical Performance	Insulation Resistance (Initial)		1000mΩ (500VDC)
	Dielectric Strength (Initial)	Between Open Contacts	500VAC, 1 min
		Between Coil & Contacts	1000VAC, 1 min
	Operate Time		≤10ms
	Release Time		≤5ms
Mechanical Performance	Shock Resistance	Functional	98m/s²(10g)
		Destructive	980m/s²(100g)
	Vibration Resistance		10Hz ~ 55Hz 1.5mm DA
Endurance	Mechanical		1 x 10⁷ops
	Electrical		1A 240VAC 1 x 10⁵ops (ON/OFF=1s/9s)
			3A 120VDC 5 x 10⁴ops (ON/OFF=1s/9s)
Operate Condition	Ambient Temperature		-25℃ ~ 70℃
	Humidity		5% to 85%
Termination			PCB (DIP Encapsulation)
Unit Weight			5g
Construction			Plastic Sealed, Flux Proofed

Note: In order to maintain the initial performance parameters of the signal relay, please be careful not to drop it.

Dimension

Units: mm

Performance curves

6 tips for using signal relay

Do not remove the shell of the signal relay lest the performance cannot be retained.
Use the signal relay in the normal temperature and humidity environment without dust, SO2, H2S or other organic gas, because high humidity is easy to accelerate the corrosion of the signal relay structural parts and dust is easy to make its contact failure.
Do not power on the set and reset coils at the same time.
Do not continuously apply more than the maximum allowable voltage.
Generally, when the ambient temperature does not exceed the specified range in the specification, the signal relay can work normally. When the actual ambient temperature is slightly higher than the maximum value, it is necessary to contact a technician to determine whether the signal relay can be used normally according to the load situation.
The external dimensions of signal relays have certain tolerances. Therefore, it is recommended to design the circuit and the installation clearance according to the maximum size specified in the manual.
