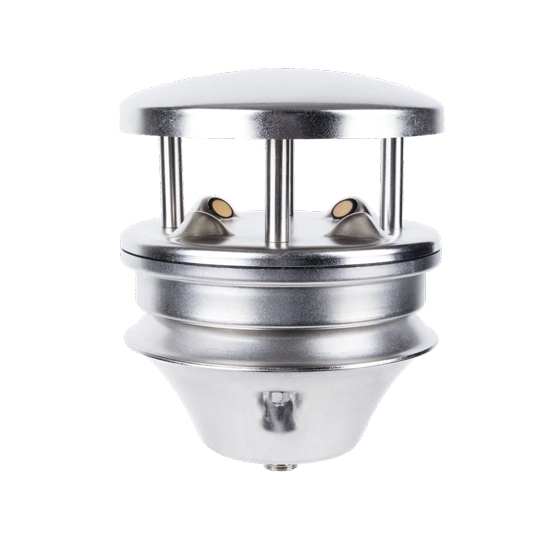

Ultrasonic Wind Speed And Direction Sensor, Stainless Steel

0 reviews • Write a review

from

$783.09

Ex Tax: $783.09

Stock: In Stock
Model: RDDLZ-UWSS-204
Weight: 1.00
SKU: RDDLZ-UWSS-204

Available Options

Short Description

Output Signal

Cable Length

Wind Speed Range

With Heating Function

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ ultrasonic wind speed and direction sensor comes with a 0-60m/s or 0-70m/s measuring range and 0-5V or 4-20mA analog signal. This stainless steel anemometer sensor works by emitting ultrasonic pulses between transducers placed in different directions.

Specification

Model		RDDLZ-FST200-204/204A
Wind Speed Parameter	Measuring Range (Optional)	0-60m/s, 0-70m/s
	Starting Wind Speed	0.1m/s
	Response Time	1s
	Resolution	0.1m/s
	Accuracy	±0.3m/s or ±3% (0-30m/s) or ±5% (30-70m/s), whichever is greater
Wind Direction Parameter	Measuring Range	0-360°
	Starting Wind Speed	0.1m/s
	Accuracy	±2°
	Resolution	0.1°
Basic Parameter	Digital Signal (Optional)	RS485
	Analog Signal (Optional)	0-5V or 4-20mA
	Baud Rate	2400-115200
	Power Supply Voltage	9V-24V DC
	Working Current	Common Type: <35mA (12VDC), Heating Type: 0.6-1A
	Working Temperature	-20℃~60℃
	Working Humidity	0%~95% RH
	Protection	IP66

Dimension (Unit: mm)

Bottom Installation Dimension (Unit: mm)

Suggestions for Making the Bottom Bracket (Unit: mm)

Tips: How does the ultrasonic wind speed and direction sensor work?

An ultrasonic wind speed and direction sensor operates by emitting ultrasonic sound waves between multiple transducers, positioned in different orientations. When wind passes through the sensor, it affects the time it takes for these sound waves to travel between the transducers. By measuring the difference in travel times, the sensor calculates both wind speed and direction.

The principle behind the sensor is simple: wind moving in the same direction as the sound waves accelerate them, while wind moving against the waves slows them down. By comparing the time it takes for the waves to travel across different paths, the sensor can determine the wind’s velocity and direction with high precision.

This type of sensor is advantageous because it has no moving parts, making it durable, low-maintenance, and less prone to wear or mechanical failure. It is widely used in demanding environments like marine applications, meteorology, and industrial settings.
