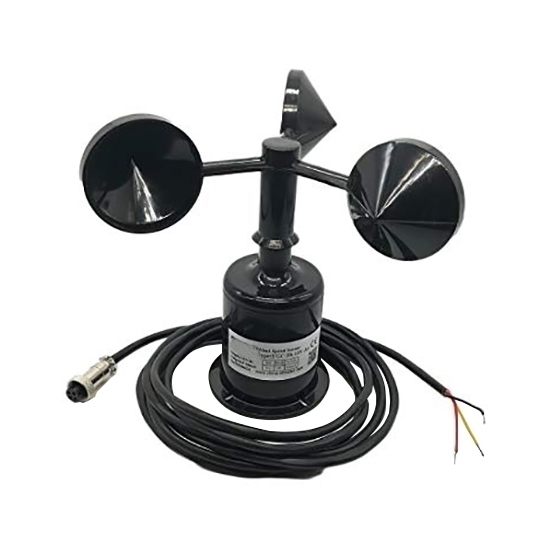

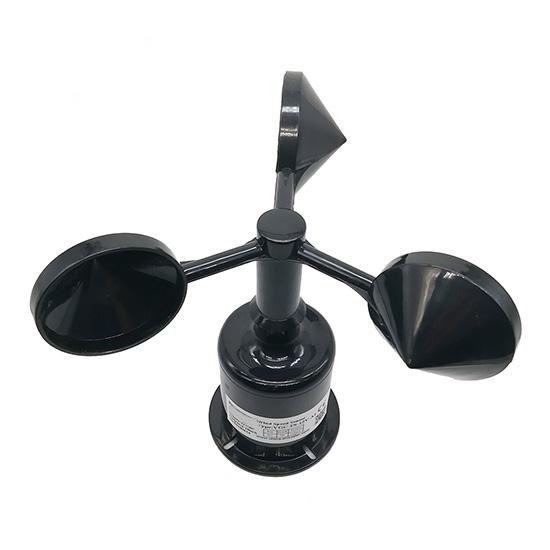

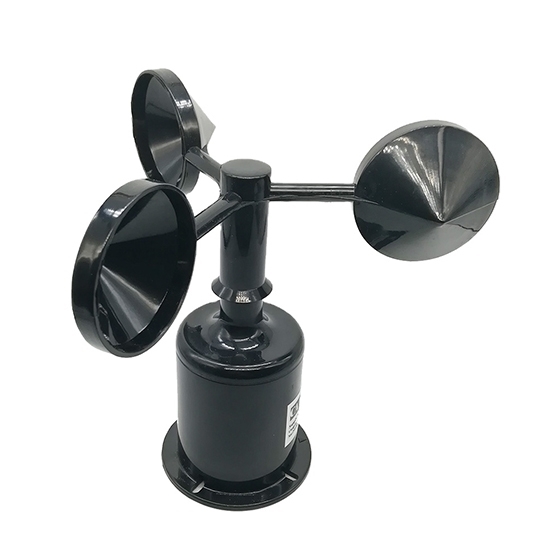

3-Cup Anemometer, 0~70 M/s Wind Speed Sensor, RS 485 Output

0 reviews • Write a review

from

$194.77

Ex Tax: $194.77

Stock: In Stock
Model: RDDLZ-3CAM-070
Weight: 1.00
SKU: RDDLZ-3CAM-070

Available Options

Power Supply

Output Signal

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

3-cup anemometer with 0-70 m/s wind speed measurement range. With relay function, the three-cup wind speed sensor can be directly based on wind speed value of other equipment for switching control. It can also output wind speed RS 485 signal, pulse and voltage signals. The air velocity gauge has wide applications in advertising barrier, weather station, ocean, environment, airport, port, laboratory, industry and agriculture and transportation, etc.

Specification

Model	RDDLZ-YGC-FS
Output Signal (Optional)	Pulse: high 5V, low 0V level signal
	RS-485
	RS-232
Wind Speed Range	0~70 m/s
Accuracy	± (0.4 + 0.03V) m/s (V: Real-time wind speed value)
Power Supply (Optional)	DC 5V, 9-30V
Resolution	0.1 m/s
Starting Wind Speed	≤0.5 m/s
Operating Temperature	-36 ~ +60℃, humidity ≤100% RH
Protection Class	IP64
Cable Rating	300V 80℃
Max Power Consumption	0.48W

3-Cup Anemometer Wiring

Wire Color	Output Signal
Wire Color	Pulse	RS-485	RS-232
Brown	Vcc	Vcc	Vcc
Black	0V	0V	Computer RX serial port Foot 2
Blue	Signal +	485-B	Computer TX serial port Foot 3
Green	Signal -	485-A	0V

3-Cup Anemometer Dimension Diagram (Unit: mm)

lnstallation Aperture	Distribution Diameter	Air Diameter
3.2mm	63mm	15mm

Tips: Precautions for 0~45 m/s 3-cup anemometer installation.

When the 3-cup anemometer is unpacked, it should be checked carefully for any signs of shipping damage.
Proper placement of the wind speed sensor is very important. Eddies from trees, buildings, or other structures will greatly influence wind speed observations.
To get meaningful data for most applications, locate the 3-cup anemometer well above or upwind from obstructions.
For some applications, it may not be practical or necessary to meet these requirements.
Flange mounted, fix four screws on the bracket and keep the wind speed sensor horizontal.
Connector dimension: Ф15mm (recommended reserving Ф25mm for wiring).
