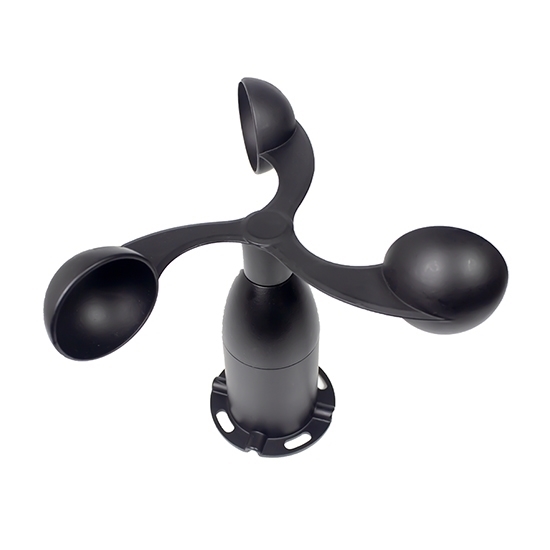

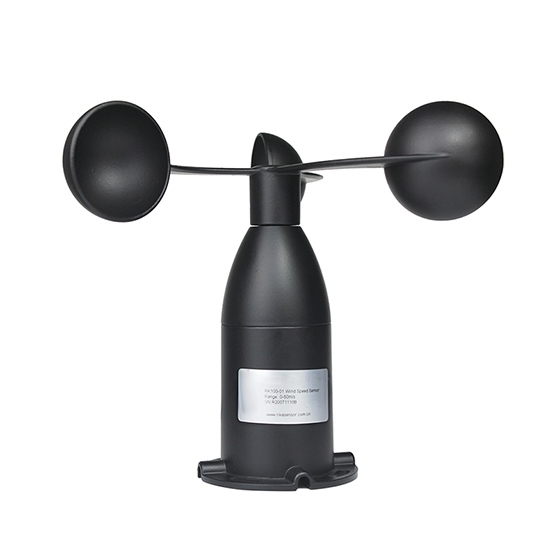

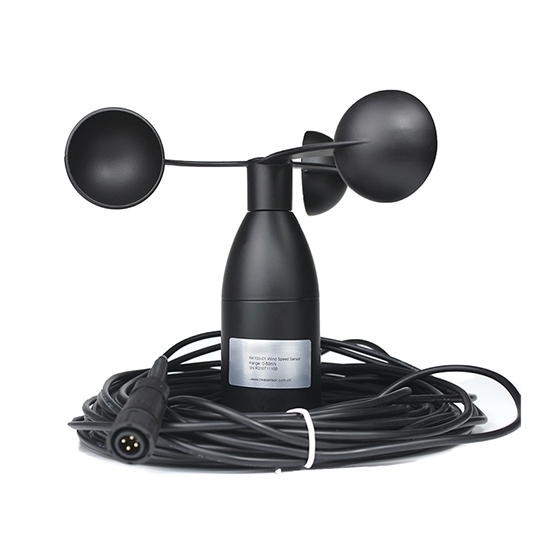

3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output

3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output
3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output
3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output
3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output
3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output
3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output
3-Cup Anemometer, 0~60 M/s Wind Speed Sensor, RS 485 Output
0 reviews • Write a review
from
$189.78
Ex Tax: $189.78
  • Stock: In Stock
  • Model: RDDLZ-3CAM-060
  • Weight: 1.00
  • SKU: RDDLZ-3CAM-060

Available Options

Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Three-cup anemometer for sale online. Wind speed range 0~60 m/s, output signals pulse/4-20mA/RS-485/0-2V/5V/10V for selection. The air velocity sensor outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation.

Specification

ModelRDDLZ-RK100-01
Output Signal (Optional)Pulses4-20mARS-4850-2V/ 0-5V/ 0-10V
Power SupplyDC 5-24VDC 12-24VDC 12-24VDC 12-24V
Load Capacity＞2kΩ＜500Ω-＞2kΩ
Wind Speed Range0~60 m/s
Accuracy± (0.3 + 0.03V) m/s (V is the current wind speed)
Response Time＜1s
Starting Threshold＜0.3 m/s
Limit Wind Speed70 m/s
Ingress ProtectionIP65
Operating Temperature-30 ~ +70℃
Net Weight240g
DimensionCup rotor: Ф 220mm, Height: 175mm
Main MaterialCup: 304 stainless steel, main body: aluminum alloy
FinishPolyester powder electrostatic spraying (black))
Storage Condition10~60℃ @ 20%-90% RH

Features

  • 3-cup anemometer has built-in digital circuit, with strong anti-RFI and EMI ability and automatic temperature compensation function.
  • Shell of the wind speed sensor is made of high-strength aluminum alloy, wind cups are made of 304 stainless steel, and the PCB board is coated with anti-corrosion coating. Waterproof and corrosion resistant.
  • The wind speed gauge has a sealing ring inside and at the rotating position, which has good sealing performance and prevents water, salt spray and dust from entering.
  • The three-cup anemometer has low starting threshold, strong corrosion resistant ability, massive all-metal construction, easy Installation.

3-Cup Anemometer Output Characteristics

  • Pulses Output

Characteristic transfer function:

V = 0.667*F

(where V = wind speed (m/s), F = output frequency (Hz) )

  • Current Output

  • Voltage Output

Characteristic transfer function:

V = U/ (full scale voltage - zero point voltage) * 30

(where V = wind speed (m/s), U = output voltage (V) )

  • RS-485 Output

lf the transmission distance is over 100m, please add a 120Q terminal matching resistances on the front endand back end of bus interface respectively. See the modbus communication protocol specification.

3-Cup Anemometer Dimension Diagram (Unit: mm)


Tips: 0-10V output signal conversion calculation for 0-60m/s anemometer.

3-cup anemometer wind speed range is 0~60m/s, 0-10V output. When the output signal is 5V, calculate the current wind speed value.

The span of this wind speed range is 60m/s, expressed by a 10V voltage signal,
60m/s ÷ 10V = 6m/s /V, that is, a voltage of 1V represents a wind speed change of 6m/s.

The measured value is 5V － 0V = 5V. 5V*6m/s /V = 30m/s. The current wind speed is 30m/s.

The calculation formula is:
Wind speed = 6*voltage, the unit of voltage value is V.
