8kW (10kVA) Portable Diesel Generator, 1 Phase/3 Phase

0 reviews • Write a review

from

$5,029.15

Ex Tax: $5,029.15

Stock: In Stock
Model: RDDLZ-DG-8K
Weight: 1.00
SKU: RDDLZ-DG-8K

Available Options

AC Voltage

Control Panel

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Description

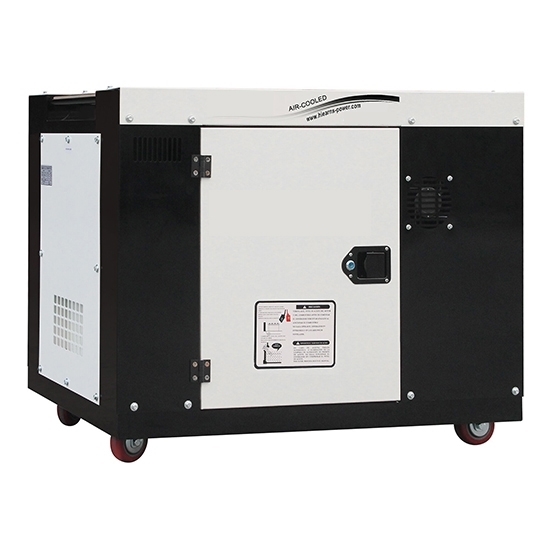

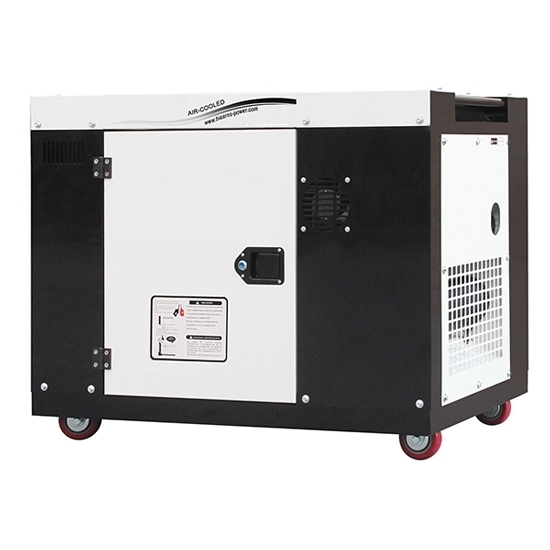

8kW (10kVA) 1 phase or 3 phase diesel generator is available, portable and silent design.
High quality 12V 30AH without maintenance battery for easy startups.
With single cylinder, 4-stroke air cooled diesel engine and full copper wire alternator ensure more stable operation.
Brushless alternator eliminates time consuming maintenance.

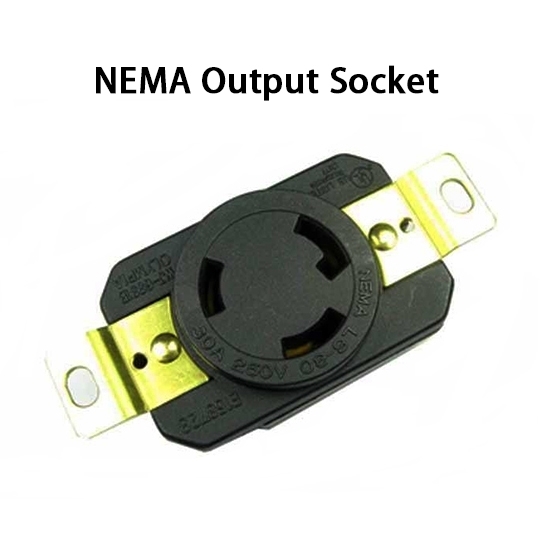

All kinds of sockets, 50Hz/60Hz AC voltages, ATS panel for selection.
CE, ISO9001-2000 aprroved, 1 year warranty.

Specifications

Model		DG11000SE
Generator	Frequency	50Hz	60Hz
	AC Voltage	120V, 220V, 230V, 120/240V, 220/380V, 230/400V
	Rated AC Output	7.5kW	8kW
	Max. AC Output	8kW	8.5kW
	Power Factor (cosΦ)	cosΦ=0.8
	Alternator Type	Self-excited
	Continuous Working Time	12h
	DC Output	12V 8.3A
	Phase	Single or Three phase
	Noise Level at 7m	70-73dB
	Fuel Tank Capacity	30L
	Starting Battery	12V 30AH *The starting batteries cannot be carried by air so you need to purchase it separately.
	Certificate	CE, ISO
	Working Environment Temperature	-10-40°C
Engine	Model	HR198FA
	Engine Type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore*Stroke	98*84mm
	Displacement Capacity	633cc
	Fuel	0# or -10# light diesel oil
	Lubrication Oil Volume	1.63L
	Combustion System	Direct injection
Standard Configuration		Voltmeter1 AC output socker2 AC circuit breaker1 Oil warning light1 Oil alert*1
Optional Configuration		DC circuit breaker Calculagraph Big wheel Three phase voltage Current meter ATS Remote control *Please contact us if you need the above options.
Dimensions	Dimension (LWH)	1130760860mm
	Gross Wight	230kg

Tips: Portable diesel generator maintenance

The routine maintenance cycle of small and portable diesel generator set is divided into daily, weekly, semi annual and annual maintenance. These Regulations are detailed in the general instructions. The maintenance personnel can ensure the normal operation of small diesel generator set as long as they comply with them.

If the unit is usually only in no-load or light load trial operation, and the load is more than 5% of the rated load, the unit shall be started for at least 4 hours a year. For the standby portable diesel generator set, at least once every half a year shall simulate the mains power outage, verify the starting performance and expected rated bearing capacity of the unit, check the automatic switch and relevant configuration of the standby power supply. A more thorough maintenance shall be carried out once a year, including change oil, oil filter, clean air filter and diesel filter. In addition, in order to ensure the safe and reliable operation of the diesel generator motor, the motor must be overhauled. The overhauling items include winding condition test and bearing inspection. In addition, the oil engine must be checked before and during operation.
