10kW (12.5kVA) Silent Diesel Generator, 1 Phase/3 Phase

0 reviews • Write a review

from

$5,600.79

Ex Tax: $5,600.79

Stock: In Stock
Model: RDDLZ-DG-10K
Weight: 1.00
SKU: RDDLZ-DG-10K

Available Options

AC Voltage

Control Panel

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Description

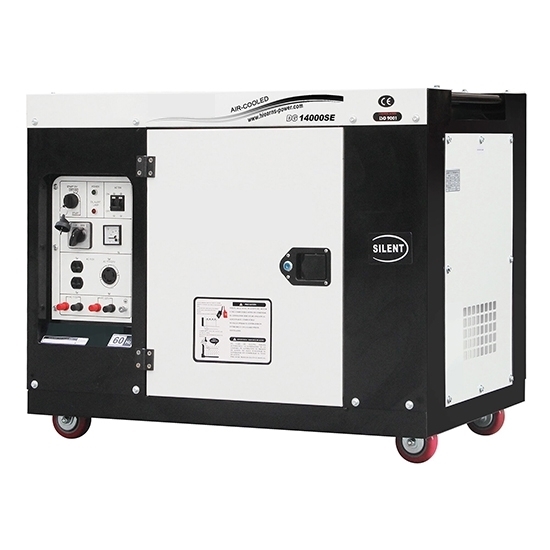

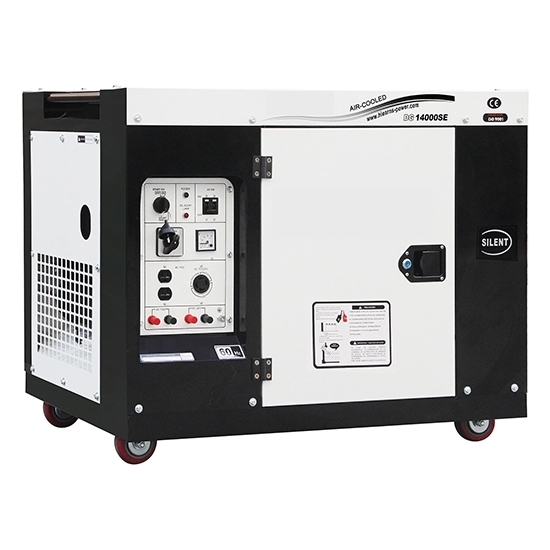

Three phase or single phase small diesel generator is 12.5kVA rated power, with V-twin air cooled single cylinder engine, 30L large fuel tank ensuring 11 hours of continuous output, four wheels for easy move. Portable and quiet generator is ideal for home emergency use or as standby power supply.

Specifications

Model		DG14000SE
Generator	Frequency	50Hz	60Hz
	AC Voltage	120V, 220V, 230V, 120/240V, 220/380V, 230/400V
	Rated AC Output	9.5kW	9.7kW
	Max. AC Output	10kW	10.5kW
	Power Factor (cosΦ)	cosΦ=0.8
	Continuous Working Time	11h
	Alternator Type	Self-excited
	DC Output	12V 8.3A
	Phase	Single or Three phase
	Noise Level at 7m	70-73dB
	Fuel Tank Capacity	30L
	Starting Battery	12V 36AH *The starting batteries cannot be carried by air so you need to purchase it separately.
	Certificate	CE, ISO
	Working Environment Temperature	-10-40°C
Engine	Model	HR1102F
	Engine Type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore*Stroke	102*88mm
	Displacement Capacity	718cc
	Fuel	0# or -10# light diesel oil
	Lubrication Oil Volume	1.65L
	Combustion System	Direct injection

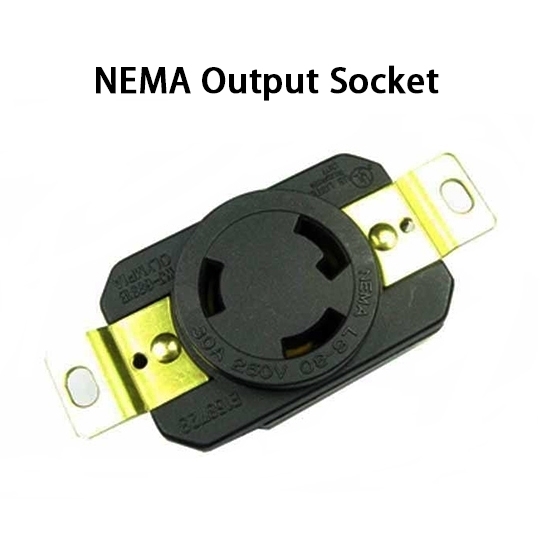

Standard Configuration		Voltmeter1 AC output socker2 AC circuit breaker1 Oil warning light1 Oil alert*1
Optional Configuration		DC circuit breaker Calculagraph Big wheel Three phase voltage Current meter ATS Remote control *Please contact us if you need the above options.
Dimensions	Dimension (LWH)	1130760860mm
	Gross Wight	235kg

Tips: Installation method of diesel generator set

The diesel generator set is installed on the concrete floor:

A reinforced concrete base shall be placed on the floor.
The concrete base passes the pressure test of more than 173kpa for one month.
Concrete base shall be at least 150 mm higher than the floor, extend at least 150 mm along each side of the unit chassis, and embed "J" or "L" foundation bolts on the cement base.

The diesel generator set is fixed on the chassis type oil tank:

Engine, shock absorber has been already installed between engine and oil tank.
The structure and strength of the oil tank must be able to bear the static and dynamic loads of the unit.
There must be a certain distance between the tank bottom and the ground for maintenance.
