Description

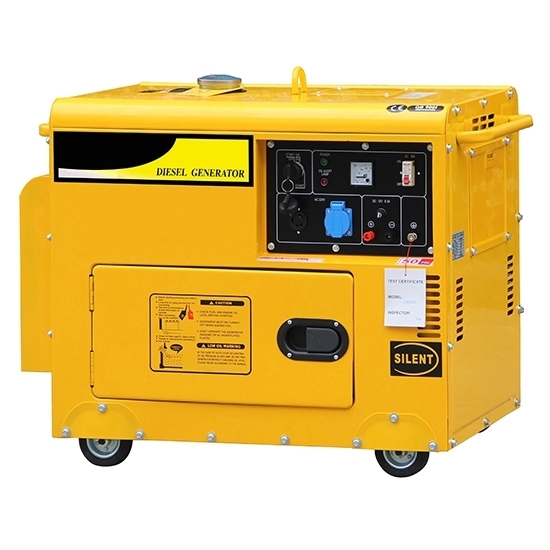

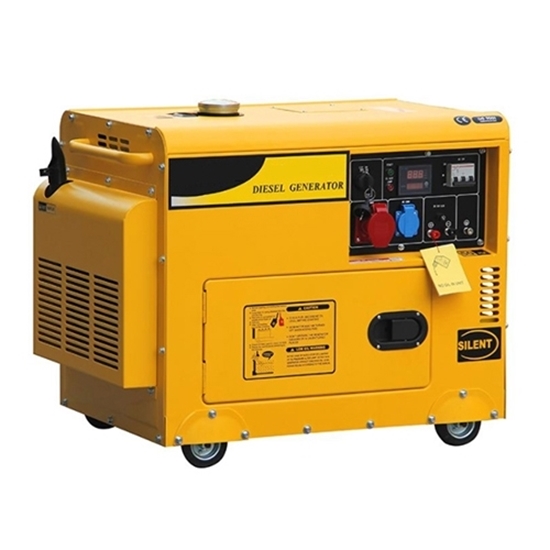

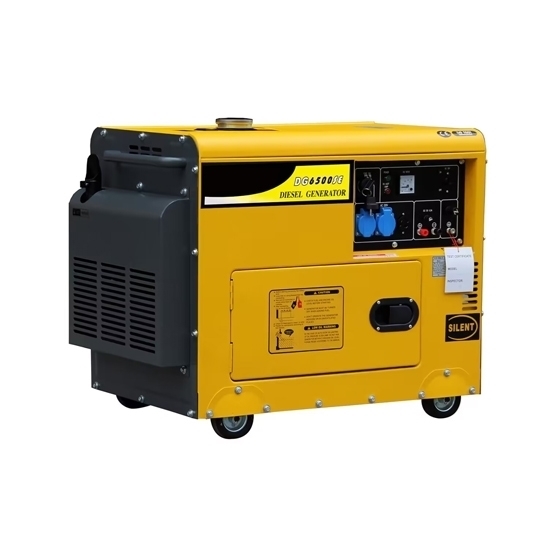

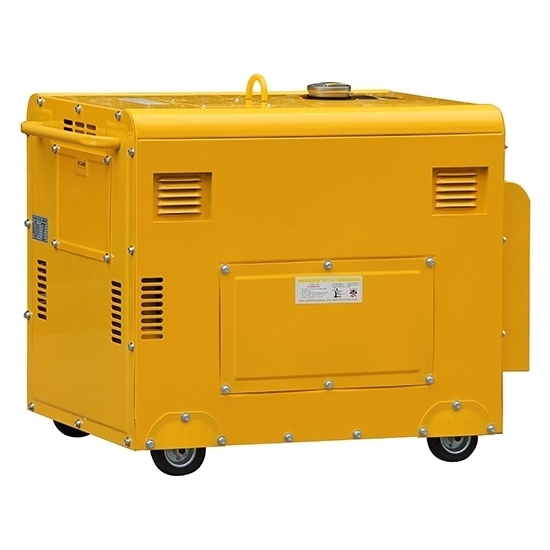

Super quiet diesel generator for sale at cheap price. 7kW (8.5kVA) small generator powered by 4 stroke air cooled direct injection diesel engine, 12 volt DC auxiliary charging, brushless single phase or three phase alternator eliminates time consuming maintenance. This portable diesel electric generator is in conformity to relevant standards of CE, ISO, and its properties reach to international level.

Specifications

Model		DG10000SE
Generator	Frequency	50Hz	60Hz
	AC Voltage	120V, 220V, 230V, 240V, 120/240V, 220/380V, 230/400V, 240/415V
	Rated AC Output	6.5kW	7kW
	Max. AC Output	7kW	7.5kW
	Power Factor (cosΦ)	cosΦ=0.8
	Alternator Type	Self-excited
	Continuous Working Time	11h
	DC Output	12V 8.3A
	Phase	Single or Three phase
	Noise Level at 7m	70-73dB
	Fuel Tank Capacity	27L
	Starting Battery	12V 30AH *The starting batteries cannot be carried by air so you need to purchase it separately.
	Certificate	CE, ISO
	Working Environment Temperature	-10-40°C
Engine	Model	HR195F
	Engine Type	Single-cylinder, vertical, 4-stroke air-cooled diesel engine
	Bore*Stroke	95*75mm
	Displacement Capacity	531cc
	Fuel	0# or -10# light diesel oil
	Lubrication Oil Volume	1.65L
	Combustion System	Direct injection
Standard Configuration		Voltmeter1 AC output socker2 AC circuit breaker1 Oil warning light1 Oil alert*1
Optional Configuration		DC circuit breaker Calculagraph Big wheel Three phase voltage Current meter ATS Remote control *Please contact us if you need the above options.
Dimensions	Dimension (LWH)	960620790mm
	Gross Wight	164kg

Tips: Difference between diesel generator and gasoline generator

The fuel oil is different. The fuel of diesel generator is diesel, and the fuel of gasoline generator is gasoline. The fuel consumption of gasoline generator is higher than that of diesel generator.
The ignition type is different. For gasoline generator, the mixture is ignited with spark plug. For diesel generator, the mixture is ignited with the heat formed by compression.
The power range is different, the power of general gasoline generator is between 0.5-10kw. The power range of diesel generator is 2-2000kw.
Different places of use, gasoline generator is generally used for household lighting and air conditioning, while diesel generator is mainly used for main and standby power supply of hotels, breeding enterprises, chemical enterprises, etc.
