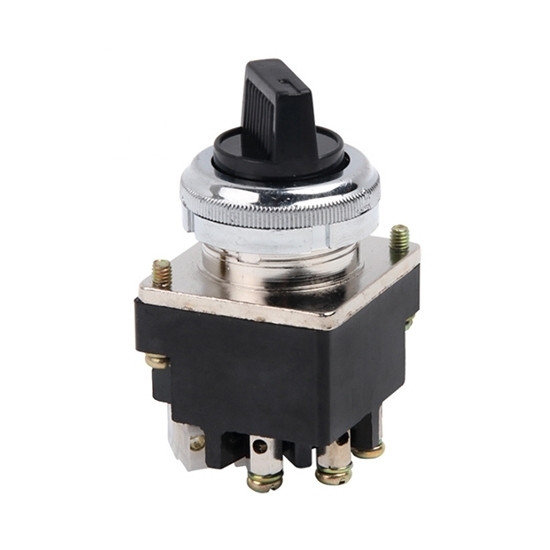

Joystick Switch, 380V, 10A, 2/ 3 Knob

0 reviews • Write a review

from

$30.87

Ex Tax: $30.87

Stock: In Stock
Model: RDDLZ-JS-LS2
Weight: 1.00
SKU: RDDLZ-JS-LS2

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Cheap price joystick switch with 10-15A operating current, 100Ω insulation resistance, 0℃~85 ℃ Operating temperature. It has the advantages of strong shock resistance, convenient operation and long service life.

Specification

Model	RDDLZ-LS2-2	RDDLZ-LS2-3
Product gear	2 knob	3 knob
Rated voltage	380VAC
Rated current	10A
Hole diameter	30mm
Operating current	10-15A
Insulation voltage	600V
Insulation resistance	100MΩ
Operating pressure	5-20N
Contact resistance	200Ω
Operating temperature	0℃~85 ℃
Operation method	Emergency
Installation size	22mm
Panel thickness	2-5mm
Reset method	Manual control
Certificate	CCC
Warranty	12 months

Dimension (mm)

Tips: Classification of Joystick Switch.
1. According to the use of contact elements.
1) Snap-moving contact element.
2) Driven contact element. The contact resetting methods are all non-automatic resetting.
2. According to the protection method.
1) Open type.
2) Protected type.
3. According to the type of non-automatic control actuator.
1) Cross type handle;
2) Rotary handle type;
3) Handle type;
4) Push button type;
5) Foot pedal type;
6) Button type
