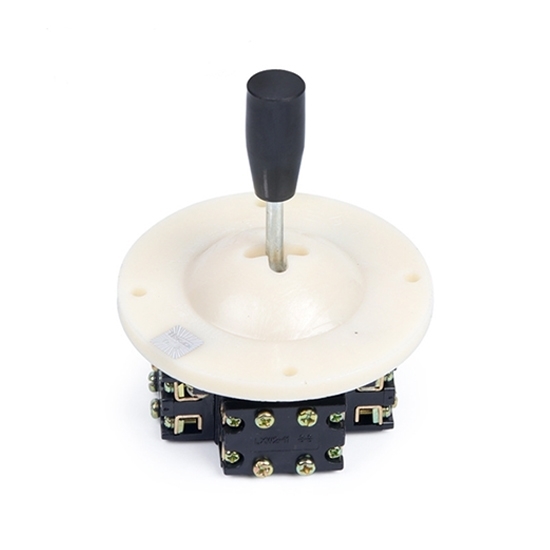

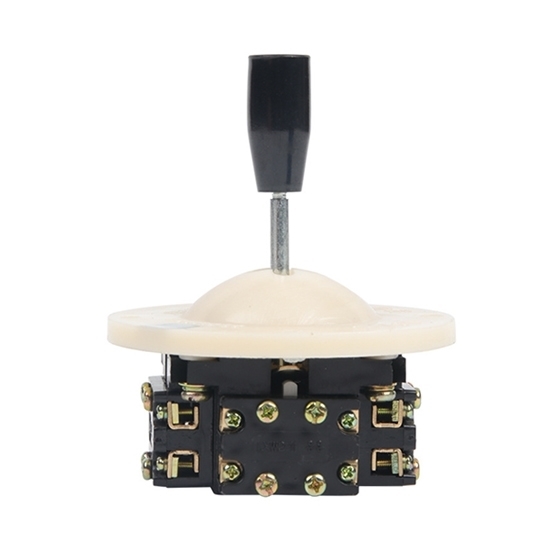

Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A

Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A
Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A
Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A
Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A
Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A
from
$35.00
Ex Tax: $35.00
  • Stock: In Stock
  • Model: RDDLZ-JS-HKA1-1
  • Weight: 1.00
  • SKU: RDDLZ-JS-HKA1-1

Available Options

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price joystick switch features 10-15A opertaing current, 600V insulation voltage, which with self-cleaning function and modular structure.

Specification

ModelRDDLZ-HKA1-1
Type4 way self-locking/ 4NO4NC
Rated voltage150V/ 250V/ 600V
Rated current15A/ 10A/ 4A
Hole diameter71mm
Operating current10-15A
Insulation voltage600V
Insulation resistance100MΩ
Operating pressure5-20N
Contact resistance200Ω
Operating temperature0℃-85 ℃
Operation methodEmergency
Installation size22mm
Panel thickness2-5mm
Reset methodManual control
CertificateCCC
Warranty12 months

Dimension (mm)

Details

Tips: Conditions of Using Joystick Switch.
1. Ambient air temperature
(1) The upper limit of ambient air temperature is +40℃, and the average value within 24h does not exceed +35℃.
(2) The lower limit of ambient air temperature is -5℃.
The ambient air temperature refers to the ambient air temperature near the main switch, and for the master switch with a shell, it refers to the ambient air temperature near the shell.
2. altitude
The altitude of the installation site does not exceed 2000m.
