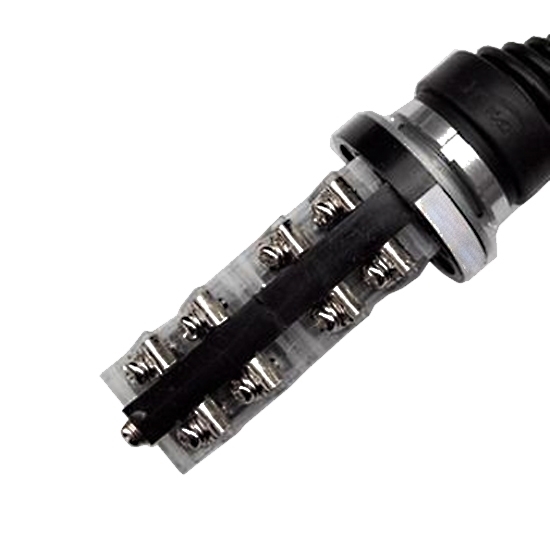

Joystick Switch, 4 Way

0 reviews • Write a review

from

$32.86

Ex Tax: $32.86

Stock: In Stock
Model: RDDLZ-JS-HKA1
Weight: 1.00
SKU: RDDLZ-JS-HKA1

Available Options

Short Description

Model

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Lower price joystick switch with 10-15A operating current, 5-20N operating pressure. The switch is widely used in factory equipment, instrumentation, marine equipment, medical equipment, CNC lathes, and oil extraction.

Specification

Model	RDDLZ-HKA1-41	RDDLZ-HKA1-42
Type	4 way automatic resetting/ 4NO	4 way automatic resetting/ 8NO
Rated voltage	150V/ 250V/ 600V
Rated current	15A/ 10A/ 4A
Hole diameter	30mm
Operating current	10-15A
Contact	NO
Insulation voltage	600V
Insulation resistance	100MΩ
Operating pressure	5-20N
Contact resistance	200Ω
Operating temperature	0℃~85 ℃
Operation method	Emergency
Installation size	22mm
Panel thickness	2-5mm
Reset method	Manual control
Certificate	CCC
Warranty	12 months

Dimension (mm)

Tips: Conditions of Using Joystick Switch.

1. Atmospheric conditions

Humidity: The relative humidity of the air at the installation site does not exceed 50% when the highest temperature is +40℃, and it can have a higher relative humidity at a lower temperature. The monthly average temperature of the wettest month does not exceed +25℃, and the monthly average of the month The maximum relative humidity does not exceed 90%. Measures must be taken for condensation on the product due to temperature changes.
Pollution degree: The pollution level of the master switch is specified as "Pollution Level 3", unless the specific product standard specifies otherwise or only after effective use of the shell, protective coating or sealing method, it may be reduced to "Pollution Level 2". It depends on the special purpose or micro-environment of the master switch.

2. Vibration

The switch should be able to work under vibration conditions with a frequency of 10 to 55 Hz and an amplitude of 0.75 mm (10 g).
