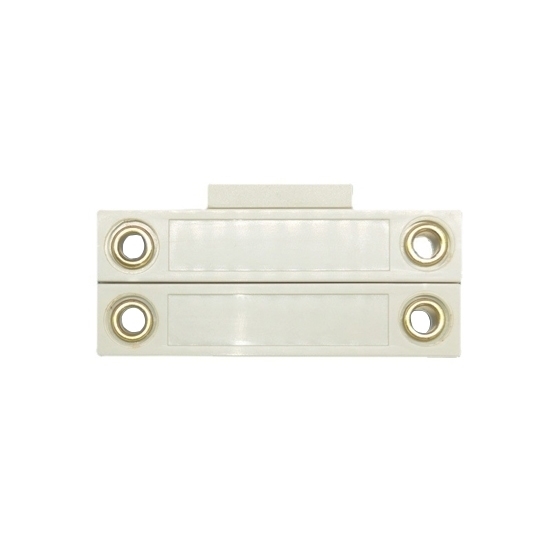

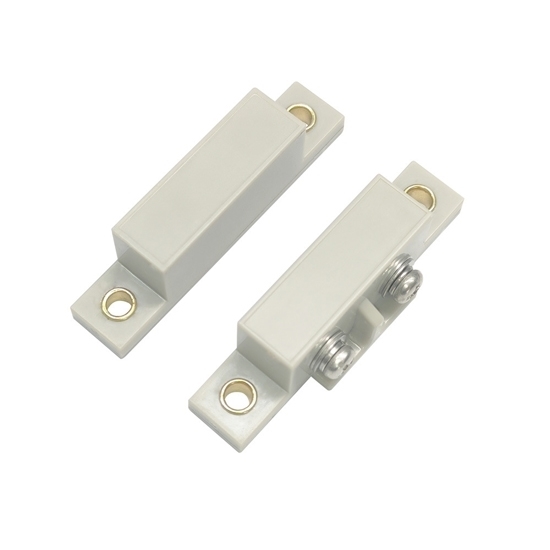

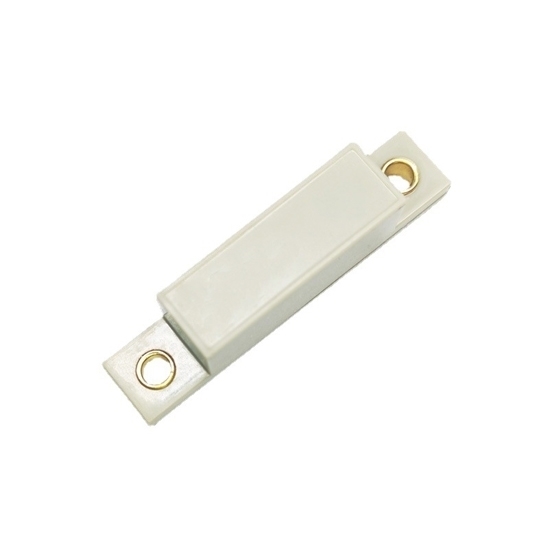

Magnetic Reed Proximity Sensor For Doors, NO Contact

0 reviews • Write a review

from

$37.99

Ex Tax: $37.99

Stock: In Stock
Model: RDDLZ-MPS-TPR1G
Weight: 1.00
SKU: RDDLZ-MPS-TPR1G

Available Options

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

RDDLZ magnetic reed proximity sensor is a device that detects the presence or absence of a magnetic field. This magnetic reed proximity switch is employed in scenarios where a non-contact, durable solution for detecting the proximity of magnetic objects is required, offering versatility in various industries, such as automotive, electronics, and home automation.

Specification

Model	RDDLZ-TPR1G-SO
Induction Distance	15mm (Min)
Contact Form	A (Normal Open)
Switch Power	10W
Switch Voltage	DC200V (Max)
Breakdown Voltage	DC250V (Min)
Switch Current	500mA (Min)
Load Current	1A (Max)
Contact Resistance	200mΩ (Max)
Insulation Resistance	10¹⁰Ω (Min)
Contact Capacity	0.3 Pf (typ.)
Working Temperature	-25℃~+80℃
Electrical Life	10⁸ Cycles (1.5V DC-1mA Resistance Load)
Protection Grade	IP40

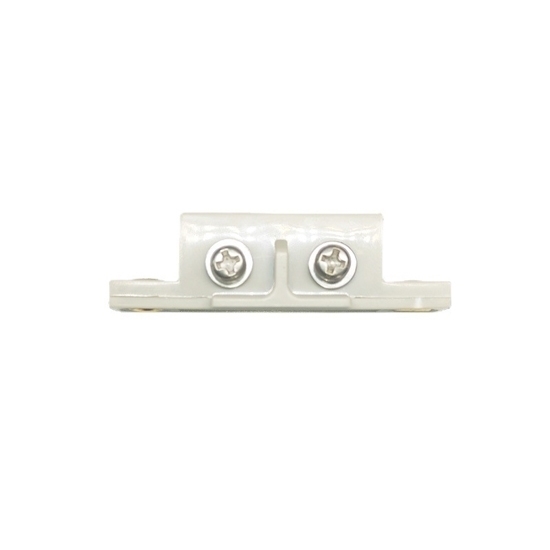

Wiring Method	Terminal Block
Shell Material	Flame-Retardant ABS

Note: This proximity sensor cannot be installed on magnetically permeable materials, such as iron, steel, etc., otherwise the characteristics of the sensor will deteriorate.

Dimensions (Unit: mm)

Wiring Diagram

Tips: What are the applications of magnetic reed proximity sensors?

Magnetic reed proximity sensors find diverse applications across various industries due to their reliability and versatility. These sensors consist of a reed switch enclosed in a glass tube, which closes in the presence of a magnetic field. Commonly used in security systems, they detect door and window openings, triggering alarms. In industrial settings, they monitor machinery by sensing the position of moving parts, ensuring safety and preventing malfunctions. In automotive applications, magnetic reed sensors contribute to speed sensing and gear position detection. They are also employed in level sensors for liquid level monitoring, such as in fuel tanks, and are integral to fluid and flow control systems. The simplicity, durability, and low power consumption of magnetic reed proximity sensors make them suitable for a wide range of applications where accurate and cost-effective proximity sensing is essential.
