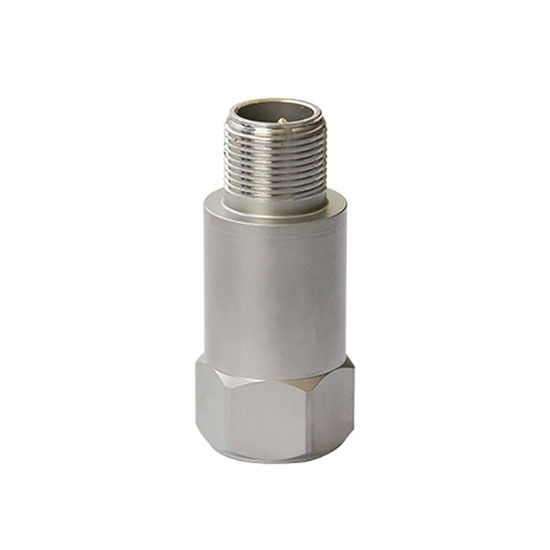

High-performance piezoelectric accelerometer sensor frequency response range is wide, 0-200g, 0-500g and 0-1000g range is optional, the output signal 4-20mA, 0-5V optional, suitable for long-term online monitoring. Suitable for industrial equipment monitoring, Internet of Things construction, strong anti-interference ability, piezoelectric accelerometer are stainless steel structure, double-layer shielding isolation, waterproof and dirt-proof, optional base M5, M6, M8 threads and magnetic holder mounting methods.

Parameters

Feature

• Accelerometer sensor uses the positive piezoelectric effect of piezoelectric material and has its own internal charge amplifier.
• Sensor noise is small, anti-interference ability is strong, suitable for long-distance measurement.
• Suitable for permanent installation and long-term online monitoring.
• Industrial accelerometer sensors are stainless steel structure, double shielding (isolation), sealed laser welding (waterproof, anti-oil).
• Piezoelectric accelerometer according to the site requirements to provide flexible installation and output mode.

Dimension (unit: mm)

Temperature Chart

Application

Tips: How to Install a Piezoelectric Accelerometer Sensor?

The Piezoelectric accelerometer is a device that measures acceleration and can be used to measure vibration and shock. The following steps are typically required to install this accelerometer sensor.

• Select a Mounting Location: Choose a location that accurately reflects the desired acceleration information. Ensure that the piezoelectric accelerometer can be influenced by the test object.
• Clean Surface: Before mounting the transducer, ensure that the mounting surface is clean and free of dust and oil to ensure the adhesive properties of the transducer.
• Adhesion: Use a suitable adhesive to attach the sensor to the selected location. Make sure the adhesive is of moderate hardness to avoid affecting the sensitivity of the sensor.
• Connecting Cable: Connect the cable of the piezoelectric accelerometer to the appropriate data acquisition system. Ensure that the connection is secure and reliable.
• Calibration: Perform the calibration of the piezoelectric accelerometer sensor before use to ensure the accuracy and stability of its output.

Attention should be paid to environmental factors such as waterproofing and dustproofing during installation to ensure proper operation of the acceleration sensor. It is recommended to refer to the installation manual of the accelerometer sensor and the manufacturer's recommendations.
