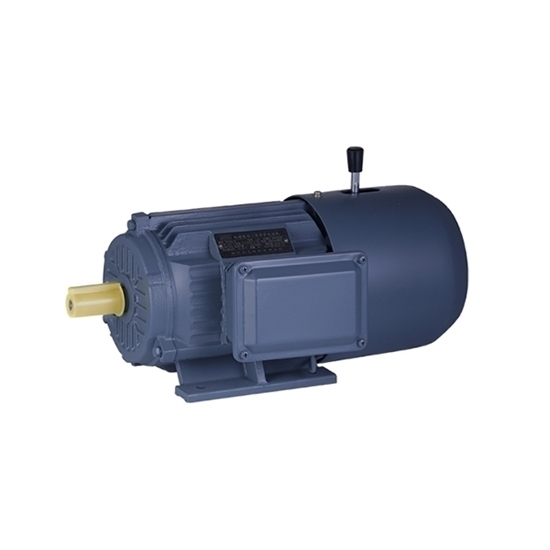

7.5 Hp (5.5kW) Brake Motor, 3 Phase, 2/4 Pole

0 reviews • Write a review

from

$1,696.31

Ex Tax: $1,696.31

Stock: In Stock
Model: RDDLZ-BM-132S
Weight: 1.00
SKU: RDDLZ-BM-132S

Available Options

Short Description

Number of Poles

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Magnetic brake motor brake motor with energizing power 90 watt, static braking torque 75Nm and 2.3 Tmax/ Tn maximum torque/ rated torque.

Specification

Model	RDDLZ-BM-131S1	RDDLZ-BM-132S
Rated power	7.5hp (5.5kW)
Rated voltage	380V (380V~480V can be customized)
Numbers of poles	2 pole	4 pole
Rated torque	18.0 N.m	36.5 N.m
Speed	2900r/ min	1435r/ min
Current	11.1A	11.6A
Efficiency	85%	85%
Power factor	0.88 cosφ	0.84cosφ
Locked-rotor torque/ rated torque	2 Tst/ Tn	2.2 Tst/ Tn
Weight	78kg	95kg
Static braking torque	75Nm
No-load brake lag time	0.25s
Energizing power	90W
Locked-rotor current/ rated current	7 Ist/ In
Maximum torque/ rated torque	2.3 Tmax/ Tn
Certificate	CE
Warranty	12 months

Dimension

Frame size	Mounting dimensions (mm)									Overall dimensions (mm)
Frame size	A	B	C	D	E	F	G	H	K	AB	AC	AD	HD	L
132S	216	140	89	38	80	10	33	132	12	280	275	210	315	585

Details

Tips: About power failure brake.

Electromagnetic brake is an additional device commonly used in electromagnetic brake motors, and it has two types: power-on braking and power-off braking. The energized braking method is fast and accurate in positioning. It is used for automatic and intelligent control equipment that requires precise positioning. It has certain limitations in the application. Packaging and printing, textiles, automated production lines, and other mechanical transmission systems with positioning and braking requirements are commonly used. In addition to the advantages of flexible control and fast braking speed, power-off braking means that the equipment can be safely braked under unexpected power outages and out of control. Ensure the safety of persons and facilities.
