Buy two or three jaw hydraulic puller online. Max stroke 70mm, max lateral pull distance 500mm, and max longitudinal drawing saw 250mm. High efficiency 50 ton hydraulic bearing puller is an important tool for automobile manufacturing and maintenance.

Specifications

• Model: RDDLZ-HHL-50
• Output: 50 ton
• Lateral Pull Distance: 200~500mm
• Max Longitudinal Drawing Saw: 250mm
• Max Stroke: 70mm
• Package Size: 52x25x22cm
• Weight: 42.9kg

Features

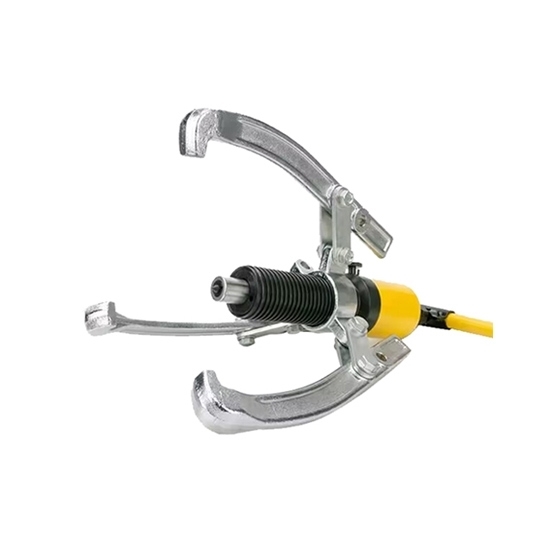

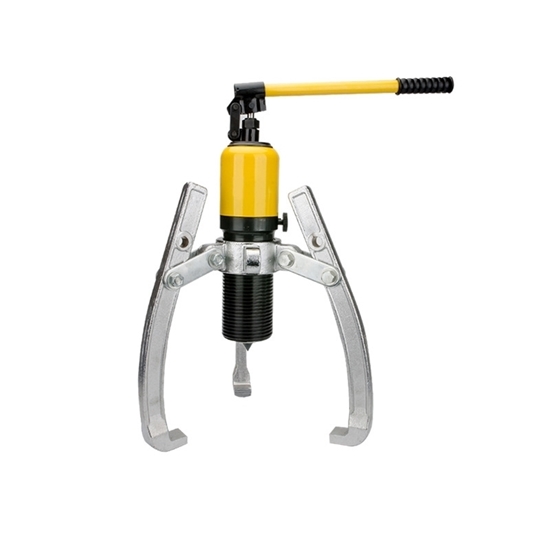

• 2/3 jaw hydraulic puller with a detachable handle and 360 pressure direction, which is easy to use in confined spaces.
• The hydraulic cylinder adopts solid steel integral processing and forming design, which has a high safety factor.
• The hydraulic puller can be used both horizontally and vertically. The elastic thimble can accurately locate the center. Both the claw hook and the claw hook frame are forged with high-strength alloy steel that is not easily deformed.

Note: 5 ton, 10 ton, 15 ton and 20 ton hydraulic pullers are packed in plastic boxes to store tools and accessories, and 30 ton and 50 ton hydraulic pullers are packed in wooden boxes.

Dimension (Unit: mm)

2/3 Jaw Installation Diagram

Details

Applications

RDDLZ hydraulic pullers are commonly used in the automotive, manufacturing and repair industries to remove press-fit components such as bearings, gears, pulleys, bushings, sleeves, couplings and other similar parts.

Tips: How to maintain a hydraulic puller?

• Regular inspection: Inspect your hydraulic puller regularly for any signs of wear or damage. Check the hoses, fittings, and pump for leaks, cracks, or other damage.
• Lubrication: Lubricate the hydraulic puller regularly to prevent corrosion and ensure smooth operation. Use a high-quality lubricant that is suitable for hydraulic equipment.
• Cleanliness: Keep your hydraulic puller clean by wiping it down after each use. Use a rag or cloth to remove any dirt, debris, or oil from the surface of the puller.
• Storage: Store your hydraulic puller in a clean, dry place away from moisture and other contaminants. Protect it from dust and debris by covering it with a cloth or plastic sheet.
• Maintenance schedule: Follow the maintenance schedule recommended by the manufacturer. This may include regular oil changes, filter replacements, and other routine maintenance tasks.
• Professional servicing: Have your hydraulic puller serviced by a professional if you notice any issues or if it is due for a major overhaul. A professional can identify and repair any problems before they become more serious.
