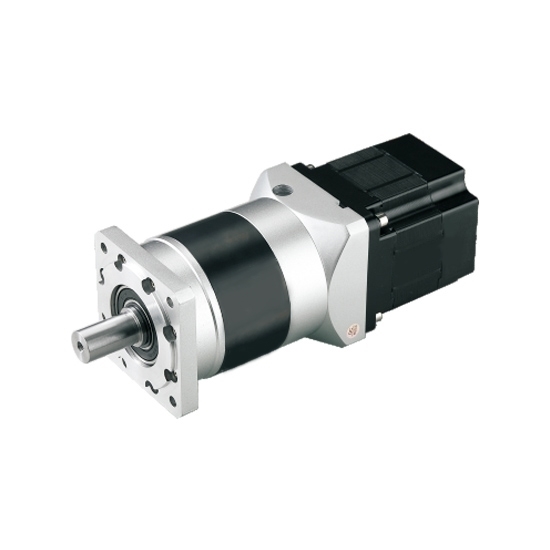

450 W DC Planetary Gear Motor, 12V/24V/48V

0 reviews • Write a review

from

$622.98

Ex Tax: $622.98

Stock: In Stock
Model: RDDLZ-GEAR-P450
Weight: 1.00
SKU: RDDLZ-GEAR-P450

Available Options

Short Description

Gear Ratio

Voltage (DC)

With Brake

Controller for 24V Motor

Controller for 36V Motor

Controller for 48V Motor

Controller for 12V Motor

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Compact DC planetary gear motor for sale, 450W, 3000 rpm rated speed, works at 12V, 24V, 36V or 48V power supply, brushless design for your electric car, and selectable gear ratio from 4:1 to 250:1. Power, voltage, speed, shaft, motor length and lead can be customized.

Features:

12V, 24V, 36V, 48V DC are available.
The planetary gearbox ratio is up to 250:1.
Power, voltage, speed, shaft, motor length and lead can be customized.
BLDC motor with a planetary gearbox has low power consumption, high efficiency and longer battery life.
Planetary gear motor provides high torque at low speeds.
Easy for speed adjustment and reversible direction.

Specifications:

Motor Model	D5BLD450-12A-30S	D5BLD450-24A-30S	D5BLD450-36A-30S	D5BLD450-48A-30S
Motor Type	BLDC Motor
Power	450W
Voltage	12V DC	24V DC	36V DC	48V DC
Rated Current	46.88A	23.44A	15.63A	11.72A
No Load Current	＜10.2A	＜7.13A	＜6.5A	＜5.61A
No Load Speed	3300 rpm
Rated Speed	3000 rpm
Rated Torque	1.43 N·m
Peak Torque	4.30 N·m
Motor Dimension	86mm
Shaft Diameter	14mm
Construction	Permanent Magnet
Direction of Rotation	CW/CCW
Certificate	CCC, CE, ROSH, LVD, EMC
Recommended drive model	BLDC-100A	BLDC-50A	BLD-750	BLD-750
Gear Ratio	4, 5, 7, 10, 16, 20, 25, 28, 35, 40, 50, 70, 80, 100, 125, 140, 175, 200, 250
What Parameters of RDDLZ Planetary Gear Motor Can Be Customized?
Power	Yes
Voltage	Yes
Speed	Yes
Shaft	Yes
Motor Length	Yes
Motor Lead	Yes

Note: If you would like CAD drawings of the motor and planetary gearbox, please contact us.

Speed-torque curve

Instantaneous maximum torque line
The maximum torque momentarily impacts the load when the motor is started.
Beyond this torque, the over-current protection of the driver will cause the motor to stop.
Short time operation area
The motor can run at a short time within this torque range at different speeds.
If the operation time is too long, the motor will generate heat, which may cause the motor to stop or burn.
Rated operating torque line
The rated torque of motor running at different speeds, and the motor can run for a long time at this torque.
Continuous operating area
When the motor rotates at different speeds, it runs continuously in this corresponding zone.

Tips: Common causes of oil leakage of planetary gear motor

Rubber sealing products are aging, resulting in poor sealing effect
When the reducer is produced, the processing is not concentric, resulting in serious wear of the seal and oil leakage
When the reducer is connected to the end face of the factory, the sealing treatment is simple, or there is no sealing treatment, resulting in oil leakage
The bearing is damaged, causing serious wear of the seals and oil leakage
The end face connecting bolts are loose, causing oil leakage
