2/3 Jaw Hydraulic Puller 10 Ton

0 reviews • Write a review

from

$300.76

Ex Tax: $300.76

Stock: In Stock
Model: RDDLZ-HP-10T
Weight: 1.00
SKU: RDDLZ-HP-10T

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

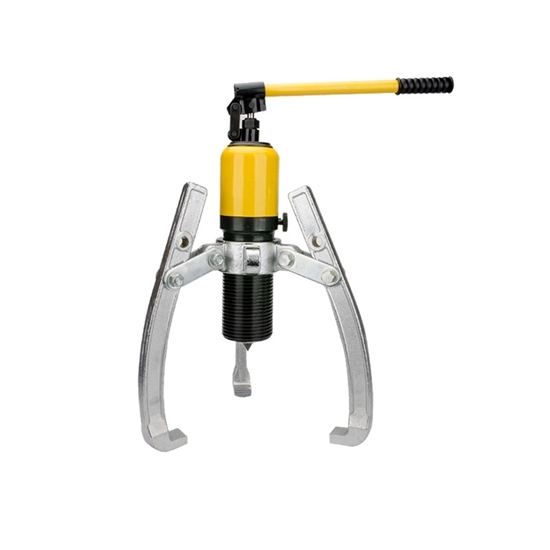

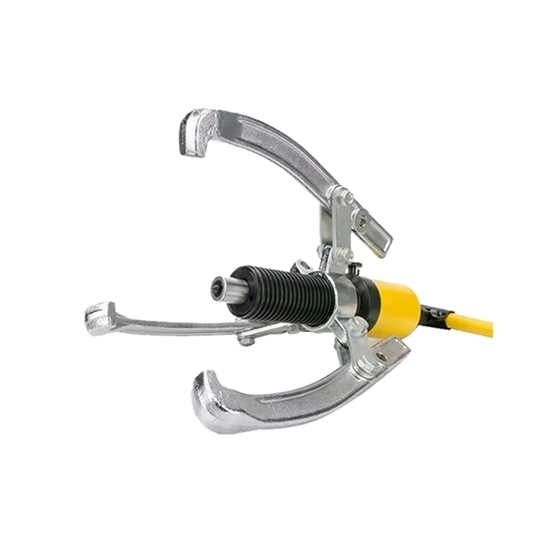

The provided 10 ton hydraulic puller is designed for removing bearings, pulleys, and gear components. Two or three jaw hydraulic puller with a max stroke 60mm, max lateral pull 250m and a max longitudinal pull 170mm, are faster and more efficient than traditional mechanical pullers.

Specifications

Model: RDDLZ-HHL-10
Output: 10 ton
Lateral Pull Distance: 50~250mm
Max Longitudinal Drawing Saw: 170mm
Max Stroke: 60mm
Package Size: 43x33x11cm
Weight: 11kg

Features

2/3 jaw hydraulic puller with a detachable handle and 360 pressure direction, which is easy to use in confined spaces.
The hydraulic cylinder adopts solid steel integral processing and forming design, which has a high safety factor.
The hydraulic puller can be used both horizontally and vertically. The elastic thimble can accurately locate the center. Both the claw hook and the claw hook frame are forged with high-strength alloy steel that is not easily deformed.

Note: 5 ton, 10 ton, 15 ton and 20 ton hydraulic pullers are packed in plastic boxes to store tools and accessories, and 30 ton and 50 ton hydraulic pullers are packed in wooden boxes.

Dimension (Unit: mm)

Main Body			Jaw Part
E	F	G	A	B	C
56	26	97	14	30	30

2/3 Jaw Installation Diagram

Details

Applications

RDDLZ hydraulic pullers are commonly used in the automotive, manufacturing and repair industries to remove press-fit components such as bearings, gears, pulleys, bushings, sleeves, couplings and other similar parts.

Tips: What types of parts can a hydraulic puller remove?

A hydraulic puller can remove various types of press-fit parts, including bearings, gears, pulleys, bushings, sleeves, couplings, and other similar components. These parts are typically used in machinery, equipment, vehicles, and other applications where they need to be press-fitted or pressed into place. Hydraulic pullers are commonly used in industries such as automotive, manufacturing, and maintenance, where heavy-duty components need to be removed for repair or replacement. The hydraulic force generated by the puller makes it easier and more efficient to remove these components, saving time and effort while minimizing the risk of damage or injury.
