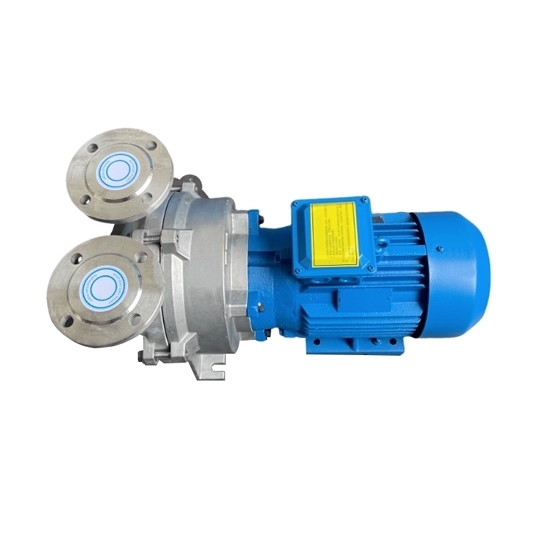

10 HP (7.5 KW) Water Ring Vacuum Pump
from
$3,945.24
Ex Tax: $3,945.24
- Stock: In Stock
- Model: RDDLZ-WRVP-10
- Weight: 1.00
- SKU: RDDLZ-WRVP-10
The unique design of the discharge port can protect the vacuun pump from the over-pressure to ensure the best efficient performance in the working range of the pump. 10 hp water ring pump often used in a variety of industries including chemical processing, food and beverage, pharmaceuticals, and more, where they play a critical role in processes such as vacuum filtration, distillation, drying, and degassing.
Features:
- Equipped with cavitation protection pipe interface.
- Flexible exhaust port design, no over compression.
- Designed with coaxial direct connection, which saves space and is easy to install.
- Vacuum pump adopts high quality mechanical seal as standard configuration.
Specification:
- Model: RDDLZ-2BV5121
- Power: 10 hp (7.5 kW)
- Rated Voltage: 380V
- Phase: 3 phase
- Frequency: 50 Hz
- Max Gas Volume: 280 m3/h
- Extreme Pressure: 3300 Pa
- Noise: 69 dB
- Material: stainless steel
- Net Weight: 136kg

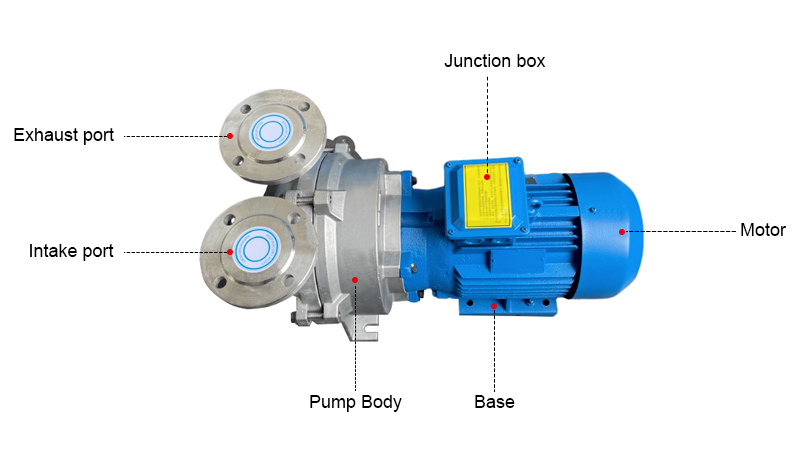

Details:

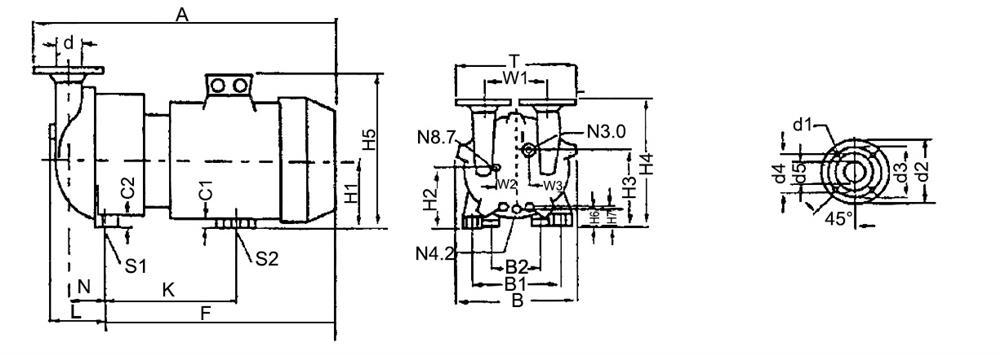

Dimension (Unit: mm)
| 2BV5-121 | A | B | B1 | B2 | C1 | C2 | H1 |
| 771 | 347 | 265 | 216 | 36 | 26 | 150 | |
| H2 | H3 | H4 | H5 | H6 | H7 | K | |
| 165 | 217 | 385 | 363 | 39 | 62 | 425 | |
| L | F | N | S1 | S2 | T | d1 | |
| 147 | 584 | 105 | φ12×23 | φ12 | 382 | 19 | |
| d2 | d3 | d4 | d5 | W1 | W2 | W3 | |
| 182 | 145 | 113 | 66.5 | 200 | 57 | 29 | |
| N3.0 | N4.2 | N8.7 | / | / | / | / | |
| G3/4" | G3/8" | G3/8" | / | / | / | / |
Application:
Tips: Water Ring Vacuum Pump Disadvantages
- Water consumption. Water ring vacuum pumps require a continuous supply of water to create the sealing liquid ring that forms the vacuum. This can result in significant water consumption.
- Environmental impact. The water used in water ring vacuum pumps can become contaminated with process gases or chemicals, and may require treatment before disposal.
- Operating costs. Water ring vacuum pumps typically require a constant supply of water and may also require water treatment equipment, such as separators or condensers, to maintain proper operation. This can result in higher operating costs compared to other types of vacuum pumps.
