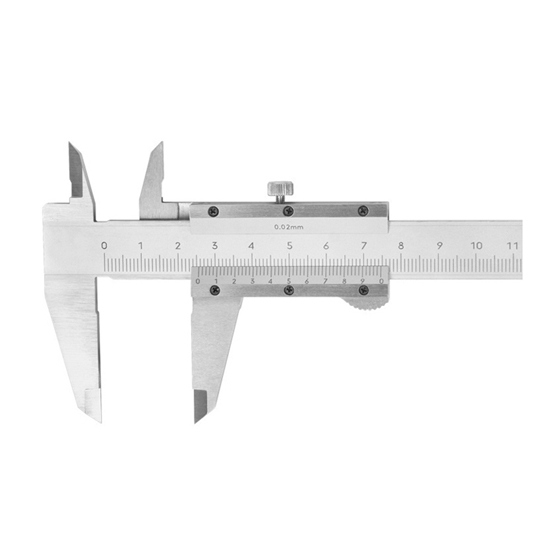

300 Mm Vernier Caliper, 0.02 Mm Reading

0 reviews • Write a review

from

$167.46

Ex Tax: $167.46

Stock: In Stock
Model: RDDLZ-VC-300
Weight: 1.00
SKU: RDDLZ-VC-300

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided vernier scale is designed for measuring length, depth, inner diameter and outer diameter in science labs, medical purposes, steel industries and aerospace industries. 300 mm vernier caliper is equipped with a depth gauge, carbon steel materials, 0.02 mm reading, suitable for science labs, medical purposes, steel industries, aerospace industries, etc.

Features

<Made of Carbon Steel> The mechanical vernier caliper is made of carbon steel, and the main caliper and ruler frame are heat treated as a whole.

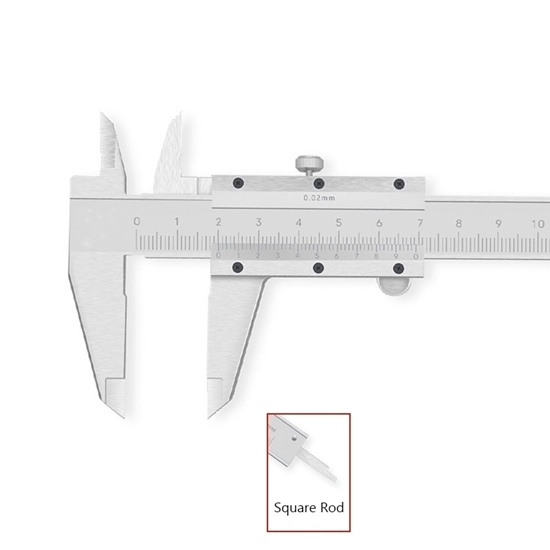

<Square Depth Rod> The depth caliper is hidden in the inner groove. 300 mm vernier caliper is available with square depth rods.
<Locked Anywhere> High precision vernier scale comes with a semi-circular non-slip push handle and metal fastening screws. Any position of the vernier caliper can be locked, and the reading is retained for easy operation.
<Durable Measuring Surface> Matte chrome with laser-scored lines. Matte chrome plating on the engraved surface of the main ruler and ruler frame, laser engraved lines, exquisite and durable. The scale of the vernier caliper is clear and the measurement is accurate.

Specifications

Model: RDDLZ-VC-SG300
Range: 0~300 mm
Weight: 750g
Material: Carbon Steel
Reading: 0.02 mm
Depth Rod Type: Square
Product Packaging: Plastic Box

Dimension (Unit: mm)

Range (mm)	0~300	Reading (mm)	0.02
a (mm)	20	t (mm)	4
A (mm)	64	B (mm)	27.5
Material	Carbon Steel	Remarks	With depth gauge

Details

Vernier Caliper Applications

The vernier caliper is a common vernier gauge used by assemblers and equipment maintenance personnel. It can directly measure the outside diameter, inside diameter, thickness, width, depth and hole distance of parts. RDDLZ 100~600 mm vernier calipers are widely used in scientific laboratories, medical applications, steel industry, aerospace industry and education sector.

Tips: Why use a vernier caliper?

The vernier caliper is a contact measuring tool with simple operation and calibration, various measurement functions and intuitive data transmission. However, since the vernier caliper is also a relatively precise measuring instrument, during the use of the vernier caliper, it should avoid dropping, collision, etc.
