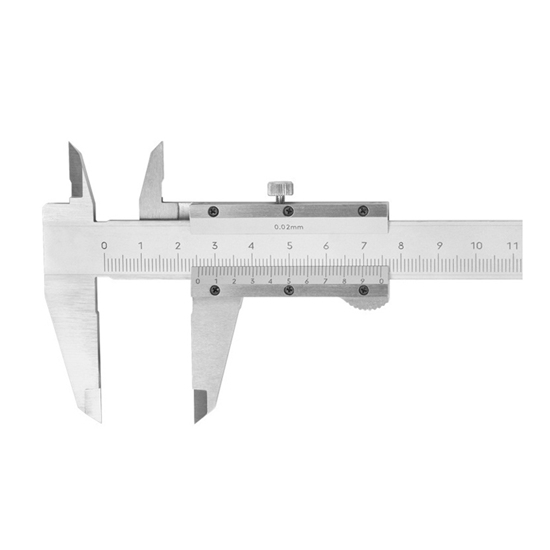

200 Mm Vernier Caliper, 0.02 Mm Reading

0 reviews • Write a review

from

$126.26

Ex Tax: $126.26

Stock: In Stock
Model: RDDLZ-VC-200
Weight: 1.00
SKU: RDDLZ-VC-200

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

The provided 200 mm vernier caliper is a measuring device used to provide very precise length, depth, inner diameter and outer diameter measurements. It is available with a square depth rod, and carbon steel materials, 0.02 mm reading. Mechanical vernier scale is commonly used in science labs, medical purposes, steel industries, aerospace industries, etc.

Features

<Made of Carbon Steel> The mechanical vernier caliper is made of carbon steel, and the main caliper and ruler frame are heat treated as a whole.

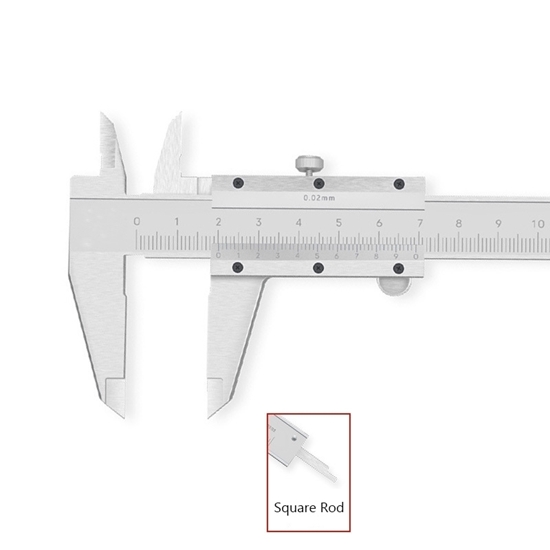

<Square Depth Rod> The depth caliper is hidden in the inner groove. 200 mm vernier caliper is available with square depth rods.
<Locked Anywhere> High precision vernier scale comes with a semi-circular non-slip push handle and metal fastening screws. Any position of the vernier caliper can be locked, and the reading is retained for easy operation.
<Durable Measuring Surface> Matte chrome with laser-scored lines. Matte chrome plating on the engraved surface of the main ruler and ruler frame, laser engraved lines, exquisite and durable. The scale of the vernier caliper is clear and the measurement is accurate.

Specifications

Model: RDDLZ-VC-SG200
Range: 0~200 mm
Weight: 810g
Material: Carbon Steel
Reading: 0.02 mm
Depth Rod Type: Square
Product Packaging: Plastic Box

Dimension (Unit: mm)

Range (mm)	0~200	Reading (mm)	0.02
a (mm)	17	t (mm)	3.5
A (mm)	50	B (mm)	23.5
Material	Carbon Steel	Remarks	Square depth rod

Details

Vernier Caliper Applications

The vernier caliper is a common vernier gauge used by assemblers and equipment maintenance personnel. It can directly measure the outside diameter, inside diameter, thickness, width, depth and hole distance of parts. RDDLZ 100~600 mm vernier calipers are widely used in scientific laboratories, medical applications, steel industry, aerospace industry and education sector.

Tips: Carbon Steel Vernier Caliper vs. Plastic Vernier Caliper

Vernier calipers are available in carbon steel and plastic. If the use environment is highly corrosive to steel, please use a plastic vernier caliper. If the use environment is good, it is recommended to use a carbon steel vernier caliper.
