480KV Brushless Motor For Drone, 5S/6S

0 reviews • Write a review

from

$421.89

Ex Tax: $421.89

Stock: In Stock
Model: RDDLZ-BDM-480
Weight: 1.00
SKU: RDDLZ-BDM-480

Available Options

Speed

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

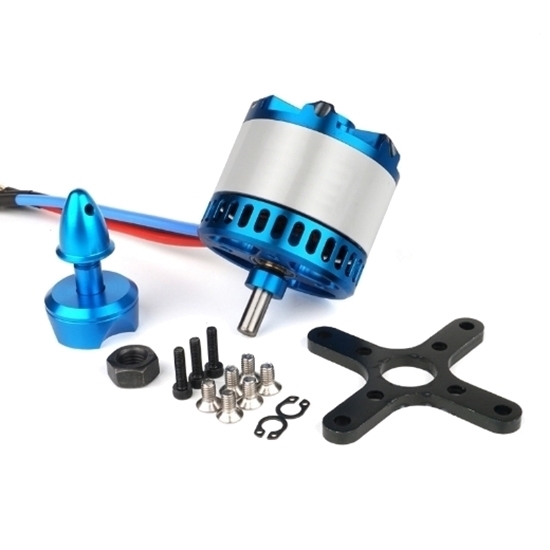

Cheap 480KV/550KV/650KV brushless motor features a 6mm shaft diameter, NSK precision bearings, and responsive and extremely smooth flight. 5~6S brushless motor mentions high power and high-speed design to provide longer running time for fixed wing drones.

Specifications

Model	RDDLZ-X4120-480	RDDLZ-X4120-550	RDDLZ-X4120-650
Motor KV	480KV	550KV	650KV
Number of Slots	12N14P
Shaft diameter	6mm
Motor Size	φ49.7*70.0mm
Shaft Diameter	3.175mm
Motor Silicone Wire Specifications	20AWG 110mm
Interphase Internal Resistance	22.5mΩ	18.5mΩ	11.7mΩ
Motor Weight	292g	293g	290g
Operating Rated Voltage (Lipo)	6S	6S	5-6S
No-Load Current	1.5A/10V	1.9A/10V	2.1A/10V
Maximum Continuous Power	2425W	2500W	2750W
Maximum Continuous Current	97A/30s	100A/30s	110A/30s
ESC Recommended	100A	100-120A	100-120A
Recommended Propeller Specifications	6S(EOLO158/1510/16*8)	6S(EOLO147/148/15	5S(EOLO158/1510)

Features

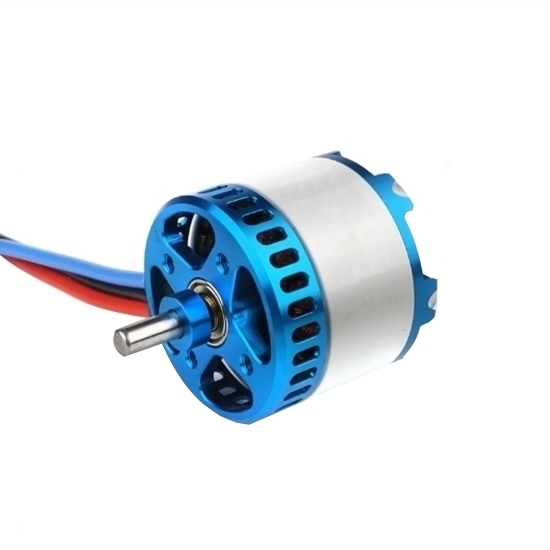

Each brushless drone motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High-precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.

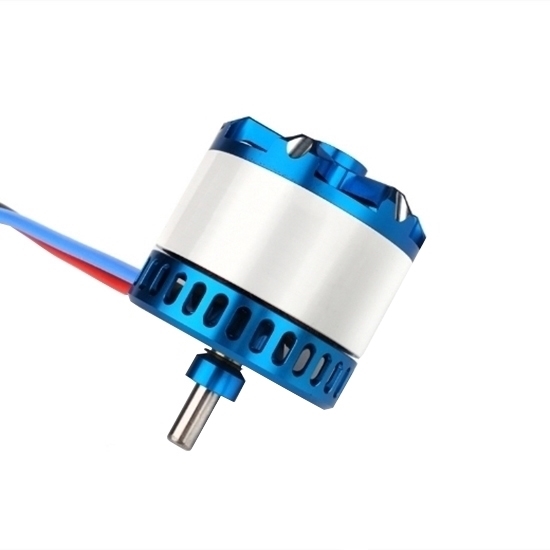

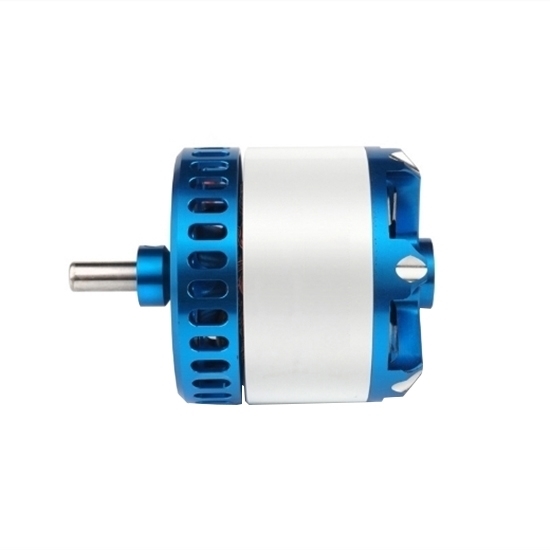

480KV/550KV/650KV brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.

Dimensions (Unit: mm)

Tips: How are drone motors controlled?

The ESC is responsible for controlling the speed of each motor, so the most common drone architectures involve using a dedicated ESC for each motor. All ESCs must be able to communicate with each other directly or indirectly through the flight controller in order to control the drone easily.
