1500KV Brushless Motor For Drone, 3S

0 reviews • Write a review

from

$76.89

Ex Tax: $76.89

Stock: In Stock
Model: RDDLZ-BDM-1500
Weight: 1.00
SKU: RDDLZ-BDM-1500

Available Options

Speed

Textarea

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

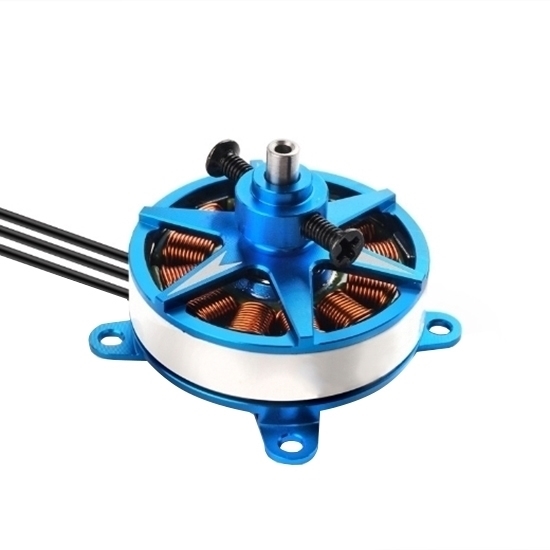

Lightweight 1500KV/1600KV brushless motor for fixed-wing drones. Shaft diameter 3mm, operating rated voltage (lipo) 2-3S, brushless drone motor adopts high-performance tile magnet to ensure efficient motor operation, making the flight more smooth and fast.

Specifications

Model	RDDLZ-X2302-1500	RDDLZ-X2302-1650
Motor KV	1500KV	1650KV
Interphase Internal Resistance	357mΩ	316mΩ
Motor Weight	15.7g	15.5g
No-Load Current	0.3A/10V	0.35A/10V
Maximum Continuous Power	80W	84W
Maximum Continuous Current	9.5A/30s	10A/30s
Recommended Propeller Specifications	GWS8043/GWS8060	GWS8043/GWS8060
Operating Rated Voltage (Lipo)	2~3S
Stator Diameter	3mm
Stator Thickness	12
Number of Slots	12N14P
Motor Size	φ28.0*20.5mm
Motor Silicone Wire Specifications	20AWG 50mm
ESC Recommended	10A

Features

Each brushless drone motor is made by strict dynamic balancing. Original NSK bearings for lower noise and smoother operation. High-precision CNC machined parts, and fine assembly process to achieve higher runout and concentricity standards.

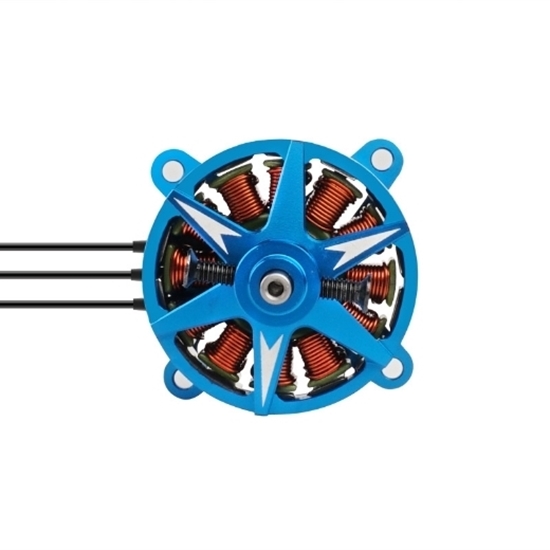

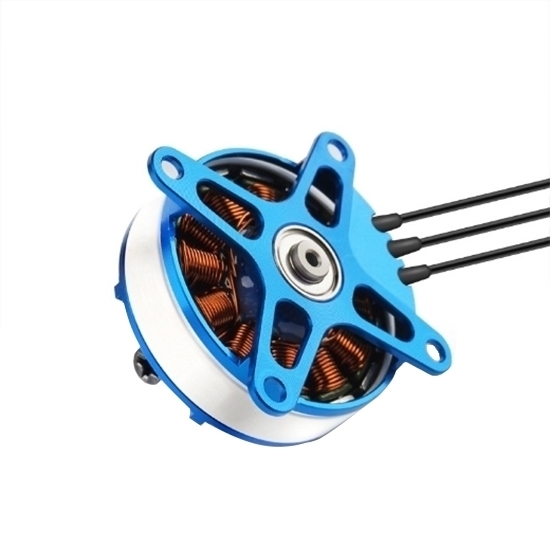

1500KV/1650KV brushless motor cool magic blue rotor end cap with six contours, strong and sturdy. High-quality white metallic paint with blue end caps for a more chic layered aesthetic. The stator end caps are hollowed out around the perimeter, which also increases the heat dissipation area for better heat dissipation.

Dimensions (Unit: mm)

Tips: How can I make your 300KV brushless drone motor stronger?

Install More Efficient Propellers. Propellers play a very crucial part when it comes to making a drone fly.
Upgrade Your Battery.
Practice Good Battery Care.
Remove Unnecessary Weight.
Install More Powerful Motors.
