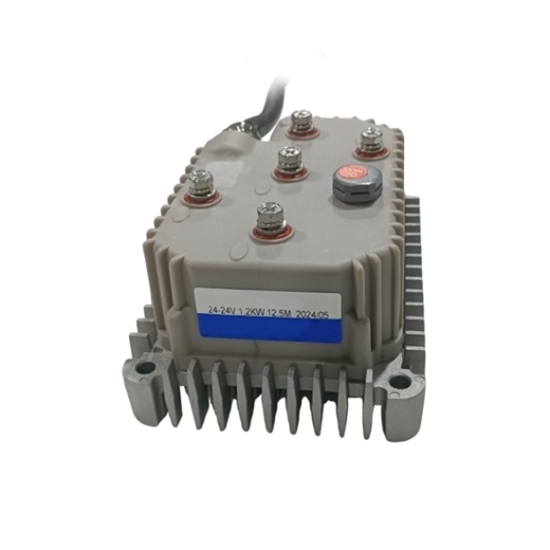

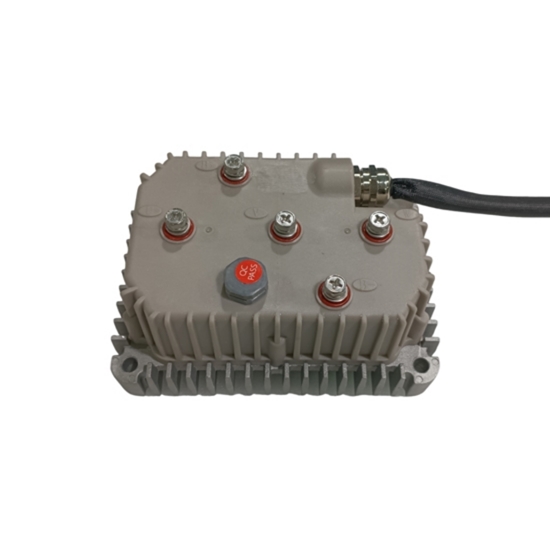

9V-32V Brushless DC Motor Controller For 12V/24V BLDC Motor

0 reviews • Write a review

from

$428.06

Ex Tax: $428.06

Stock: In Stock
Model: RDDLZ-KVD2412N
Weight: 1.00
SKU: RDDLZ-KVD2412N

Available Options

Short Description

Voltage (DC)

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Factory price brushless DC motor controller works at 9V to 32V operating voltage range to control speed for 12V/24V BLDC motor. High performance brushless DC motor driver, synchronous rectification, ultra-low drop, and fast PWM to achieve high efficiency.

Specifications

Model: RDDLZ-KVD2412N
Nominal Voltage: 12-24V
Max Operating Voltage: 9-32V
Peak Current**1 Minute: 140A
Continuous Current: 60A-100A
Frequency of Operation: 16.6KHz
Standby Battery Current: <0.5mA
5V or 12V Sensor Supply Current: 40mA
Supply Current: PWR, 30mA Typical
Configurable Battery Voltage Range: B+
Standard Throttle Input: 0-5 Volts (3-wire Resistive Pot), 1-4 Volts (Hall Active Throttle)
Throttle Input: 0-5 Volts, Can Use 3-wire Pot to Produce 0-5V Signal
Full Power Operating Temperature Range: 0℃ to 70℃ (MOSFET Temperature)
Operating Temperature Range: -40℃ to 100℃ (MOSFET Temperature)
Max Battery Current: Configurable

Tips: How to maintain this brushless DC motor controller?

There are no user-serviceable parts inside the controllers. Do not attempt to open the controller as this will void your warranty. However, periodic, exterior cleaning of the controller should be carried out.
The BLDC motor controller is a high-powered device. When working with any battery-powered vehicle, proper safety precautions should be taken that include, but are not limited to, proper training, wearing eye protection, and avoidance of loose clothing, hair and jewelry. Always use insulated tools.
