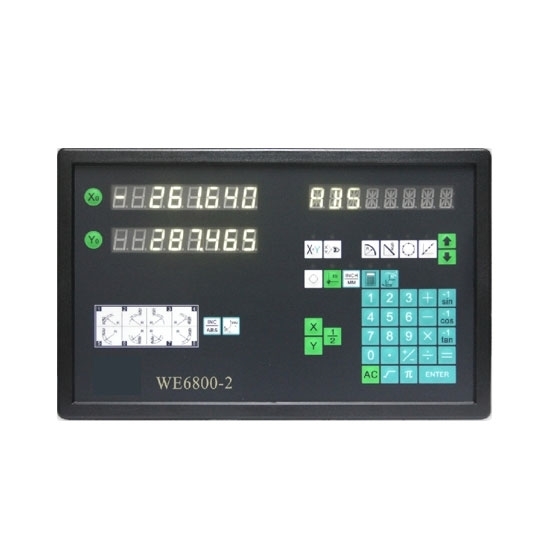

2 Axis Digital Readout, DRO For Mills, Lathes

0 reviews • Write a review

from

$249.86

Ex Tax: $249.86

Stock: In Stock
Model: RDDLZ-DR-WE68002
Weight: 1.00
SKU: RDDLZ-DR-WE68002

Available Options

Short Description

Qty

Add to Cart

Buy Now Question?

Add to Wish List Compare this Product

Shipping & Returns

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Additional Product Info

Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

2 axis digital display scale 0.1 um, 0.5 um, 5 um, 10um, 50um, for milling machine, lathes, and surface grinders. Avaliable length to 900mm, input signal TTL.
After purchasing a RDDLZ DRO digital readout, you can buy a linear scale for milling machine, lathes or table saw fence.

Features

1. Professional design of independent power supply, power supply anti-interference ability and signal anti-interference ability to achieve more than 2200V.
2. Quality and durable light touch button panel with sound prompt for key operation.
3. Without battery, it can remember the coordinate value of the position when the power is lost after power failure.
4. DRO digital readout can be connected to grating ruler or encoder, which can meet the processing test of all kinds of machine tools.
5. Wide voltage input range, input voltage AC90V-AC240V.

Specifications

Model				RDDLZ-DR-WE68002
Axis number				2 Axis
Resolution				0.05μm, 0.1μm, 0.2μm, 0.5μm, 1μm, 2μm, 5μm, 10μm, 20μm, 50μm
Input Signal				TTL, Frequency < 2MHZ, Current > 1mA
Input Voltage Range				90 VAC-240V AC
Power				Less than 15W
Max Measuring Length				900mm
Frequency				50 Hz - 60 Hz
Anti Interference Capability				Over 2200V
Dimension				296mm x 184mm x 44mm

Dimension (unit: mm)
